Winslow 1.27 mm Pitch 32 Way Through Hole PLCC IC Socket
- RS Stock No.:
- 378-9778
- Mfr. Part No.:
- WPLCC032-1PTRC
- Brand:
- Winslow

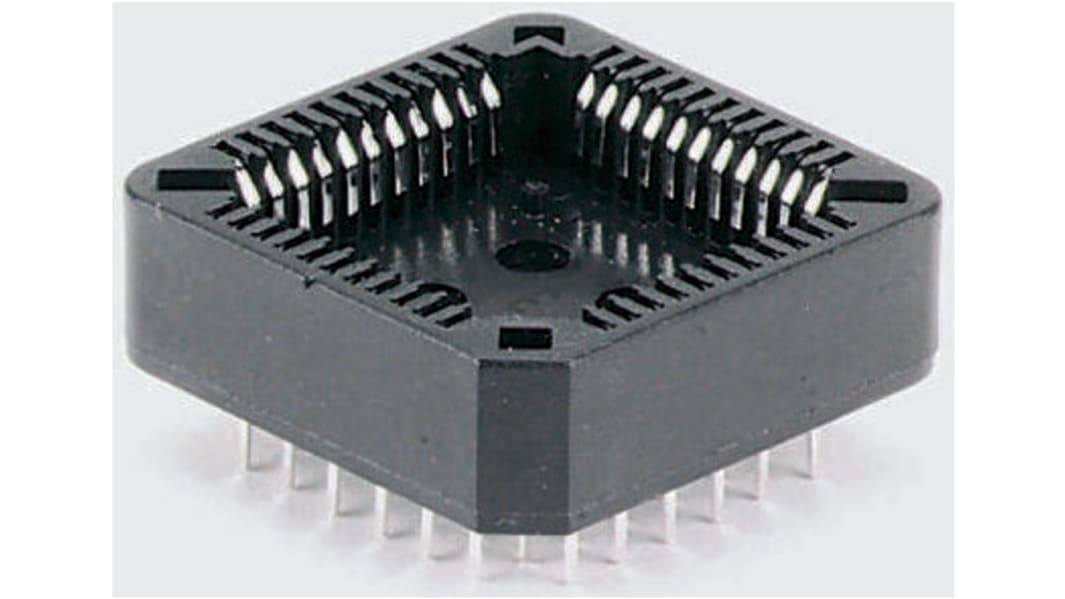

Image representative of range
Bulk discount available
Subtotal (1 tube of 28 units)*
£38.22
(exc. VAT)
£45.864
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 168 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 28 - 672 | £1.365 | £38.22 |
| 700 - 2072 | £1.228 | £34.38 |
| 2100 - 5572 | £1.092 | £30.58 |
| 5600 - 11172 | £0.955 | £26.74 |
| 11200 + | £0.887 | £24.84 |
*price indicative
- RS Stock No.:
- 378-9778
- Mfr. Part No.:
- WPLCC032-1PTRC
- Brand:
- Winslow
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Product Type | IC Socket | |
| IC Socket Type | PLCC Socket | |
| Current | 1A | |
| Number of Contacts | 32 | |
| Pitch | 1.27mm | |
| Voltage | 100.0 V, 150.0 V | |
| Orientation | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin over Copper | |
| Termination Type | Solder | |
| Socket Mount Type | Through Hole | |
| Device Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand Winslow | ||
Product Type IC Socket | ||
IC Socket Type PLCC Socket | ||
Current 1A | ||
Number of Contacts 32 | ||
Pitch 1.27mm | ||
Voltage 100.0 V, 150.0 V | ||
Orientation Straight | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin over Copper | ||
Termination Type Solder | ||
Socket Mount Type Through Hole | ||
Device Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
- COO (Country of Origin):
- TW
Through Hole Mount
Plastic leaded chip carrier (PLCC) sockets with through hole solder tails
2.54mm grid matching JEDEC patterns
Stand - offs aid cleaning and heat dissipation
Suitable extraction tool (stock no. 480-3005)
Insulation material: Glass filled polyester
Insulation resistance 1000MΩ
Temperature range -50 to +105°C
IC Sockets-PLCC Adaptics Sockets
(mΩ)
Note
*Height above PCB
