RS PRO 1.27 mm Pitch 68 Way Surface Mount Through Hole PLCC IC Socket
- RS Stock No.:
- 183-1582
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 tube of 19 units)*
£12.217
(exc. VAT)
£14.668
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 323 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 19 - 76 | £0.643 | £12.22 |
| 95 - 171 | £0.619 | £11.76 |
| 190 - 266 | £0.597 | £11.34 |
| 285 - 361 | £0.576 | £10.94 |
| 380 + | £0.557 | £10.58 |
*price indicative
- RS Stock No.:
- 183-1582
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Package Type | Surface Mount | |
| IC Socket Type | PLCC Socket | |
| Product Type | IC Socket | |
| Current | 1A | |
| Number of Contacts | 68 | |
| Voltage | 100.0 V | |
| Pitch | 1.27mm | |
| Orientation | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin over Nickel | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Socket Mount Type | Through Hole | |
| Device Mount Type | Surface | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Package Type Surface Mount | ||
IC Socket Type PLCC Socket | ||
Product Type IC Socket | ||
Current 1A | ||
Number of Contacts 68 | ||
Voltage 100.0 V | ||
Pitch 1.27mm | ||
Orientation Straight | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin over Nickel | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Socket Mount Type Through Hole | ||
Device Mount Type Surface | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
- COO (Country of Origin):
- CN

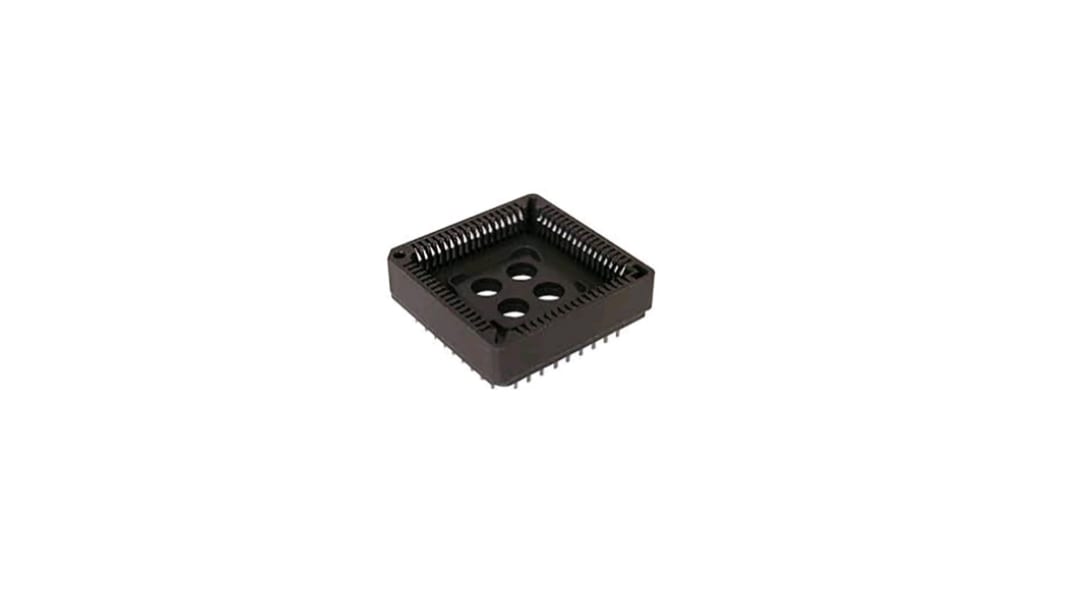

RS PRO PLCC Socket
The RS PRO SMT PLCC series socket is a low profile, thin wall socket designed to convert plastic leaded chips to a thru-hole PCB format on a 100in centreline grid. It conforms to JEDEC MS 016 and MS 018 pin count standards. The socket has a voltage rating of 100VAC and a current rating of 1A. The superior precision-stamped contact design of socket provides consistent, high retention contacts for all size chips.
Features and Benefits
• Compatible with wide range of chip sizes
• Contact plating of tin over Nickel
• Contacts material is Phosphor Bronze
• Full range of sizes from 20P to 100P
• Hi Temperature PPS insulator
• Maximum current resistance of 15mohm
• Minimum insulation resistance of 1,000Mohm
• No solder wicking design
• Open frame design for viewable solder joints
• Operating temperature ranges between -55°C and 105°C
Certifications
• UL94V-0
