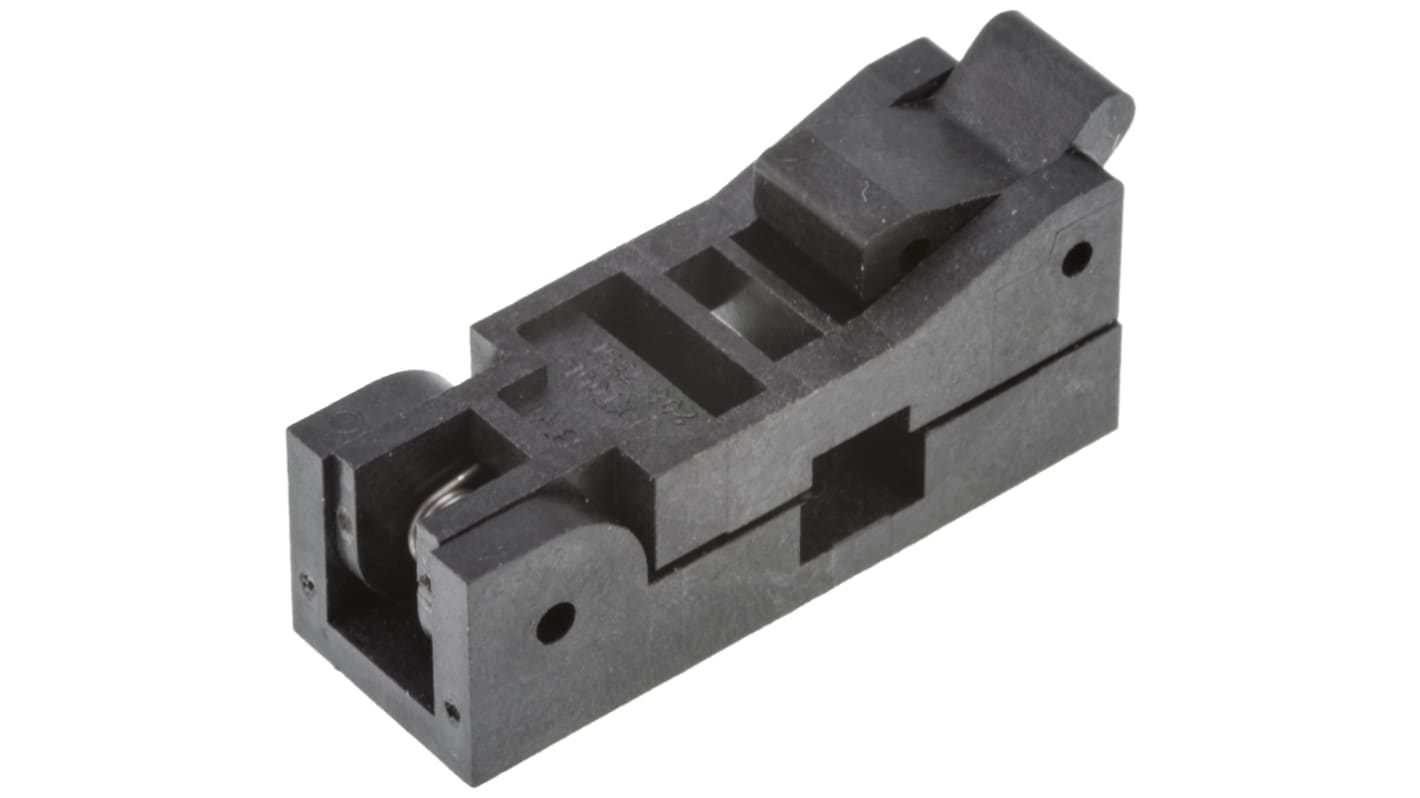

3M 1.27mm Pitch 8 Way Through Hole SOIC Test Sockets
- RS Stock No.:
- 766-980
- Mfr. Part No.:
- 208-7391-55-1902
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£27.79
(exc. VAT)
£33.35
(inc. VAT)
- RS Stock No.:
- 766-980
- Mfr. Part No.:
- 208-7391-55-1902
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Package Type | SOIC | |
| Gender | Female | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Body Orientation | Straight | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 1A | |
| Socket Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Housing Material | PSU | |
Select all | ||
|---|---|---|
Brand 3M | ||
Package Type SOIC | ||
Gender Female | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Body Orientation Straight | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Current Rating 1A | ||
Socket Mounting Type Through Hole | ||
Termination Method Solder | ||
Housing Material PSU | ||
- COO (Country of Origin):
- JP
3M Textool™ SOIC Test & Burn-In Sockets
Textool™ test & burn-in SOIC sockets with a compact envelope design and side to side stackability to maximise board density. The lid of these Textool™ test & burn-in SOIC sockets applies 80 gram normal force per lead for maximum electrical reliability, can be actuated from the front or top and is compatible with automated load and unload equipment. A tweezer slot feature enables easy manual loading and unloading. These Textool™ test & burn-in SOIC sockets accept Gull Wing JEDEC device sizes with a 3.81mm or 7.62mm body width.
