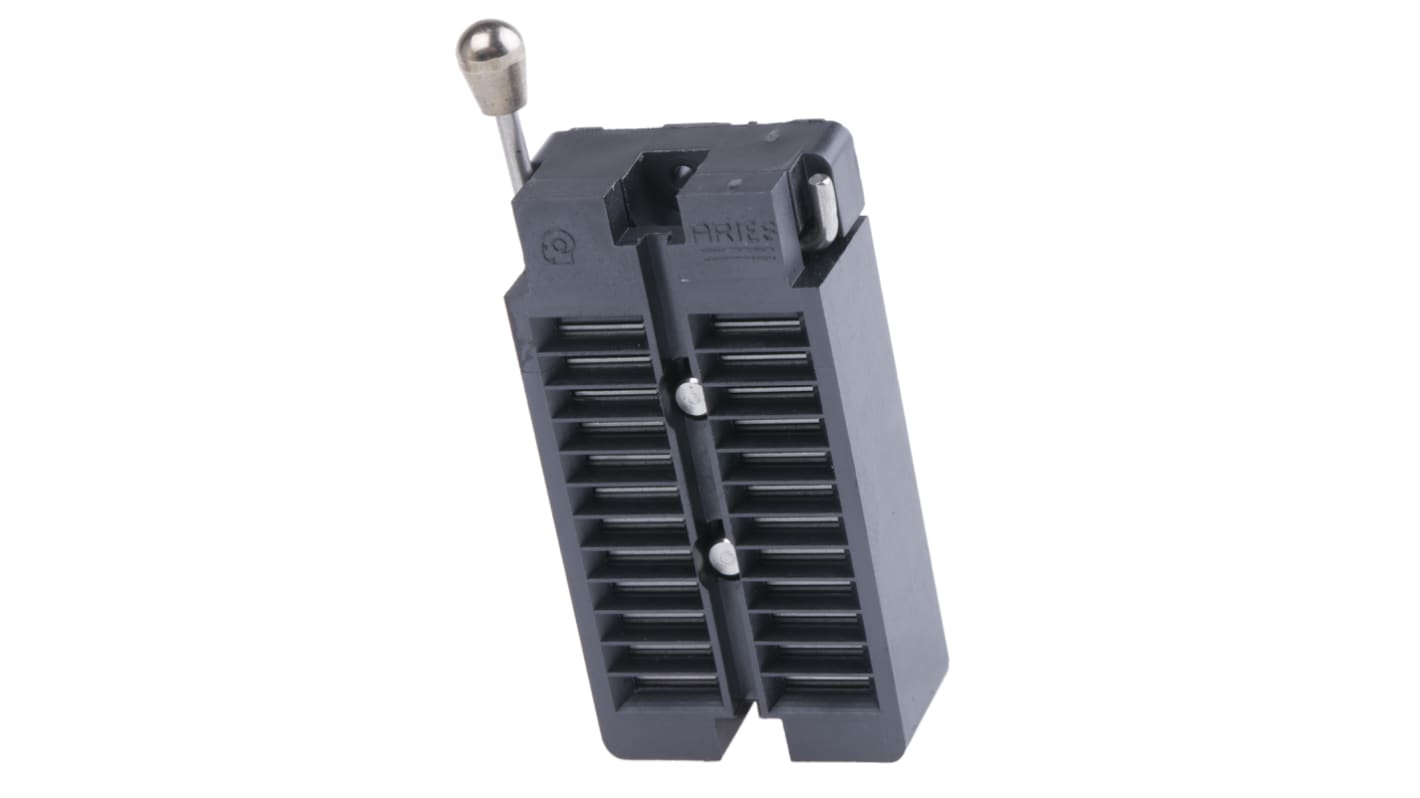

Aries Electronics 2.54 mm Pitch 24 Way DIP Through Hole Test IC Socket
- RS Stock No.:
- 403-819
- Mfr. Part No.:
- 24-6554-10
- Brand:
- Aries Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£24.64
(exc. VAT)
£29.57
(inc. VAT)
- RS Stock No.:
- 403-819
- Mfr. Part No.:
- 24-6554-10
- Brand:
- Aries Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aries Electronics | |
| Product Type | IC Socket | |
| Package Type | DIP | |
| IC Socket Type | Test Socket | |
| Current | 1A | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Voltage | 1kV | |
| Orientation | Straight | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Tin over Nickel | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 15.24mm | |
| Socket Mount Type | Through Hole | |
| Termination Type | Solder | |
| Device Mount Type | Through Hole | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Series | 55 | |
| Housing Material | Polyphenylene Sulphide | |
| Select all | ||
|---|---|---|
Brand Aries Electronics | ||
Product Type IC Socket | ||
Package Type DIP | ||
IC Socket Type Test Socket | ||
Current 1A | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Voltage 1kV | ||
Orientation Straight | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Tin over Nickel | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 15.24mm | ||
Socket Mount Type Through Hole | ||
Termination Type Solder | ||
Device Mount Type Through Hole | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Series 55 | ||
Housing Material Polyphenylene Sulphide | ||
- COO (Country of Origin):
- US
Universal ZIF Socket
A universal socket which will accept devices of either 0.3, 0.4, or 0.6 inch wide, on 0.1 inch pitch, with a pin width of 0.015 to 0.045 inch.
Solder tail pin style
Breakdown voltage: 1000Vac minimum
Life: 25000 cycles
Temperature range -55 to +105°C
