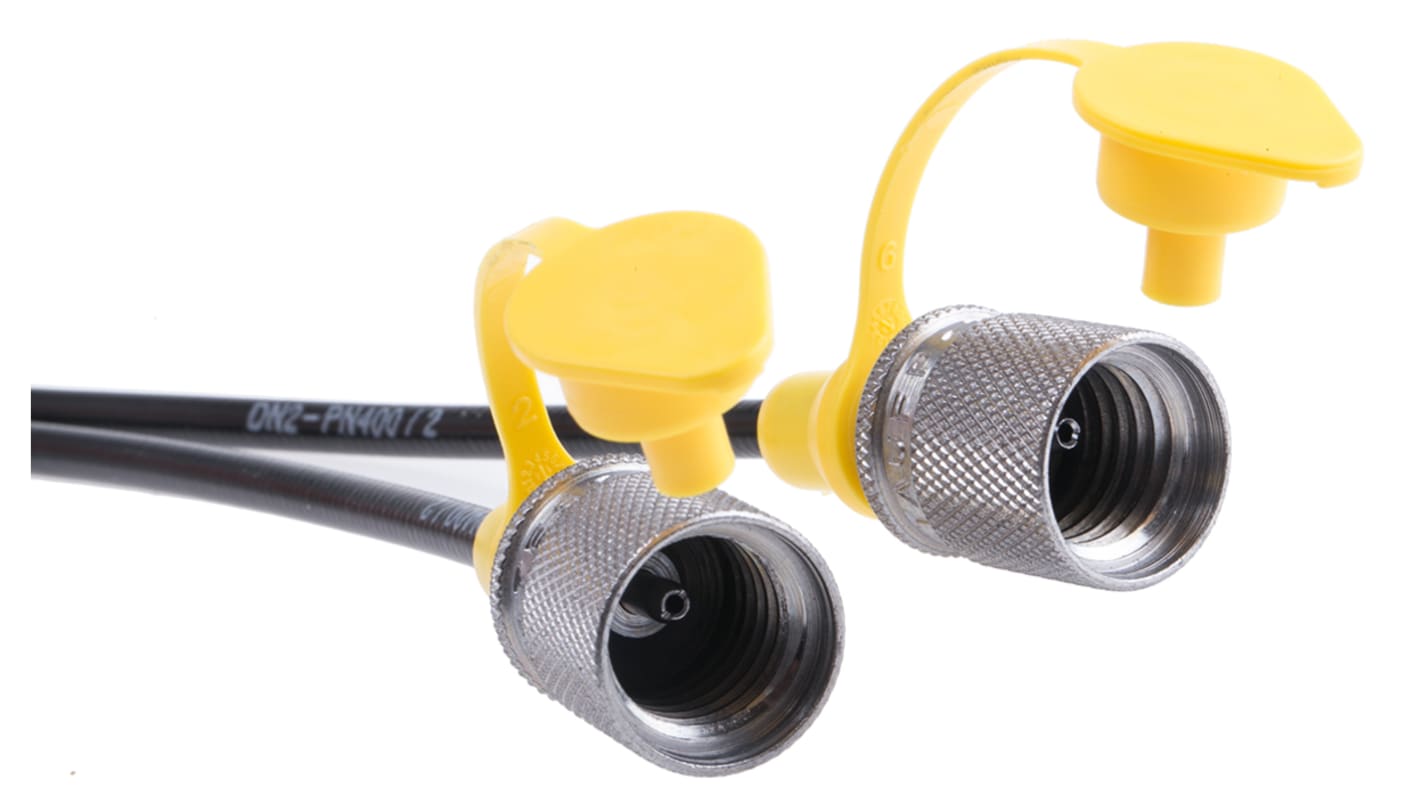

Stauff Hydraulic Test Point Hose SMS 20 2000A Threaded Threaded
- RS Stock No.:
- 432-5634
- Mfr. Part No.:
- SMS 20 2000A
- Brand:
- Stauff
Subtotal (1 unit)*
£26.78
(exc. VAT)
£32.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 58 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.78 |
*price indicative
- RS Stock No.:
- 432-5634
- Mfr. Part No.:
- SMS 20 2000A
- Brand:
- Stauff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Stauff | |
| Product Type | Hydraulic Test Point Hose | |
| Connection Standard A | Metric | |
| Connection Type A | Threaded | |
| Length | 2m | |
| Connection Gender A | Male | |
| Connection Size A | M16 x 1/4 | |
| Connection Size B | M16 | |
| Connection Gender B | Male | |
| Connection Standard B | Metric | |
| Maximum Operating Pressure | 400 bar | |
| Connection Type B | Threaded | |
| Hose Outside Diameter | 5mm | |
| Cover Material | Galvanised Steel Wire | |
| Burst Pressure | 1100bar | |
| Reinforcing Material | Synthetic Fibre | |
| Minimum Bend Radius | 20mm | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 100°C | |
| Series | SMS | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Stauff | ||
Product Type Hydraulic Test Point Hose | ||
Connection Standard A Metric | ||
Connection Type A Threaded | ||
Length 2m | ||
Connection Gender A Male | ||
Connection Size A M16 x 1/4 | ||
Connection Size B M16 | ||
Connection Gender B Male | ||
Connection Standard B Metric | ||
Maximum Operating Pressure 400 bar | ||
Connection Type B Threaded | ||
Hose Outside Diameter 5mm | ||
Cover Material Galvanised Steel Wire | ||
Burst Pressure 1100bar | ||
Reinforcing Material Synthetic Fibre | ||
Minimum Bend Radius 20mm | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 100°C | ||
Series SMS | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Test Hose SMS
Gauge adaptor and test hose allow remote monitoring of hydraulic systems
Burst pressure 1100 bar
5mm hose outside diameter
Minimum bend radius 20mm
Pressure/temperature factor 122% (to 0°C), 110% (at 30°C), 100% (at 50°C), 86% (at 80°C), 77% (at 100°C)
Note
For measuring with liquid pressure media, bleed before connecting tube. Protect from fire, sharp corners and hot objects.
