Stauff Hydraulic Test Point Hose SMS-20-1000-B-W3 Threaded Threaded
- RS Stock No.:
- 296-382
- Mfr. Part No.:
- SMS-20-1000-B-W3
- Brand:
- Stauff
Subtotal (1 unit)*
£29.17
(exc. VAT)
£35.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 13 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.17 |
*price indicative
- RS Stock No.:
- 296-382
- Mfr. Part No.:
- SMS-20-1000-B-W3
- Brand:
- Stauff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Stauff | |
| Product Type | Hydraulic Test Point Hose | |
| Connection Gender A | Male | |
| Length | 1m | |
| Connection Type A | Threaded | |
| Connection Standard A | Metric | |
| Connection Size A | M16 x 2 | |
| Connection Gender B | Male | |
| Connection Type B | Threaded | |
| Connection Standard B | Metric | |
| Connection Size B | M16 x 2 | |
| Maximum Operating Pressure | 630 bar | |
| Maximum Operating Temperature | 200°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | ISO 15171-2 | |
| Series | STAUFF Test 20 | |
| Select all | ||
|---|---|---|
Brand Stauff | ||
Product Type Hydraulic Test Point Hose | ||
Connection Gender A Male | ||
Length 1m | ||
Connection Type A Threaded | ||
Connection Standard A Metric | ||
Connection Size A M16 x 2 | ||
Connection Gender B Male | ||
Connection Type B Threaded | ||
Connection Standard B Metric | ||
Connection Size B M16 x 2 | ||
Maximum Operating Pressure 630 bar | ||
Maximum Operating Temperature 200°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals ISO 15171-2 | ||
Series STAUFF Test 20 | ||
- COO (Country of Origin):
- DE

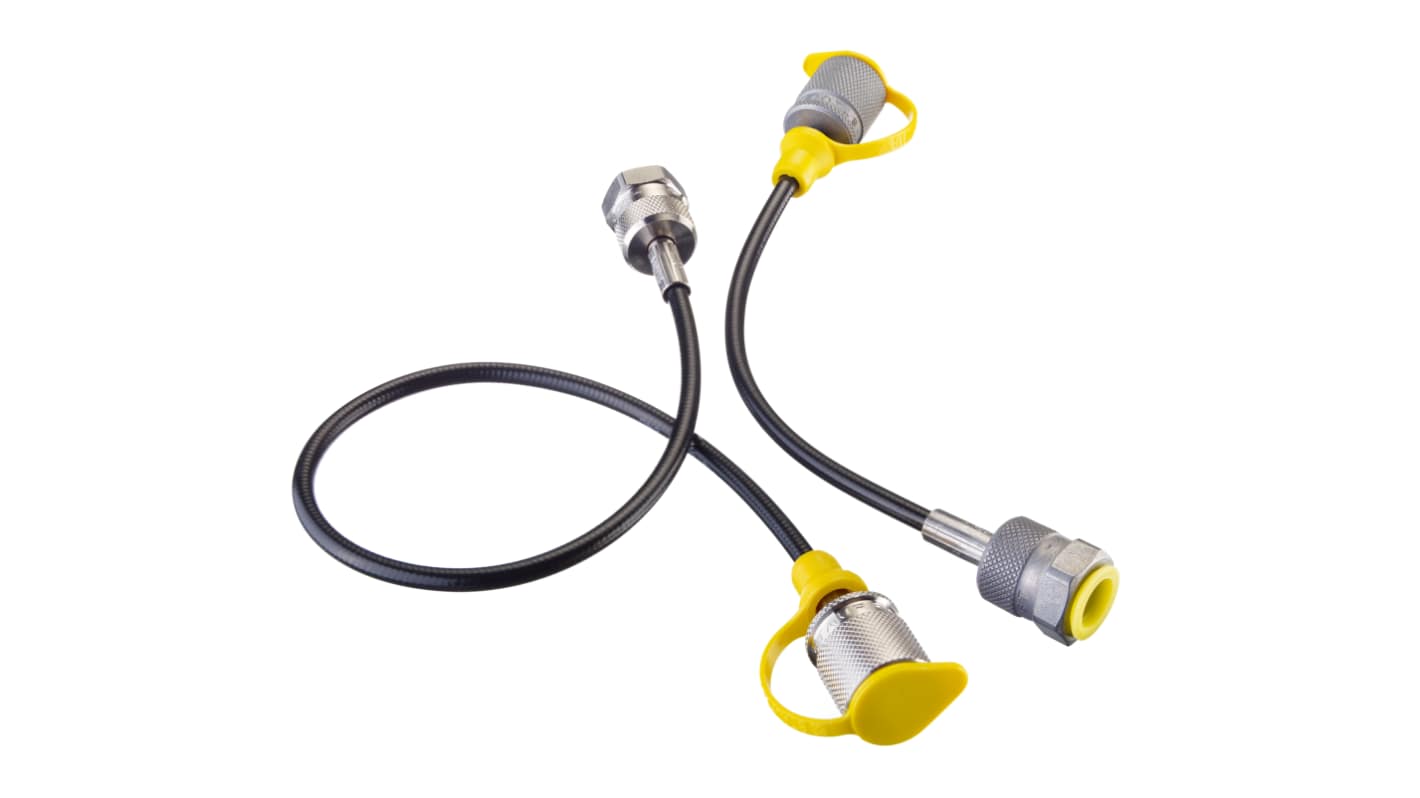

The Stauff Test hose DN2 for fluid media, 1000 mm in length, featuring Stauff Test 20 M16x2 fittings. The second end is equipped with a M16x2 threaded connection, ideal for pressure testing and fluid system applications.
Standard hose end material is Steel
Synthetic Fibre
