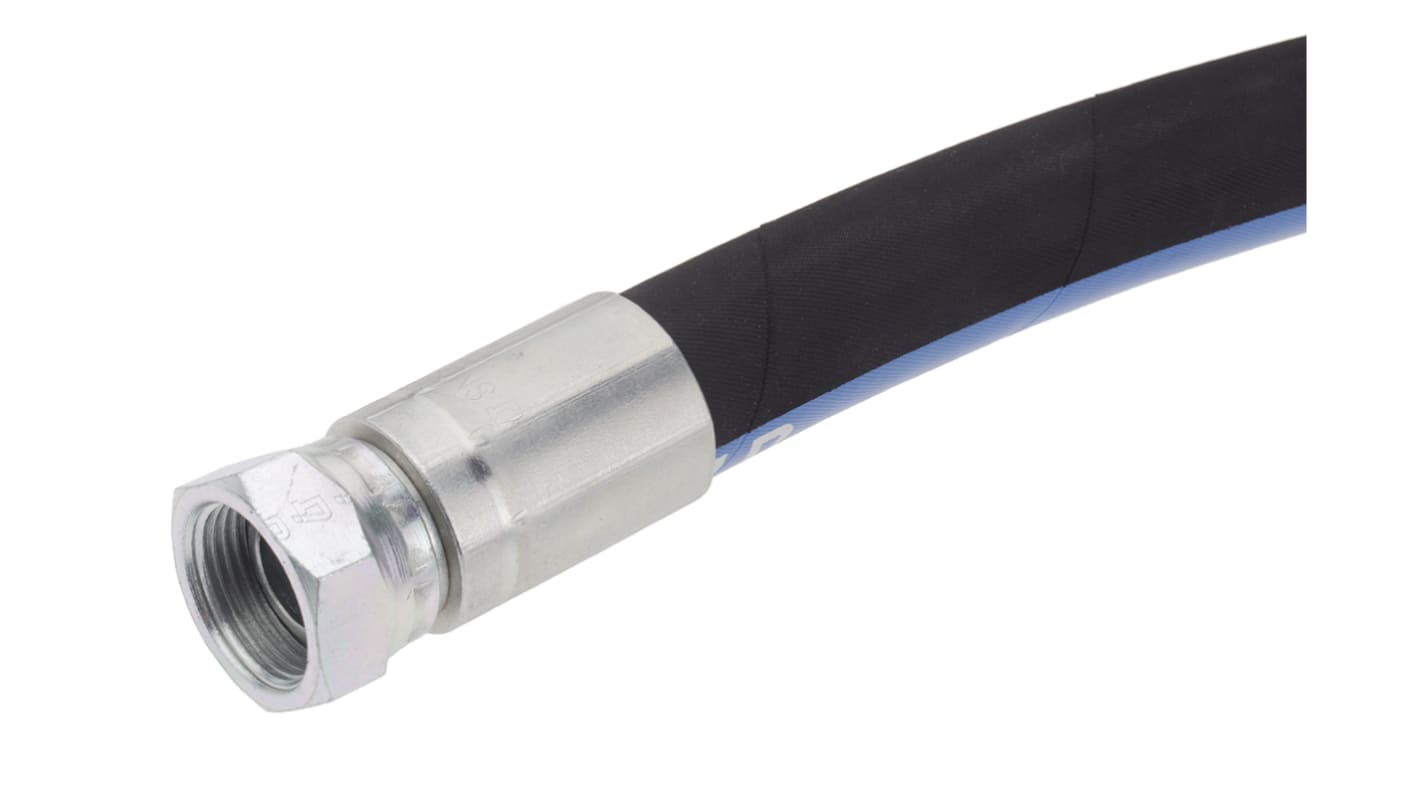

RS PRO 1.95m Synthetic Rubber Hydraulic Hose Assembly, 215 bar Max Pressure

RS Stock No.:: 110-2240
Brand:: RS PRO

RS PRO 1.95m Synthetic Rubber Hydraulic Hose Assembly, 215 bar Max Pressure

Subtotal (1 unit)*

£68.28

(exc. VAT)

£81.94

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£68.28

*price indicative

RS Stock No.:: 110-2240
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Hydraulic Hose Assembly
	Connection Standard A	G
	Connection Size A	3/4 in
	Connection Gender A	Female
	Connection Type A	Threaded
	Overall Length	1.95m
	Connection Type B	Threaded
	Connection Size B	3/4 in
	Connection Gender B	Female
	Connection Standard B	G
	Inside Diameter	19.05mm
	Maximum Operating Pressure	215 bar
	Inner Hose Material	Synthetic Rubber
	Reinforcing Material	Steel
	Cover Material	Synthetic Rubber
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Standards/Approvals	RoHS

	Select all
	Brand RS PRO
	Product Type Hydraulic Hose Assembly
	Connection Standard A G
	Connection Size A 3/4 in
	Connection Gender A Female
	Connection Type A Threaded
	Overall Length 1.95m
	Connection Type B Threaded
	Connection Size B 3/4 in
	Connection Gender B Female
	Connection Standard B G
	Inside Diameter 19.05mm
	Maximum Operating Pressure 215 bar
	Inner Hose Material Synthetic Rubber
	Reinforcing Material Steel
	Cover Material Synthetic Rubber
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Standards/Approvals RoHS

COO (Country of Origin):: IT

Straight - 90° Elbow Hose Assembly

High-quality flexible hydraulic hose assemblies with crimped end fittings. Each assembly features one piece end fitting (which eliminates an incorrectly matched insert and sleeve) and matching hoses.

Hoses are synthetic rubber tube with synthetic rubber outer covering and high tensile steel wire reinforcing. Fittings are zinc plated mild steel.

Applications

Applications include medium pressure service with petroleum base hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oils, air and water

Note

These assemblies are not suitable for use with our range of high pressure hydraulic cylinders and pumps which have working pressures to 700 bar. They are outside the terms of our BS 5750 Part 2 stockist of assessed capability level B registration. Pin prick cover for air or gas applications above 17 bar (250 psi).

Warning

Flexible hose assemblies are capable of transmitting fluids at high pressures. Careful attention should be given to application, material & technical specifications.
