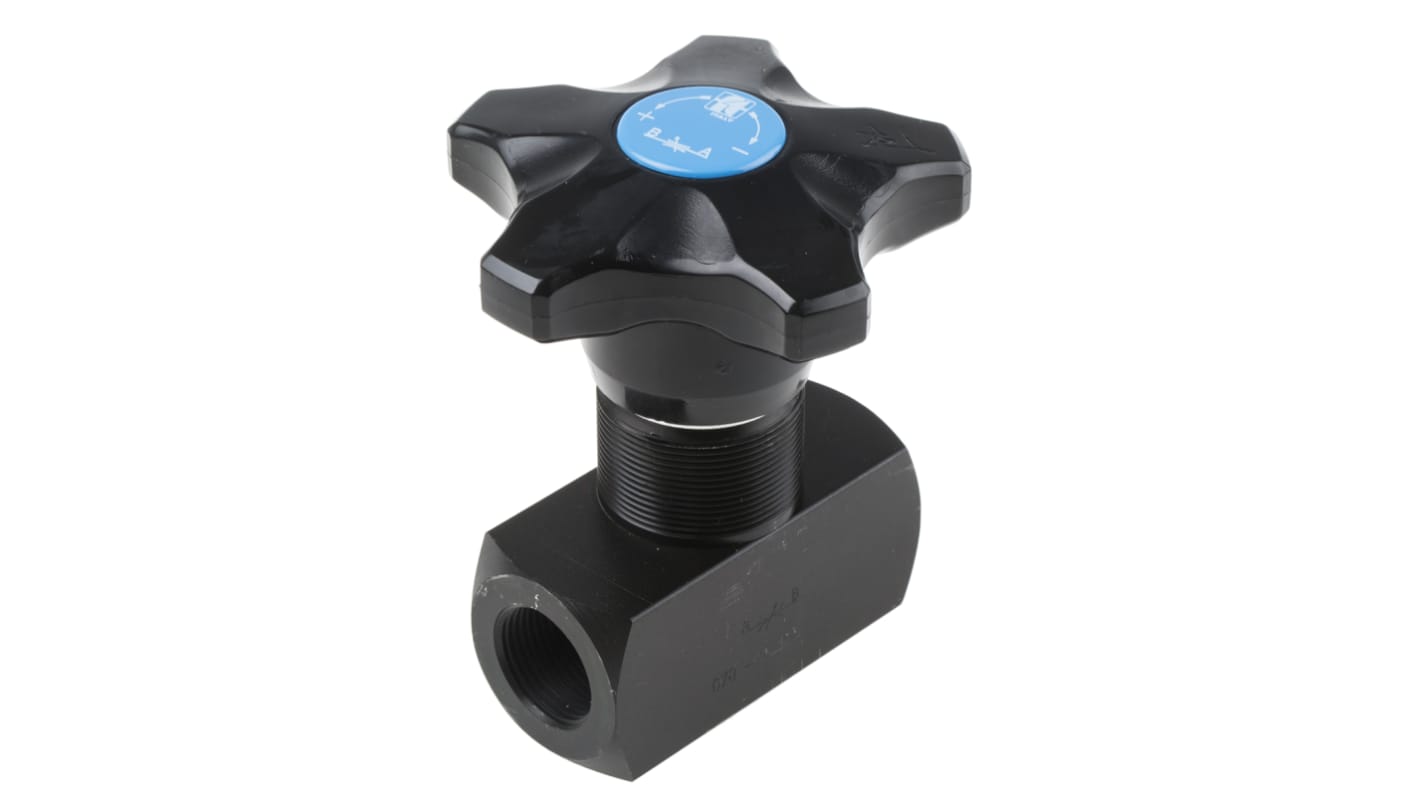

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 3/4, 400bar, 80L/min
- RS Stock No.:
- 390-7702
- Brand:
- RS PRO
Subtotal (1 unit)*
£174.29
(exc. VAT)
£209.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £174.29 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£130.56
(exc. VAT)
£156.67
(inc. VAT)
- RS Stock No.:
- 390-7702
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Connection Port Thread | G 3/4 | |
Maximum Flow Rate | 80L/min | |
Thread Size | 3/4in | |
Maximum Operating Pressure | 400bar | |
Body Material | Steel | |
Seal Material | Nitrile Rubber | |
Thread Standard | G | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -20°C | |
Mounting Type | Inline | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Connection Port Thread G 3/4 | ||
Maximum Flow Rate 80L/min | ||
Thread Size 3/4in | ||
Maximum Operating Pressure 400bar | ||
Body Material Steel | ||
Seal Material Nitrile Rubber | ||
Thread Standard G | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Inline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Double Acting Needle Valves
Allows flow in both directions.
Needle adjustment for full shut off or accurate control for a wide range of flow rates
A graduated adjustable scale below the handle to indicate valve position
Locking screw prevents movement accidental or due to vibration
Nitrile rubber seals
A graduated adjustable scale below the handle to indicate valve position
Locking screw prevents movement accidental or due to vibration
Nitrile rubber seals
Flow Control Valves
Single acting and double acting in-line flow control valves. Single acting valves allow flow control in one direction and free flow in the opposite direction. Double acting valves allow flow control in both directions.
