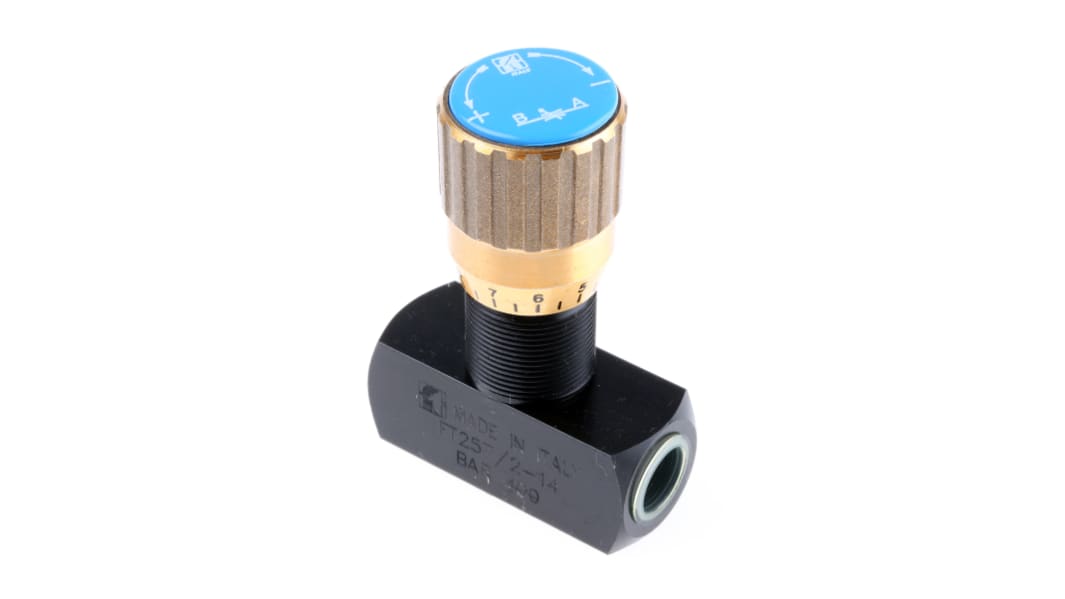

RS PRO In Line Mount Mounting Hydraulic Flow Control Valve, G, 400 bar, 25 L/min

View this category

Subtotal (1 unit)*

£72.59

(exc. VAT)

£87.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 25 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£72.59

*price indicative

RS Stock No.:
390-7673
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Connection Thread Standard

G

Product Type

Hydraulic Flow Control Valve

Maximum Flow Rate

25L/min

Port Type

Type G

Port Size

1/4 in

Maximum Operating Pressure

400 bar

Series

FT257

Body Material

Carbon Steel

Seal Material

Nitrile Rubber (NBR)

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

100°C

Mount Type

In Line Mount

Standards/Approvals

No

Thread Size

1/4 in

RoHS Status: Exempt

Double Acting Needle Valves


Allows flow in both directions.

Needle adjustment for full shut off or accurate control for a wide range of flow rates

A graduated adjustable scale below the handle to indicate valve position

Locking screw prevents movement accidental or due to vibration

Nitrile rubber seals

Flow Control Valves


Single acting and double acting in-line flow control valves. Single acting valves allow flow control in one direction and free flow in the opposite direction. Double acting valves allow flow control in both directions.
