RS PRO Hose Pipe, EPDM, NBR, 6.3mm ID, 13.3mm OD, Orange, 25m
- RS Stock No.:
- 146-7751
- Brand:
- RS PRO
4 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£84.30
(exc. VAT)
£101.16
(inc. VAT)
| Units | Per unit |
| 1 + | £84.30 |
- RS Stock No.:
- 146-7751
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DK
Product Details

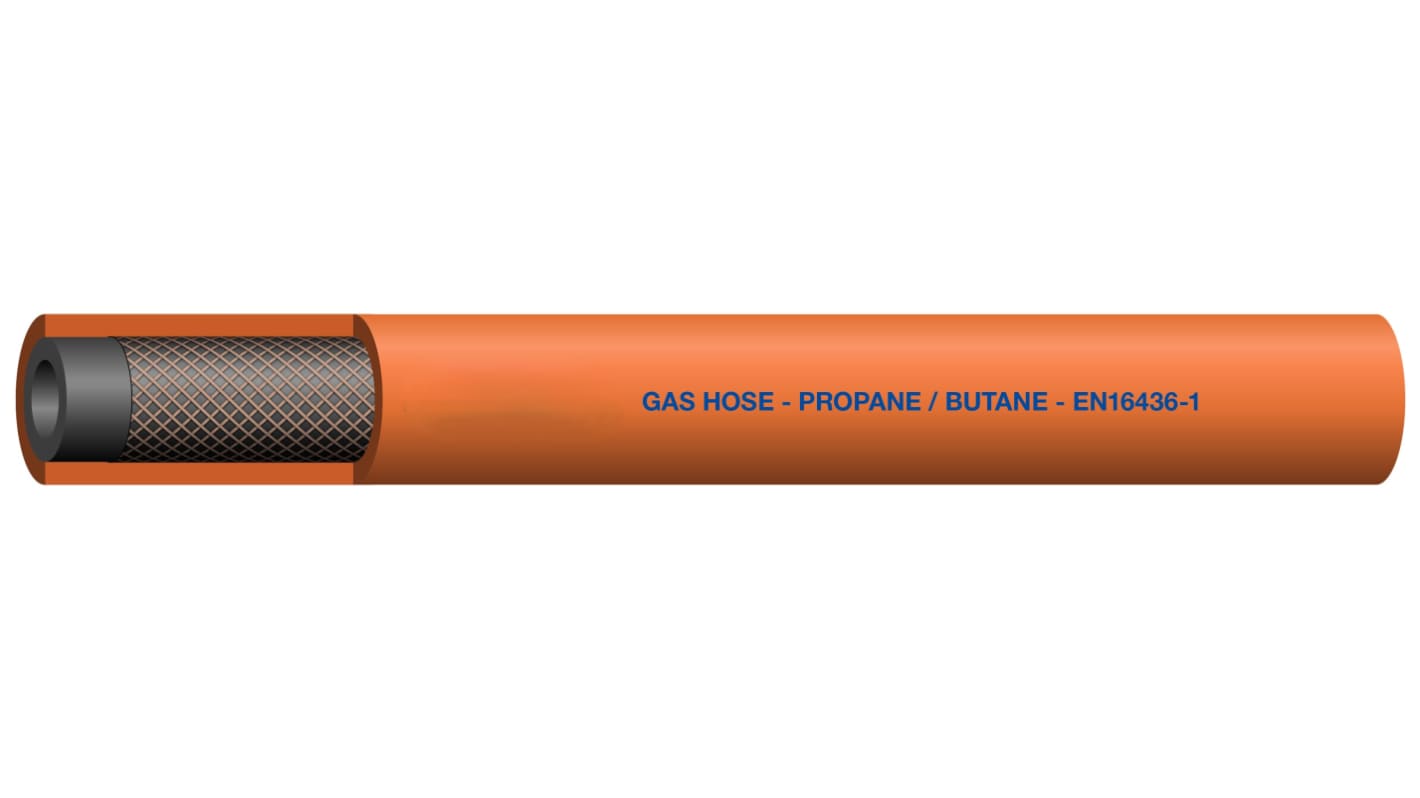

Flexible, smooth, orange hose for liquefied petroleum gas (LPG),propane/butane, to EN 16436-1 Class 2. The hose is primarily for reassemblies of LPG applications. For use with barbecues, patio heaters, ravan installations and weed burners. The hose is DG-approved for sizes 6. 3 - 10. 0.The European Committee For Standardization has introduced new standards for LPG hoses: EN16436-1 2014
Specifications
Attribute | Value |
|---|---|
| Hose Pipe/Flexible Tube | Hose Pipe |
| Inner Diameter | 6.3mm |
| Outer Diameter | 13.3mm |
| Material | EPDM, NBR |
| Hose Pipe Action | Transfer |
| Maximum Working Pressure | 10 bar |
| Suitable Applications | Gas |
| Standards Met | EN 16436-1 |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
| Colour | Orange |
| Length | 25m |
| Inner Material | NBR |
| Reinforced | Yes |
| Outer Material | EPDM |
| Flexible | Yes |
| Bend Radius | 40mm |
