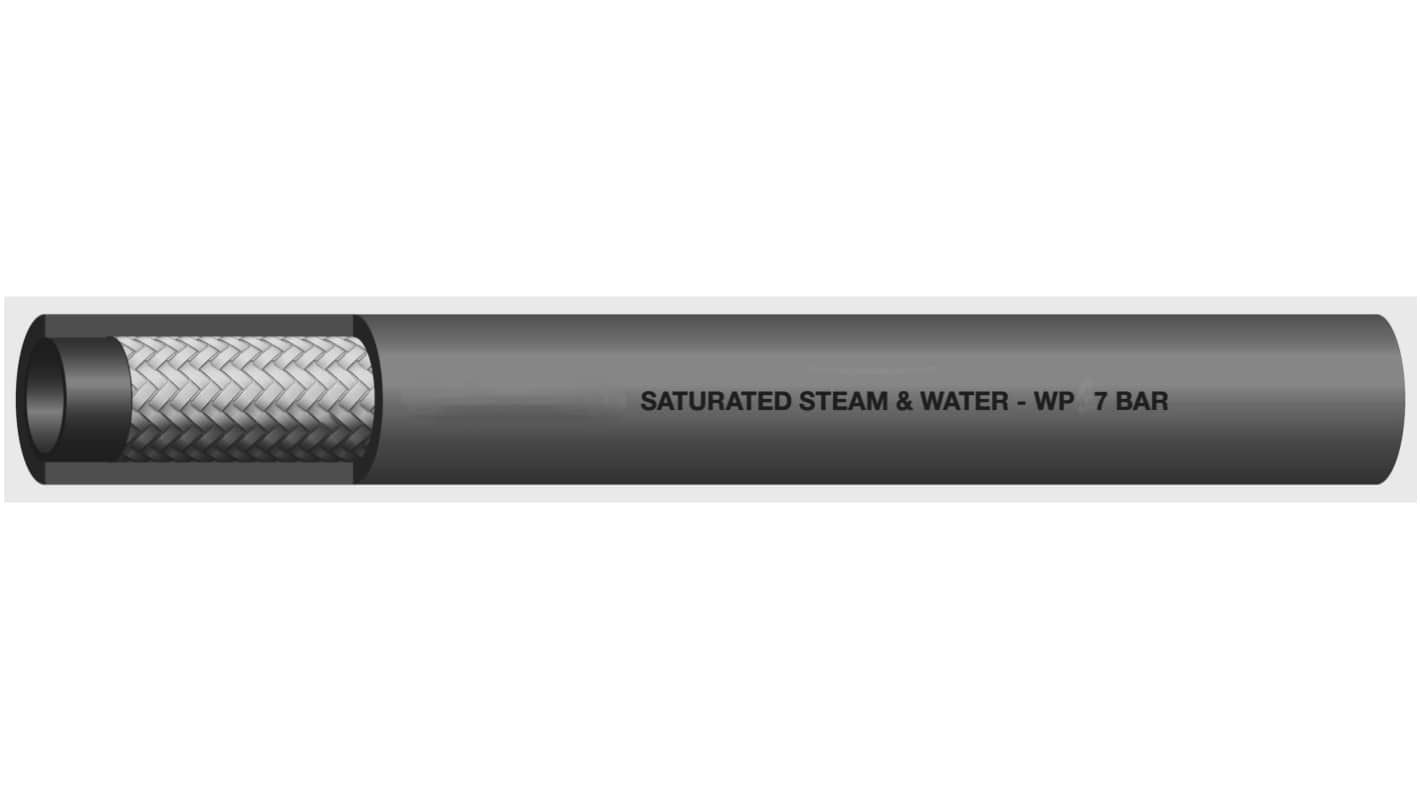

RS PRO Hose Pipe, EPDM, 19mm ID, 32mm OD, Black, 20m
- RS Stock No.:
- 486-530
- Brand:
- RS PRO
4 In stock - FREE next working day delivery available
Added
Price Each
£319.41
(exc. VAT)
£383.29
(inc. VAT)
| Units | Per unit |
| 1 + | £319.41 |
- RS Stock No.:
- 486-530
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DK
Product Details
Steam Hose 7 Bar 1161
Black wrapped hose designed for low pressure steam and hot water.
Steam Hose (7 bar)
Polyester reinforced
Black/white line outside and Black inside
Not antistatic
Polyester reinforced
Black/white line outside and Black inside
Not antistatic
Note
EPDM = Ethylene Propylene Diene Monomer
The given working pressure and safety factor are true for the conveyance of steam. For water, the working pressure is 33bar and safety factor is 3.15:1.
The given working pressure and safety factor are true for the conveyance of steam. For water, the working pressure is 33bar and safety factor is 3.15:1.
Warning
When used for steam it is recommended that one hose end remains open
Specifications
Attribute | Value |
|---|---|
| Hose Pipe/Flexible Tube | Hose Pipe |
| Inner Diameter | 19mm |
| Outer Diameter | 32mm |
| Material | EPDM |
| Hose Pipe Action | Transfer |
| Maximum Working Pressure | 7 bar |
| Suitable Applications | Steam |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +170°C |
| Colour | Black |
| Length | 20m |
| Bend Radius | 250mm |
| Inner Material | EPDM |
| Outer Material | EPDM |
| Reinforced | Yes |
