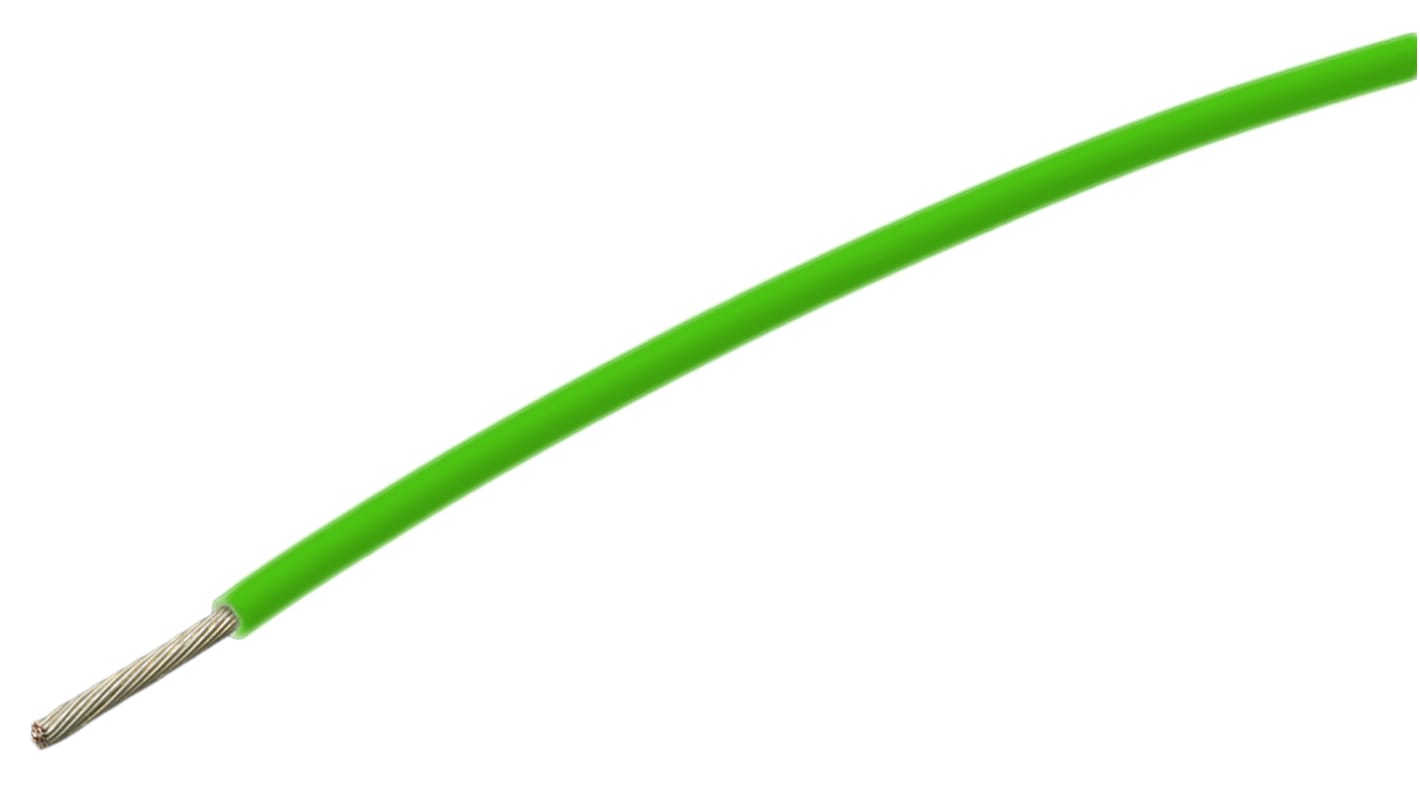

TE Connectivity 44A Series Green 0.15 mm² Hook Up Wire, 26 AWG, 19/0.1 mm, 100m, Polyalkene Insulation, 44A0111-26-5
- RS Stock No.:
- 918-5226
- Mfr. Part No.:
- 44A0111-26-5
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 metres)*
£57.59
(exc. VAT)
£69.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £57.59 | £0.576 |
*price indicative
- RS Stock No.:
- 918-5226
- Mfr. Part No.:
- 44A0111-26-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 0.15 mm² | |
| Sheath Colour | Green | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 19/0.1 mm | |
| Length | 100m | |
| Insulation Material | Polyalkene | |
| Outer Diameter | 0.86mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -65°C | |
| Conductor Material | Copper | |
| Standards Met | AS-81044, NEMA-WC-27500 | |
| Cable Type | Harsh Environment | |
| Fire Behaviour | Flame Retardant | |
| Series | 44A | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.19mm | |
| Number of Strands | 19 | |
| Size of Strands | 0.1 mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.15 mm² | ||
Sheath Colour Green | ||
American Wire Gauge 26 AWG | ||
Cable Shape Single Core | ||
Core Strands 19/0.1 mm | ||
Length 100m | ||
Insulation Material Polyalkene | ||
Outer Diameter 0.86mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -65°C | ||
Conductor Material Copper | ||
Standards Met AS-81044, NEMA-WC-27500 | ||
Cable Type Harsh Environment | ||
Fire Behaviour Flame Retardant | ||
Series 44A | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.19mm | ||
Number of Strands 19 | ||
Size of Strands 0.1 mm | ||
TE Type 44A Harsh Environment Wire
Type 44A is a high performance wire used extensively in many applications. Type 44 is made up of dual wall radiation cross linked polyalkene and polyvinylidene fluoride
Features and Benefits
• Voltage rating 600 V
• Resistant to most chemicals and electrical arc tracking
• Low smoke and low corrosive gas generation
• Small size, lightweight and flexible
• Voltage rating 600 V
• Resistant to most chemicals and electrical arc tracking
• Low smoke and low corrosive gas generation
• Small size, lightweight and flexible
