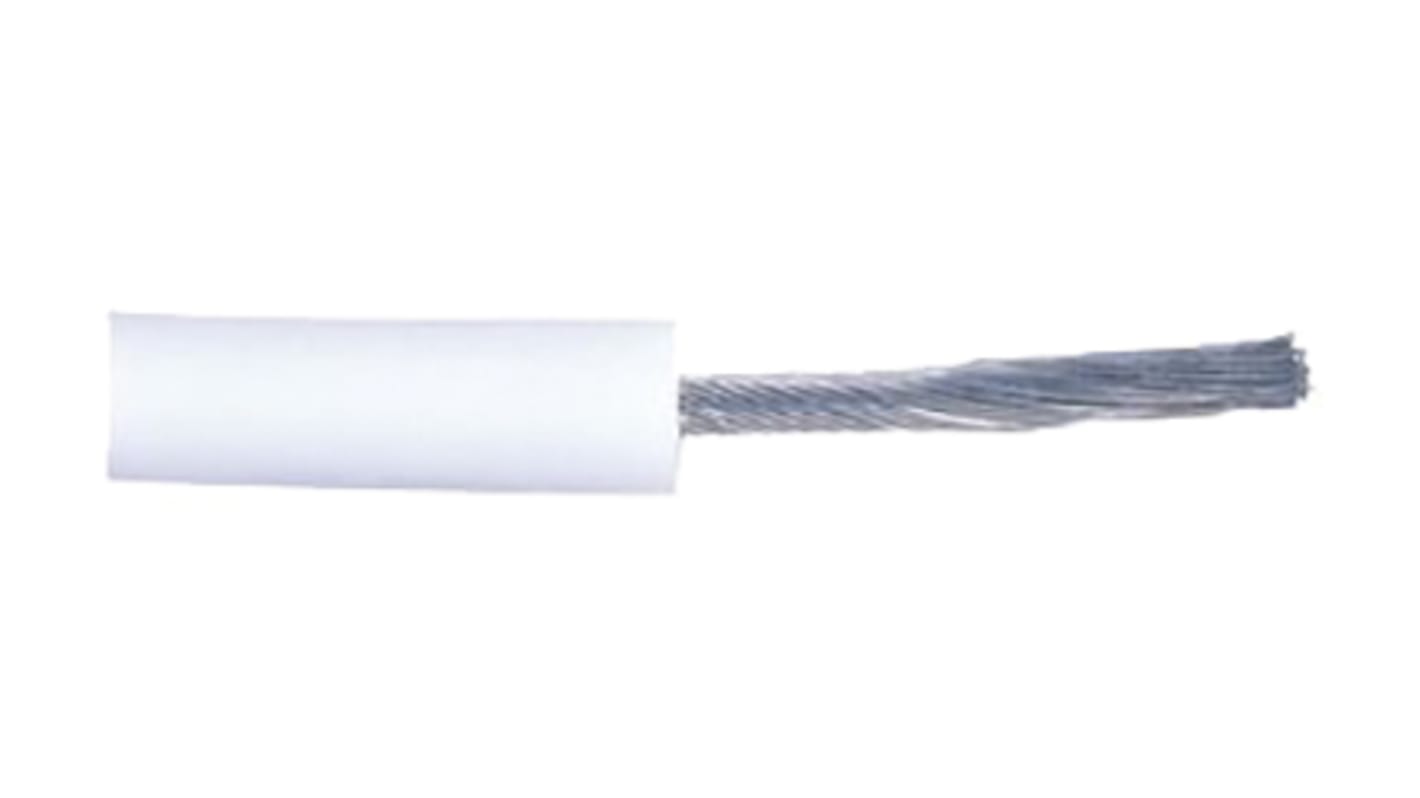

Alpha Wire Hook-up Wire Silicone Series White 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30.5m, Silicone Insulation,
- RS Stock No.:
- 904-3790
- Distrelec Article No.:
- 304-08-602
- Mfr. Part No.:
- 39X2220 WH005
- Brand:
- Alpha Wire
Subtotal (1 unit)*
£310.58
(exc. VAT)
£372.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 36 unit(s) shipping from 23 October 2025
- Plus 21 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £310.58 |
*price indicative
- RS Stock No.:
- 904-3790
- Distrelec Article No.:
- 304-08-602
- Mfr. Part No.:
- 39X2220 WH005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 30.5m | |
| Insulation Material | Silicone | |
| Outer Diameter | 3.3mm | |
| Voltage Rating | 20 kV | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | CA Prop 65, RoHS Compliant, UL VW-1 | |
| Wire Style | UL3239 | |
| Cable Type | Single Core | |
| Tri-rated | No | |
| Series | Hook-up Wire Silicone | |
| Hook Up Wire Type | High Temperature | |
| Shield Type | None | |
| Insulation Wall Thickness | 1.3mm | |
| Size of Strands | 0.25 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.25 mm | ||
Length 30.5m | ||
Insulation Material Silicone | ||
Outer Diameter 3.3mm | ||
Voltage Rating 20 kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met CA Prop 65, RoHS Compliant, UL VW-1 | ||
Wire Style UL3239 | ||
Cable Type Single Core | ||
Tri-rated No | ||
Series Hook-up Wire Silicone | ||
Hook Up Wire Type High Temperature | ||
Shield Type None | ||
Insulation Wall Thickness 1.3mm | ||
Size of Strands 0.25 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Number of Strands 7 | ||
Belden Hook-up Wire Silicone Series Hook Up Wire, 0.33mm² Cross Sectional Area, 20kV Voltage Rating - 39X2220 WH005
This hook-up wire is specially designed for high-temperature applications, featuring a silicone insulation that maintains performance between -40°C and +200°C. The single core structure consists of silver-plated copper, making it ideal for electrical connectivity in various settings. With a length of 30.5m, the wire is easy to use in a multitude of projects.
Features & Benefits
• High voltage rating of 20 kV ensures reliable performance
• Silicone insulation provides reliable thermal stability
• Oil and chemical resistant for versatile applications
• 22 AWG hook-up wire is suitable for extensive electrical use
• UL3239 wire meets rigorous safety standards
• Conductor made of silver-plated copper for superior conductivity
• Silicone insulation provides reliable thermal stability
• Oil and chemical resistant for versatile applications
• 22 AWG hook-up wire is suitable for extensive electrical use
• UL3239 wire meets rigorous safety standards
• Conductor made of silver-plated copper for superior conductivity
Applications
• Utilised in automation and control equipment
• Ideal for electrical wiring in harsh environments
• Suitable for connections in high-temperature machinery
• Employed in automotive and mechanical sectors
• Commonly used for custom electronic projects
• Ideal for electrical wiring in harsh environments
• Suitable for connections in high-temperature machinery
• Employed in automotive and mechanical sectors
• Commonly used for custom electronic projects
What type of conductor is used and why is it important?
The wire uses silver-plated copper, which enhances conductivity and improves performance in high voltage applications. This feature contributes to reduced resistance and improved overall efficiency in electrical connections.
How does this wire perform in extreme temperatures?
The silicone insulation allows this wire to function effectively in temperatures ranging from -40°C to +200°C, making it suitable for environments that experience heat fluctuations and potential exposure to extreme conditions.
What safety standards does this wire comply with?
It adheres to UL VW-1 safety requirements, ensuring that it meets necessary safety and fire standards in electrical applications, offering peace of mind during use.
