Alpha Wire, 10, Silicone Rubber, 392040 WH005
- RS Stock No.:
- 904-3693
- Mfr. Part No.:
- 392040 WH005
- Brand:
- Alpha Wire
Subtotal (1 unit)*
£214.98
(exc. VAT)
£257.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 8 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £214.98 |
*price indicative
- RS Stock No.:
- 904-3693
- Mfr. Part No.:
- 392040 WH005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Core Strands | 10 | |
| Jacket Material | Silicone Rubber | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Core Strands 10 | ||
Jacket Material Silicone Rubber | ||
Non Compliant

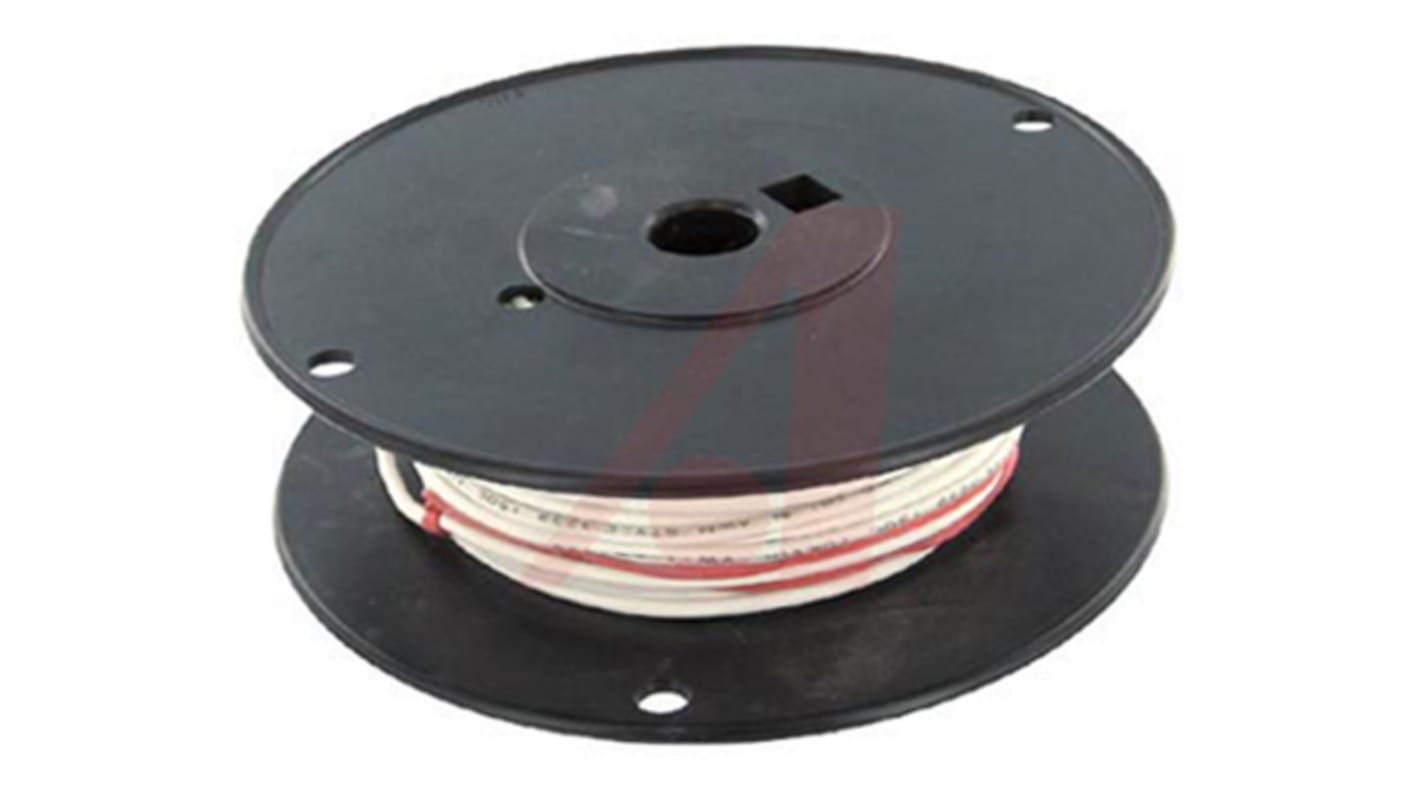

Belden Hookup Wire Silicone Series Hook Up Wire, 0.52mm² Cross Sectional Area, White Jacket - 392040 WH005
This hook-up wire is a high-temperature silicone-insulated conductor designed for demanding electrical and electronic installations. It combines a flexible tin-plated copper core with silicone rubber insulation to perform in elevated-temperature environments and where high dielectric strength is required.
Features & Benefits
• 150°C maximum operating temperature enables high-temp operation
• 10000V voltage rating supports high-voltage insulation requirements
• Tin-plated copper 10-strand 0.52mm² conductor gives flexible conductivity
• VW-1 flame-retardant jacket reduces vertical-wire flame spread
• Silicone insulation provides chemical and thermal resilience
• UL AWM Style 3239 compliance aids integration into certificated assemblies
• 10000V voltage rating supports high-voltage insulation requirements
• Tin-plated copper 10-strand 0.52mm² conductor gives flexible conductivity
• VW-1 flame-retardant jacket reduces vertical-wire flame spread
• Silicone insulation provides chemical and thermal resilience
• UL AWM Style 3239 compliance aids integration into certificated assemblies
Applications
• Suitable for high-temperature wiring in industrial automation panels
• Ideal for high-voltage interconnects in test equipment
• Used for signal and power connections in electromechanical systems
• Can be used for wiring in environments requiring flame retardance
• Used with shrink tubing and terminations where flexibility is needed
• Ideal for high-voltage interconnects in test equipment
• Used for signal and power connections in electromechanical systems
• Can be used for wiring in environments requiring flame retardance
• Used with shrink tubing and terminations where flexibility is needed
What conductor construction allows enhanced flexibility?
The conductor comprises ten tin-plated copper strands, which lowers stiffness compared with solid conductors and facilitates routing in confined assemblies.
What are the expected mechanical installation limits?
The cable tolerates a maximum pull tension of 7.9 lb and requires a bend radius equal to ten times the cable diameter for reliable routing.
How is material compliance demonstrated?
The component meets RoHS and REACH declarations and adheres to China RoHS marking standards as recorded in its conformity documentation.
What packaging options are available for procurement?
Standard supply lengths include continuous reels of 100 ft, 500 ft and 1,000 ft, with bespoke bulk orders available by arrangement.
Which printed marking appears on the insulation for identification?
The insulation carries AWM STYLE 3239 and temperature and voltage identifiers stamped along the sheath for field traceability.
Standards
UL AWM 3239
