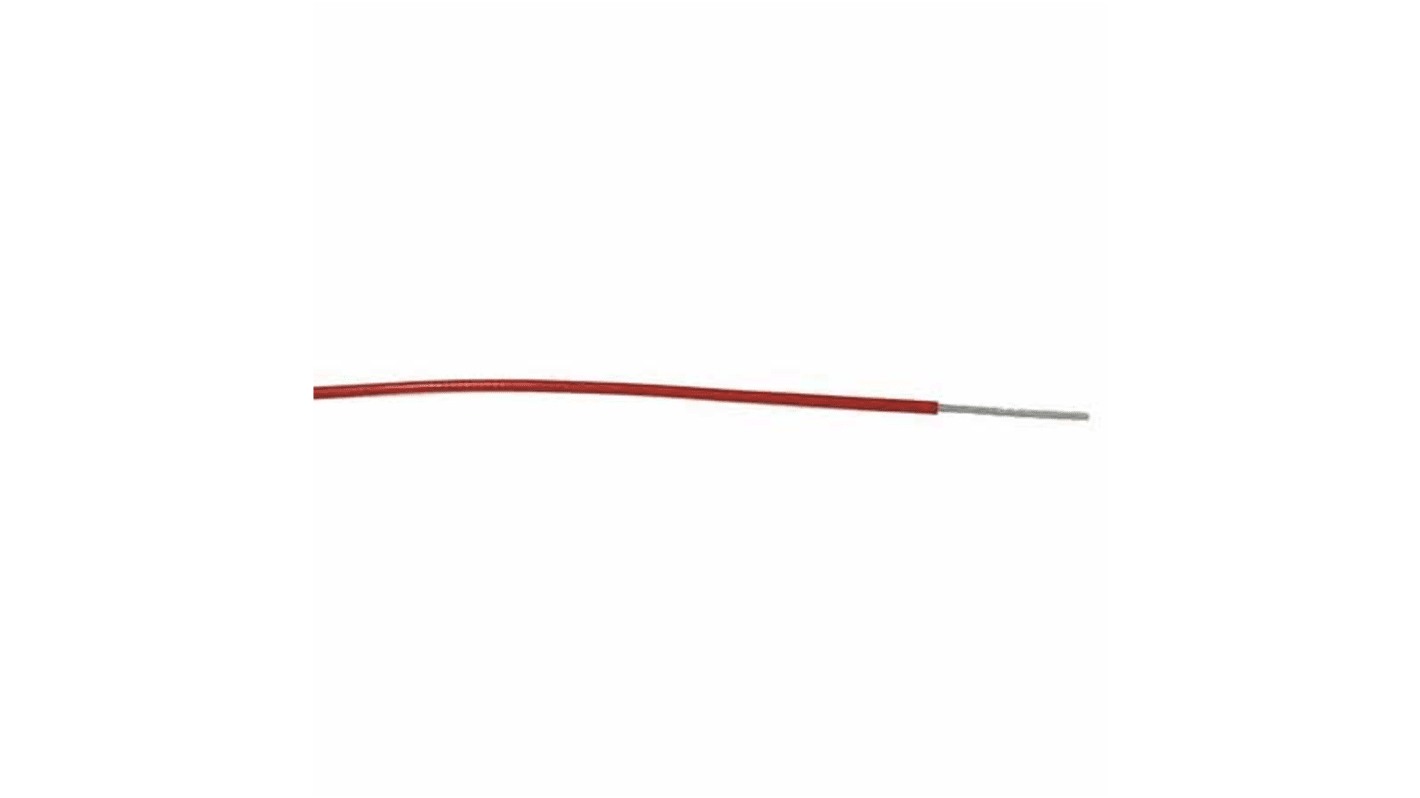

RS PRO Red 0.08 mm² Hookup & Equipment Wire, 28 AWG, 7/0.12 mm, 100m, PTFE Insulation
- RS Stock No.:
- 903-3964
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£84.14
(exc. VAT)
£100.97
(inc. VAT)
- RS Stock No.:
- 903-3964
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.08 mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 28 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.12 mm | |
| Length | 100m | |
| Insulation Material | PTFE | |
| Outer Diameter | 0.74mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105 °C, +80 (Oil) °C | |
| Conductor Material | Stranded Silver Plated Copper | |
| Wire Style | UL1371 | |
| Standards Met | UL 758 | |
| Insulation Wall Thickness | 0.2mm | |
| Size of Strands | 0.127 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.08 mm² | ||
Sheath Colour Red | ||
American Wire Gauge 28 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.12 mm | ||
Length 100m | ||
Insulation Material PTFE | ||
Outer Diameter 0.74mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105 °C, +80 (Oil) °C | ||
Conductor Material Stranded Silver Plated Copper | ||
Wire Style UL1371 | ||
Standards Met UL 758 | ||
Insulation Wall Thickness 0.2mm | ||
Size of Strands 0.127 mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- CN
RS UL 1371 Hook-up wire
UL 1371 wire is suitable for internal wiring where it is not subjected to movement or mechanical damage.
Features & Benefits
• PTFE Insulation
• Various Colours
• Stranded Sliver plated copper conductor
• Various Colours
• Stranded Sliver plated copper conductor
Standards
UL758
