RS PRO Grey 1.5mm² Hook Up Wire, 16 AWG, 27/0.25 mm, 100m, PVC Insulation
- RS Stock No.:
- 902-8404
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£41.80
(exc. VAT)
£50.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £41.80 | £0.418 |
*price indicative
- RS Stock No.:
- 902-8404
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1.5mm² | |
| Sheath Colour | Grey | |
| Cable Shape | Round | |
| American Wire Gauge | 16 AWG | |
| Core Strands | 27/0.25 mm | |
| Length | 100m | |
| European Harmonised Code | H07V-K | |
| Insulation Material | PVC | |
| Outer Diameter | 3.4mm | |
| Voltage Rating | 750 V | |
| Maximum Operating Temperature | +70°C | |
| CPR Certification | Eca | |
| Current Rating | 24A | |
| Conductor Material | Copper | |
| Standards Met | IEC 60332-1 | |
| Fire Behaviour | Flame Retardant | |
| Series | H07V-K | |
| Harmonised Code | H07V-K | |
| Size of Strands | 0.25mm | |
| Outer Sheath Material | PVC | |
| Number of Strands | 27 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5mm² | ||
Sheath Colour Grey | ||
Cable Shape Round | ||
American Wire Gauge 16 AWG | ||
Core Strands 27/0.25 mm | ||
Length 100m | ||
European Harmonised Code H07V-K | ||
Insulation Material PVC | ||
Outer Diameter 3.4mm | ||
Voltage Rating 750 V | ||
Maximum Operating Temperature +70°C | ||
CPR Certification Eca | ||
Current Rating 24A | ||
Conductor Material Copper | ||
Standards Met IEC 60332-1 | ||
Fire Behaviour Flame Retardant | ||
Series H07V-K | ||
Harmonised Code H07V-K | ||
Size of Strands 0.25mm | ||
Outer Sheath Material PVC | ||
Number of Strands 27 | ||
- COO (Country of Origin):
- TR
RS Pro H07V-K Cable
RS Pro PVC insulated cable is manufactured to meet H07V-K harmonised standard. Suitable for a variety of electrical installations, this stranded single core copper cable is flame retarded and meets IEC 60332-1 standards. Rated up to 750 V this single core cable comes in a standard reel of 100m.
Features and Benefits
• Flame retardant to IEC 60332-1
• Flexible Class 5 IEC 60228 conductor
• Rated voltage of up to and including 750 V
• Available in black, blue, grey, brown and green/yellow in a range of sizes
• High quality PVC insulation
• 100m reel
• Stranded copper core
• Flexible Class 5 IEC 60228 conductor
• Rated voltage of up to and including 750 V
• Available in black, blue, grey, brown and green/yellow in a range of sizes
• High quality PVC insulation
• 100m reel
• Stranded copper core

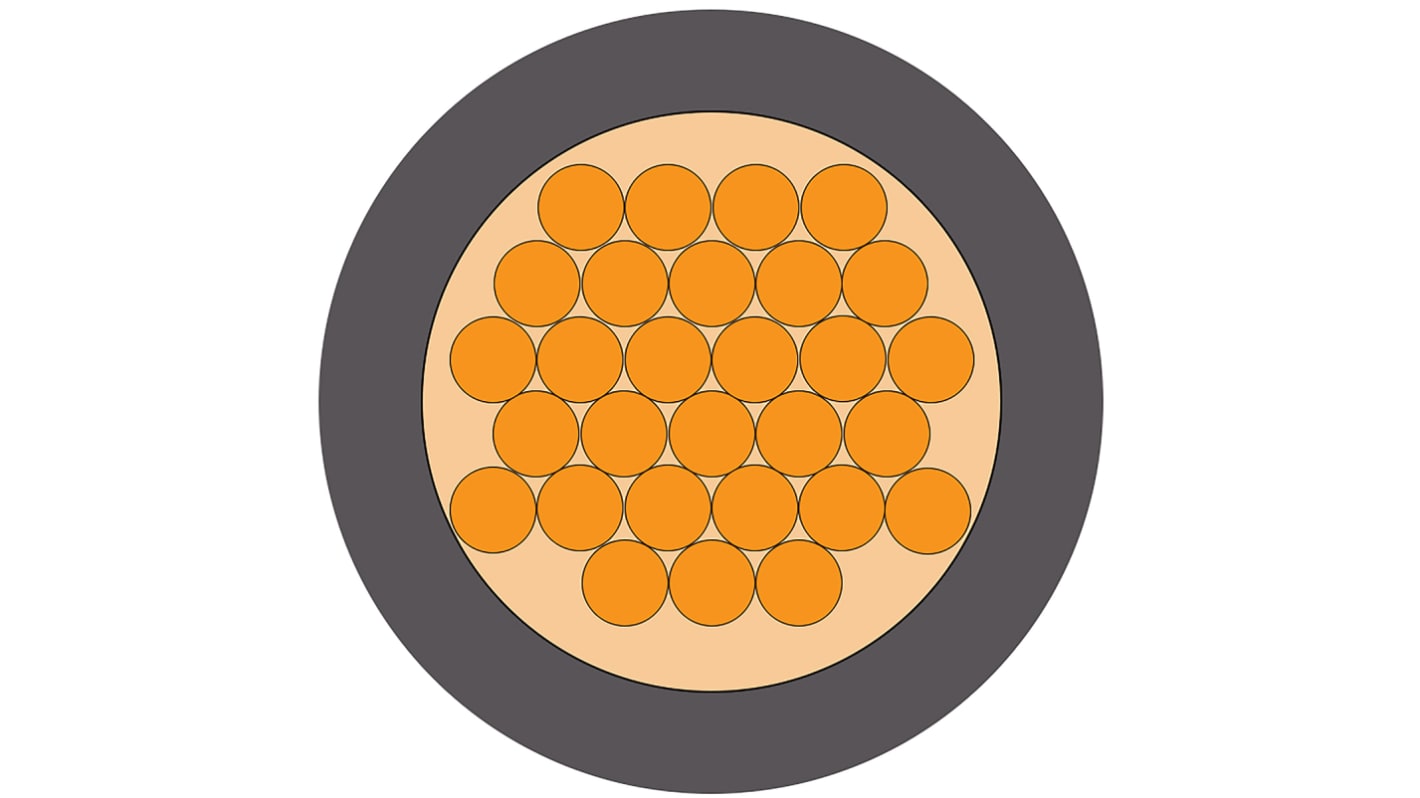

This single core cable has a grey sheathing with a 1.5 mm² cross sectional area. With a conductive resistance of 13.3 Ω/km this cable is suitable for a range of applications. Made of 0.25 mm wire strands, this cable has an outer diameter of 3.4 mm.
