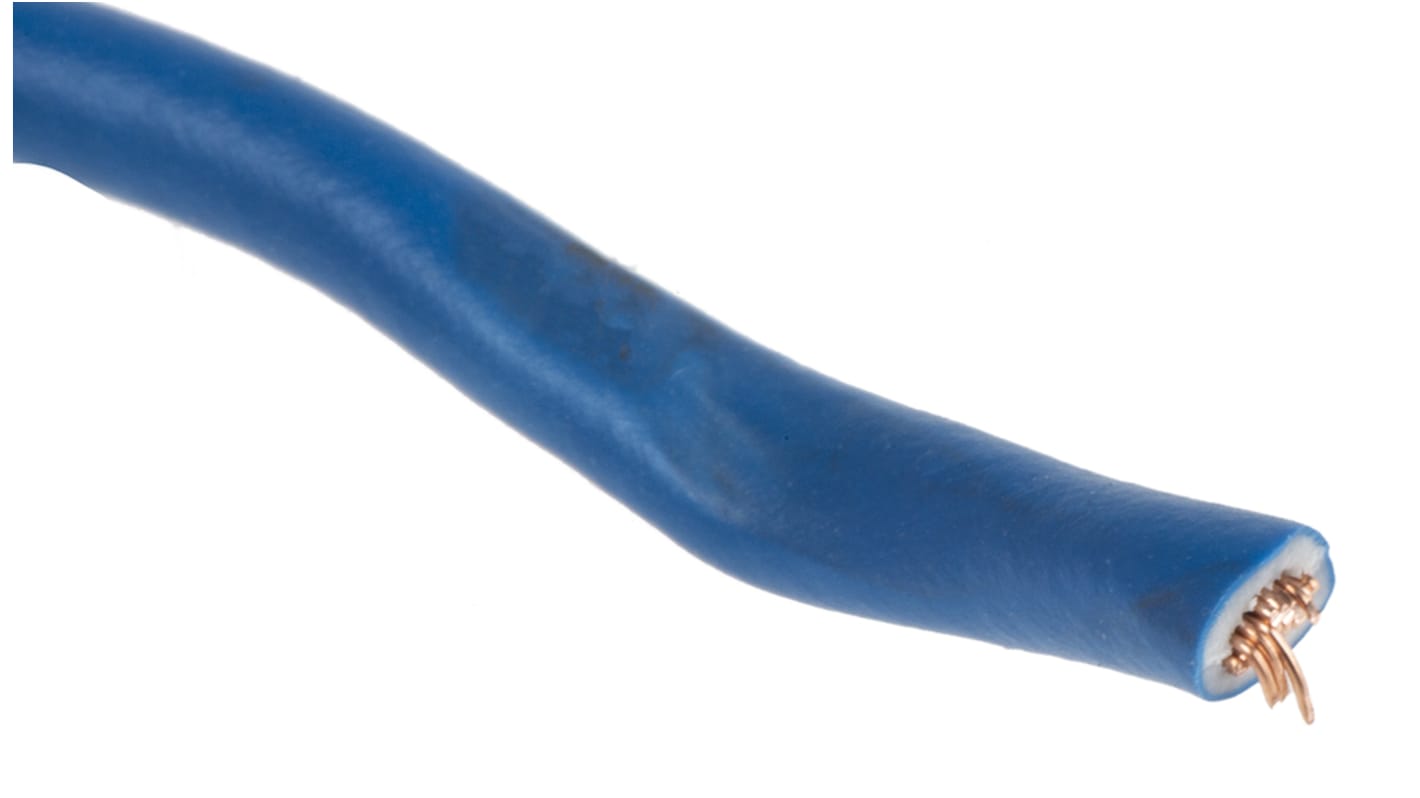

RS PRO Blue 1.5mm² Hook Up Wire, 16 AWG, 27/0.25 mm, 100m, PVC Insulation
- RS Stock No.:
- 902-8397
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£41.80
(exc. VAT)
£50.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £41.80 | £0.418 |
*price indicative
- RS Stock No.:
- 902-8397
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 1.5mm² | |
Sheath Colour | Blue | |
American Wire Gauge | 16 AWG | |
Cable Shape | Round | |
Core Strands | 27/0.25 mm | |
Length | 100m | |
Insulation Material | PVC | |
European Harmonised Code | H07V-K | |
Outer Diameter | 3.4mm | |
Voltage Rating | 750 V | |
Maximum Operating Temperature | +70°C | |
CPR Certification | Eca | |
Current Rating | 24A | |
Conductor Material | Copper | |
Standards Met | IEC 60332-1 | |
Fire Behaviour | Flame Retardant | |
Series | H07V-K | |
Harmonised Code | H07V-K | |
Size of Strands | 0.25mm | |
Number of Strands | 27 | |
Outer Sheath Material | PVC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5mm² | ||
Sheath Colour Blue | ||
American Wire Gauge 16 AWG | ||
Cable Shape Round | ||
Core Strands 27/0.25 mm | ||
Length 100m | ||
Insulation Material PVC | ||
European Harmonised Code H07V-K | ||
Outer Diameter 3.4mm | ||
Voltage Rating 750 V | ||
Maximum Operating Temperature +70°C | ||
CPR Certification Eca | ||
Current Rating 24A | ||
Conductor Material Copper | ||
Standards Met IEC 60332-1 | ||
Fire Behaviour Flame Retardant | ||
Series H07V-K | ||
Harmonised Code H07V-K | ||
Size of Strands 0.25mm | ||
Number of Strands 27 | ||
Outer Sheath Material PVC | ||
- COO (Country of Origin):
- TR
RS PRO 1-Core 1.5 mm² H07V-K Power Cable, Blue PVC Sheath 100 m, 750 V
Use this single-core, multipurpose power cable from RS PRO for a wide range of low-voltage applications. It's typically used for circuit boards and small electronic equipment, as well as for wiring plugs to household appliances.
The cable is housed in an insulated, flexible sheath made from polyvinyl chloride (PVC), which makes it hardwearing and protects the user from the electrical current. It's also flame-retardant and chemical and abrasion-resistant, so you can use it in challenging industrial environments without compromising on safety. Its 27 copper strands offer excellent conductivity.
The power cable comes in a reel of 100 m, so you're unlikely to run short. It complies with the H07V-K harmonised code, which means you can safely use it in permanent installations in populated areas such as homes, offices and public spaces.
The cable is housed in an insulated, flexible sheath made from polyvinyl chloride (PVC), which makes it hardwearing and protects the user from the electrical current. It's also flame-retardant and chemical and abrasion-resistant, so you can use it in challenging industrial environments without compromising on safety. Its 27 copper strands offer excellent conductivity.
The power cable comes in a reel of 100 m, so you're unlikely to run short. It complies with the H07V-K harmonised code, which means you can safely use it in permanent installations in populated areas such as homes, offices and public spaces.
Features and Benefits
- Copper conductor material
- Conductor resistance of 13.3 Ω/km
- Stranded conductor type
- Core strand diameter of 0.25 mm
- Cross-sectional area of 1.5 mm²
- Flame-retardant
- H07V-K harmonised code
- Length of 100 m
- Single core
- 27 strands
- Outer diameter of 3.4 mm
- Blue sheath colour
- Polyvinyl chloride (PVC) sheath material
- Meets IEC 60332-1 fire safety standards for electric cables
- Voltage rating of 750 V
