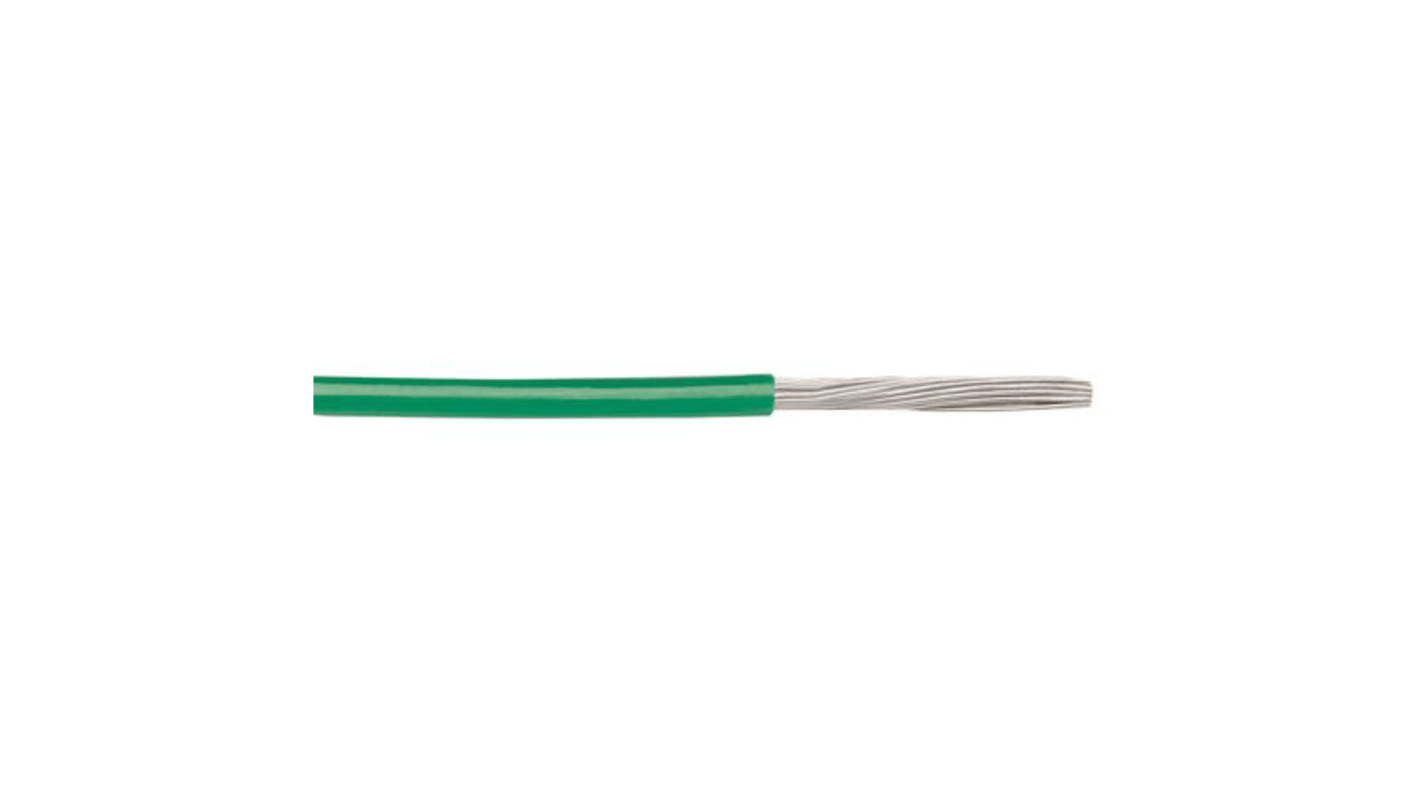

Alpha Wire Hook-up Wire PVC Series Green 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 30m, PVC Insulation, 7053 GR005
- RS Stock No.:
- 842-5687
- Distrelec Article No.:
- 155-22-156
- Mfr. Part No.:
- 7053 GR005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£30.29
(exc. VAT)
£36.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £30.29 | £1.01 |
*price indicative
- RS Stock No.:
- 842-5687
- Distrelec Article No.:
- 155-22-156
- Mfr. Part No.:
- 7053 GR005
- Brand:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Green | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.16 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Voltage Rating | 150 V | |
| Outer Diameter | 0.99mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Wire Style | UL1429 | |
| Standards Met | CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, UL AWM/STYLE 1429 | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Green | ||
American Wire Gauge 26 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.16 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Voltage Rating 150 V | ||
Outer Diameter 0.99mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Wire Style UL1429 | ||
Standards Met CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, UL AWM/STYLE 1429 | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 7 | ||
