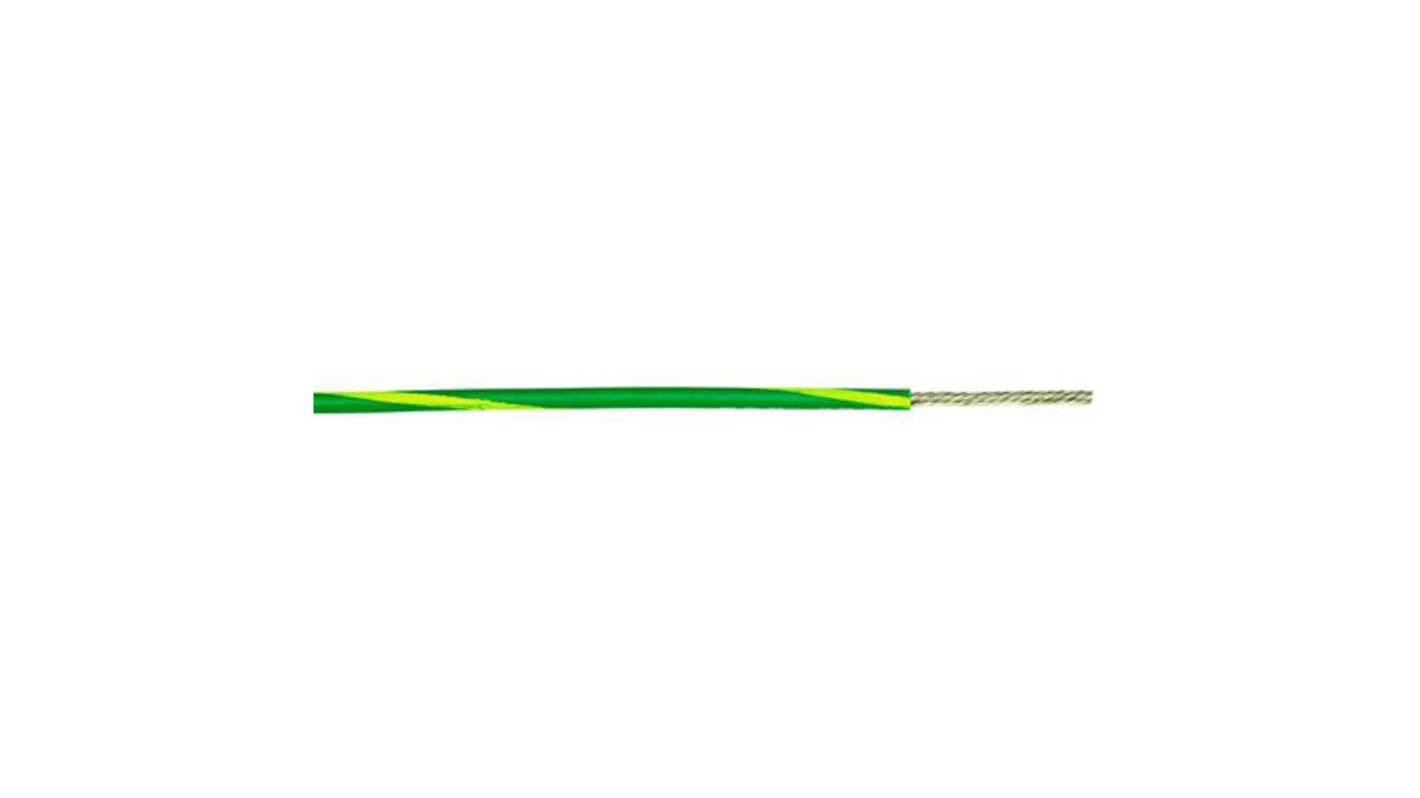

Alpha Wire Hookup Wire PVC Series Green, Yellow 0.75 mm² Hook Up Wire, 18 AWG, 16, 30 m, Polyvinyl Chloride, 3075 GY005
- RS Stock No.:
- 842-5466
- Distrelec Article No.:
- 300-83-119
- Mfr. Part No.:
- 3075 GY005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£27.12
(exc. VAT)
£32.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £27.12 | £0.904 |
*price indicative
- RS Stock No.:
- 842-5466
- Distrelec Article No.:
- 300-83-119
- Mfr. Part No.:
- 3075 GY005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.75mm² | |
| Jacket Colour | Green, Yellow | |
| American Wire Gauge | 18AWG | |
| Core Strands | 16 | |
| Cable Length | 30m | |
| Voltage | 600V | |
| Outside Diameter | 2.82mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | AWM I A/B, AWM/STYLE 1231, CE:EU Low Voltage Directive 2006/95/EC, CSA International TEW-106, FT2, MTW, UL AWM/STYLE 1016, VW-2 | |
| Minimum Operating Temperature | -40°C | |
| Sub Type | 3075 Hookup Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | Single Core | |
| Fire Behaviour | Flame Retardant | |
| Series | Hookup Wire PVC | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.75mm² | ||
Jacket Colour Green, Yellow | ||
American Wire Gauge 18AWG | ||
Core Strands 16 | ||
Cable Length 30m | ||
Voltage 600V | ||
Outside Diameter 2.82mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals AWM I A/B, AWM/STYLE 1231, CE:EU Low Voltage Directive 2006/95/EC, CSA International TEW-106, FT2, MTW, UL AWM/STYLE 1016, VW-2 | ||
Minimum Operating Temperature -40°C | ||
Sub Type 3075 Hookup Wire | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type Single Core | ||
Fire Behaviour Flame Retardant | ||
Series Hookup Wire PVC | ||
- COO (Country of Origin):
- MX
Belden Hookup Wire PVC Series Hook Up Wire, 0.75mm² Cross Sectional Area, Green/Yellow Jacket - 3075 GY001
This hook-up wire is a flexible insulated conductor intended for signal and control wiring in industrial and vehicle installations. It combines a multi-strand copper core with a PVC outer sheath to deliver dependable electrical connection at elevated temperatures and in constrained routing environments typical of automation, electronics and electrical assemblies.
Features & Benefits
• 0.75mm² conductor minimises voltage drop for Compact circuits
• 16-strand copper core improves flexibility for tight bends
• Rated to 105°C for elevated-temperature operation
• 600V insulation supports medium-voltage control systems
• LSZH and flame-retardant materials reduce smoke and halogen emissions
• Complies with multiple safety standards for regulatory acceptance
• 16-strand copper core improves flexibility for tight bends
• Rated to 105°C for elevated-temperature operation
• 600V insulation supports medium-voltage control systems
• LSZH and flame-retardant materials reduce smoke and halogen emissions
• Complies with multiple safety standards for regulatory acceptance
**Applications**
• Suitable for wiring control panels and Terminal blocks in machinery
• Ideal for automotive harness repairs and auxiliary circuits
• Used for internal wiring of industrial equipment and instruments
• Can be used for cabinet interconnects requiring flame retardance
• Ideal for automotive harness repairs and auxiliary circuits
• Used for internal wiring of industrial equipment and instruments
• Can be used for cabinet interconnects requiring flame retardance
What conductor construction aids repeated flexing during installation?
The conductor is MADE from numerous fine copper strands which provide enhanced pliability and resistance to fatigue under multiple bend cycles.
How should the cable be routed to avoid mechanical stress?
Maintain a minimum bend radius of 5x the cable diameter and avoid Sharp edges to prevent insulation damage and conductor strain.
What labelling or colour options are available to assist identification?
The sheath is offered in green/yellow for protective earth identification as well as solid green and yellow variants for phase or signal coding.
How is environmental safety addressed in material selection?
Materials meet RoHS restrictions and have low levels of substances of very high concern, reducing hazardous substance content in end products.
Standards
UL AWM 1015, 1028, 1230, 1231, 1232, 1283, 1284, UL MTW (22 to 1/0 AWG), UL THW (6 to 1/0 AWG), CSA AWM I A/B FT1 and TEW 105, UL VW-1
