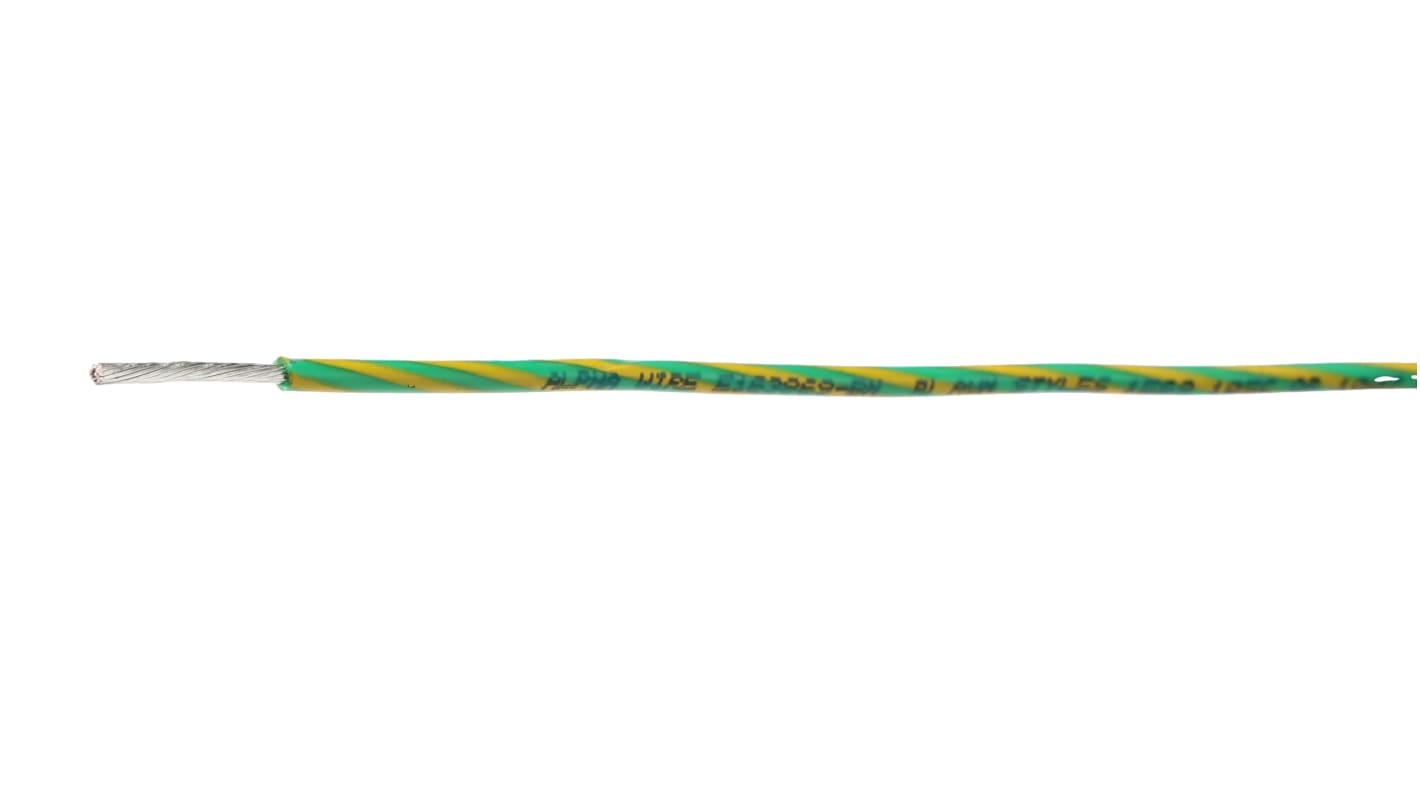

Alpha Wire Hook-up Wire PVC Series Green/Yellow 0.82 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 30m, PVC Insulation, 3055
- RS Stock No.:
- 111-9458
- Distrelec Article No.:
- 300-83-075
- Mfr. Part No.:
- 3055 GY005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 units)*
£35.14
(exc. VAT)
£42.17
(inc. VAT)
Add 2 reels to get free delivery
In Stock
- 8 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £35.14 | £1.171 |
*price indicative
- RS Stock No.:
- 111-9458
- Distrelec Article No.:
- 300-83-075
- Mfr. Part No.:
- 3055 GY005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.82 mm² | |
| Sheath Colour | Green/Yellow | |
| American Wire Gauge | 18 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 16/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 2.01mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Cable Type | Harsh Environment | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Tri-rated | No | |
| Shield Type | Unshielded | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.41mm | |
| Number of Strands | 16 | |
| Size of Strands | 0.25 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.82 mm² | ||
Sheath Colour Green/Yellow | ||
American Wire Gauge 18 AWG | ||
Cable Shape Single Core | ||
Core Strands 16/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 2.01mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Cable Type Harsh Environment | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Tri-rated No | ||
Shield Type Unshielded | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.41mm | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
- COO (Country of Origin):
- MX
Belden Hook-up Wire PVC Series Hook Up Wire, 0.82mm² Cross Sectional Area, Green/Yellow Sheath Colour - 3055 GY005
This hook-up wire is designed for high-performance applications, featuring a single-core construction with a cross-sectional area of 0.82 mm². It is insulated with durable PVC and comes in a striking green/yellow sheath. With a length of 30 m and an outer diameter of 2.01mm, this wire is ideal for various industrial needs, particularly in environments demanding high temperature tolerance.
Features & Benefits
• Designed for harsh environments with oil and chemical resistance
• Tinned copper construction for improved conductivity
• Flame retardant materials enhance safety during operation
• Rated for a maximum operating temperature of +105°C
• UL listed for compliance with industry standards
• Suitable for a wide range of applications with a 300V voltage rating
• Tinned copper construction for improved conductivity
• Flame retardant materials enhance safety during operation
• Rated for a maximum operating temperature of +105°C
• UL listed for compliance with industry standards
• Suitable for a wide range of applications with a 300V voltage rating
Applications
• Used in electrical panels for reliable connections
• Ideal for wire harnessing in automation systems
• Employed in control cabinets for enhanced durability
• Suitable for electronics assembly in industrial environments
• Ideal for wire harnessing in automation systems
• Employed in control cabinets for enhanced durability
• Suitable for electronics assembly in industrial environments
What is the temperature range for this wire?
It operates effectively within a temperature range of -40°C to +105°C, making it suitable for diverse environments.
How does the flame retardant feature benefit this wire?
The flame retardant properties significantly reduce fire risks during operation, ensuring safety in critical applications.
Can this wire be used in outdoor settings?
While it is designed for harsh environments, users should evaluate specific outdoor conditions to ensure optimal performance and longevity.
What are the strand specifications of this wire?
This wire consists of 16 strands, each measuring 0.25mm, providing enhanced flexibility and conductivity for various applications.
