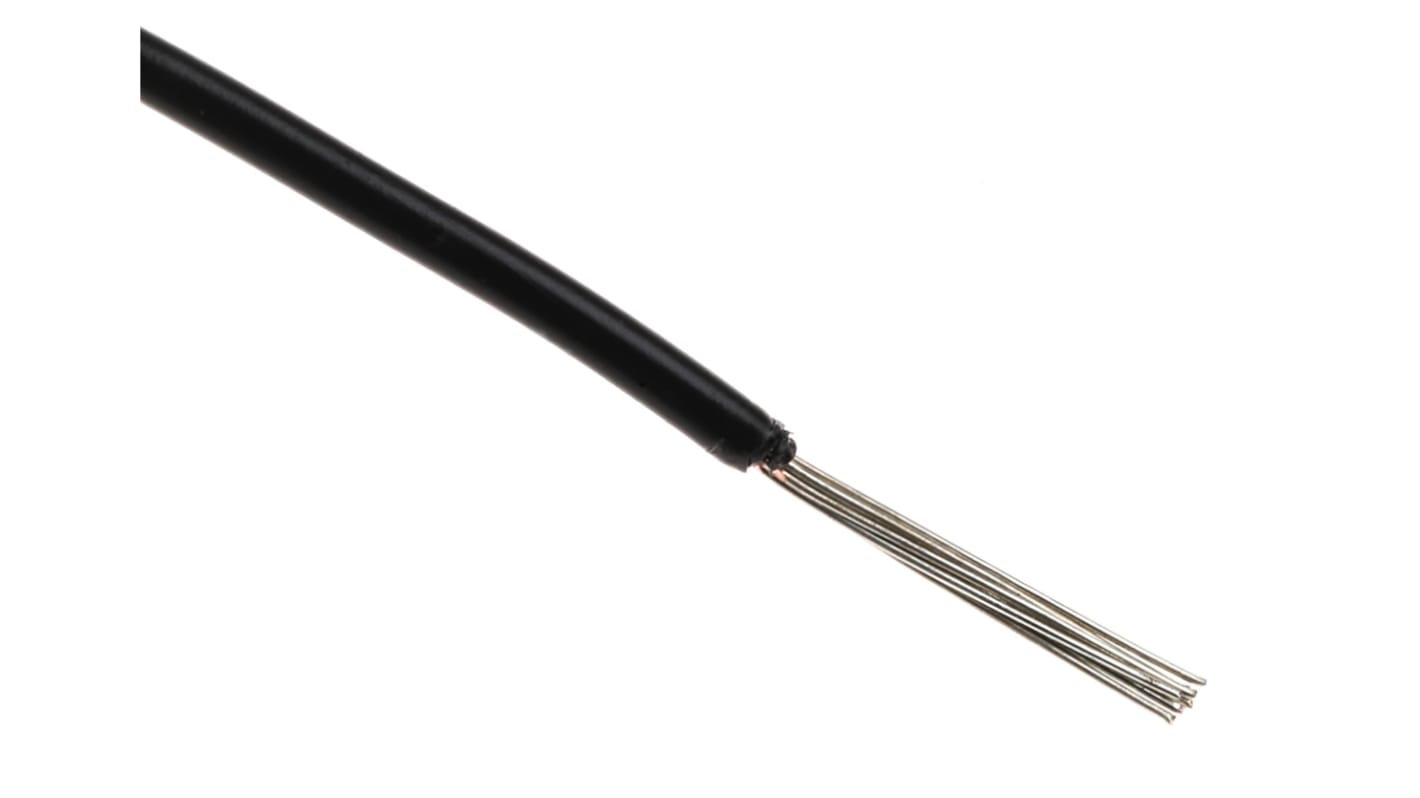

Alpha Wire Hook-up Wire PVC Series Black 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 305m, PVC Insulation, 3051 BK001
- RS Stock No.:
- 842-5306
- Distrelec Article No.:
- 300-99-369
- Mfr. Part No.:
- 3051 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£94.48
(exc. VAT)
£113.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £94.48 | £0.31 |
*price indicative
- RS Stock No.:
- 842-5306
- Distrelec Article No.:
- 300-99-369
- Mfr. Part No.:
- 3051 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.35 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.57mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Harsh Environment | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.41mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.35 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 22 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Outer Diameter 1.57mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Cable Type Harsh Environment | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.41mm | ||
Shield Type Unshielded | ||
Size of Strands 0.25 mm | ||
Number of Strands 7 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Belden Alpha Wire Single-Core Harsh-Environment Wire, 22AWG - Hook-Up Wire Series - 3051
Choose this harsh-environment wire from Belden's Alpha Wire range for applications involving demanding temperatures, pressures and abrasion. It's a hook-up wire that's designed for use in the internal wiring of enclosed equipment. The PVC (polyvinyl chloride) insulating material is 0.41mm thick, providing effective temperature regulation to prevent overheating. It's also resistant to impact and chemicals to protect the inner core against damage. You can use this cable in a range of industrial settings thanks to its broad operating temperature range of -40°C to +105°C.
Features & Benefits
• Bend radius of 10 times the cable diameter to prevent kinking and signal interruption
• Length can be cut to a customised length for flexibility
• Tinned copper conductor is highly conductive and corrosion-resistant for a reliable connection
• Length can be cut to a customised length for flexibility
• Tinned copper conductor is highly conductive and corrosion-resistant for a reliable connection
Applications
• Oil and gas industry
• Mining and quarrying
• Aerospace engineering
• Chemical plants
• Mining and quarrying
• Aerospace engineering
• Chemical plants
Is this wire safe for use in the event of a fire?
This wire has flame-retardant properties, so it's highly resistant to burning. This makes it a good choice for use in places where there's a risk of fire or exposure to flames.
