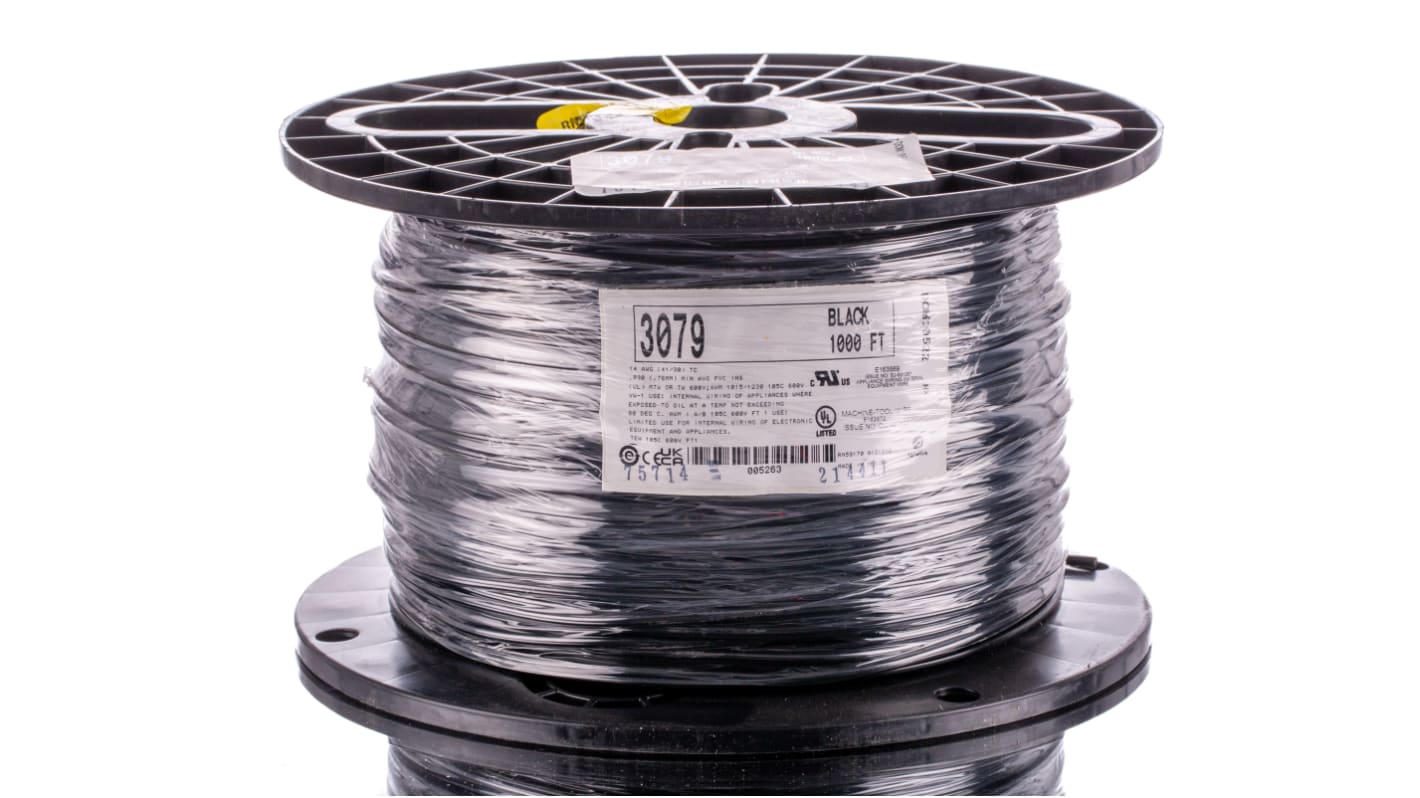

Alpha Wire Hook-up Wire PVC Series Black 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 305m, PVC Insulation, 3079 BK001
- RS Stock No.:
- 842-5542
- Distrelec Article No.:
- 301-08-705
- Mfr. Part No.:
- 3079 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£315.22
(exc. VAT)
£378.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £315.22 | £1.034 |
*price indicative
- RS Stock No.:
- 842-5542
- Distrelec Article No.:
- 301-08-705
- Mfr. Part No.:
- 3079 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 2.1 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 41/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Outer Diameter | 3.51mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Standards Met | CE, CSA Certified, UL | |
| Wire Style | UL1015 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.8mm | |
| Size of Strands | 0.25 mm | |
| Resistant To | Oils | |
| Number of Strands | 41 | |
| Outer Sheath Material | PVC | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 2.1 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 14 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 41/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Outer Diameter 3.51mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Standards Met CE, CSA Certified, UL | ||
Wire Style UL1015 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.8mm | ||
Size of Strands 0.25 mm | ||
Resistant To Oils | ||
Number of Strands 41 | ||
Outer Sheath Material PVC | ||
RoHS Status: Exempt
Alpha Wire 600 V PVC Hook Up Wire
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 600 V PVC hook up wire can be used in temperatures ranging from -20°C to +105°C depending on the application.
Features and Benefits
Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Product Applications
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1015, 1028, 1230, 1231, 1232, 1283, 1284, UL MTW (22 to 1/0 AWG), UL THW (6 to 1/0 AWG), CSA AWM I A/B FT1 and TEW 105, UL VW-1
Belden Alpha Wire Hook Up Wire, Single-Core Type, 600V Voltage Rating - 3079 BK005
Want a multi-strand cable that's flexible enough for use in complex setups? Choose this hook up wire from Belden's Alpha Wire range. As its core is made of 41 copper wire strands, it's reliably bendy, as well as being highly conductive. Harsh settings are no match for this flex, which does its job in an operating temperature range between -20°C and +105°C.
Features & Benefits
• 30m length lets you make long runs or complete multiple cut-and-fix jobs
• Standard 14AWG size for wide compatibility
• Resistance of just 2.8Ω/1000ft means it works efficiently with minimal energy waste
• Standard 14AWG size for wide compatibility
• Resistance of just 2.8Ω/1000ft means it works efficiently with minimal energy waste
Applications
• Process control
• Manufacturing facilities
• Network communication
• Manufacturing facilities
• Network communication
How thick is this product's insulation?
This hook up wire has PVC insulation that's 0.8mm thick. This offers effective protection against leaky currents and also resists abrasion, oils and fats.
