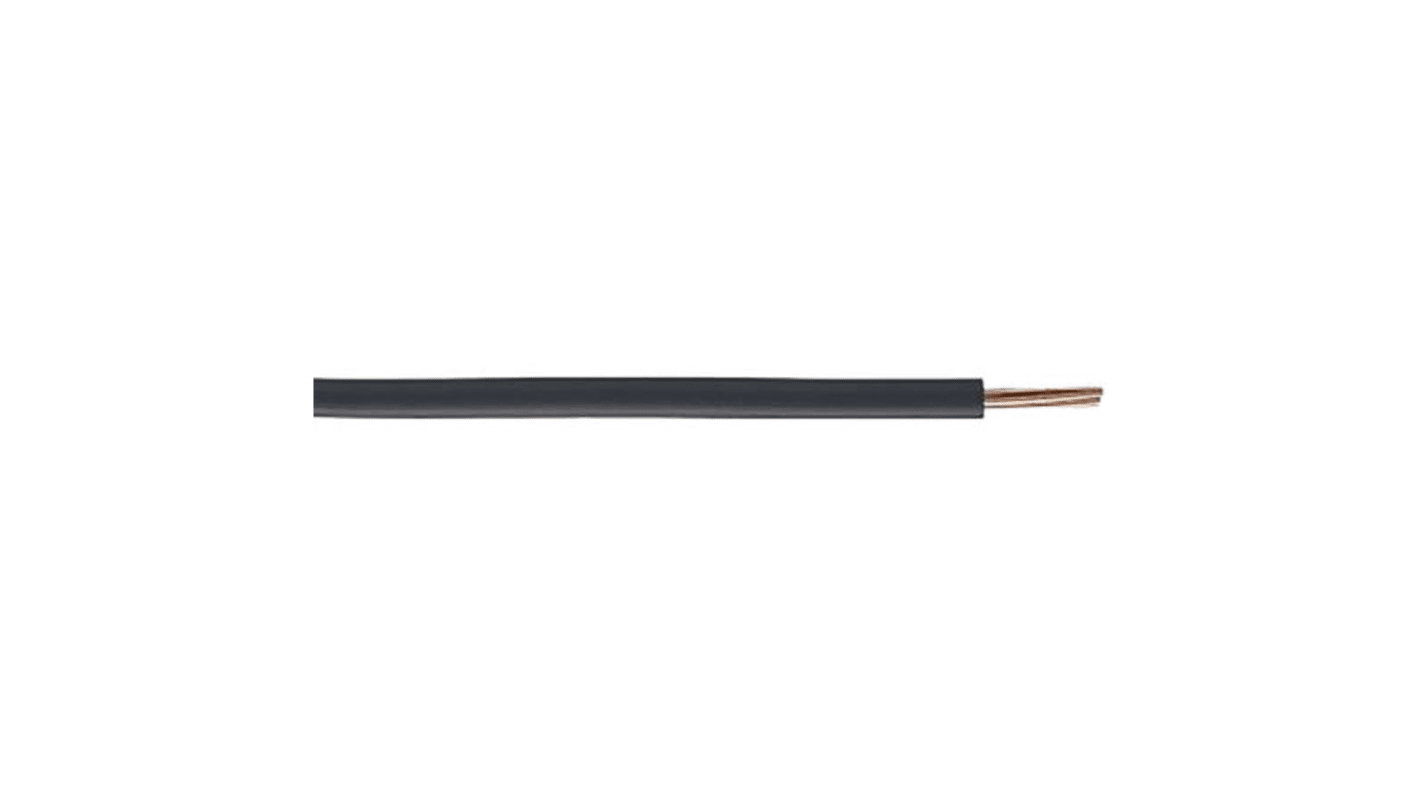

RS PRO Black 2.5mm² Hook Up Wire, 14 AWG, 7/0.67 mm, 100m, Polyolefin Cross-linked EI5, Type EI 5 to EN 50363-5
- RS Stock No.:
- 836-0990
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£61.08
(exc. VAT)
£73.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 30 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £61.08 | £0.611 |
*price indicative
- RS Stock No.:
- 836-0990
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 2.5mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Round | |
| Core Strands | 7/0.67 mm | |
| Length | 100m | |
| Insulation Material | Polyolefin Cross-linked EI5, Type EI 5 to EN 50363-5 | |
| European Harmonised Code | H07Z-R | |
| Outer Diameter | 3.3 → 4.1mm | |
| Voltage Rating | 750 V | |
| Maximum Operating Temperature | +70°C | |
| CPR Certification | Eca | |
| Conductor Material | Copper | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491B | |
| Insulation Wall Thickness | 0.8mm | |
| Harmonised Code | H07Z-R | |
| Size of Strands | mm | |
| Number of Strands | 7 | |
| Outer Sheath Material | XL HFFR | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 2.5mm² | ||
Sheath Colour Black | ||
American Wire Gauge 14 AWG | ||
Cable Shape Round | ||
Core Strands 7/0.67 mm | ||
Length 100m | ||
Insulation Material Polyolefin Cross-linked EI5, Type EI 5 to EN 50363-5 | ||
European Harmonised Code H07Z-R | ||
Outer Diameter 3.3 → 4.1mm | ||
Voltage Rating 750 V | ||
Maximum Operating Temperature +70°C | ||
CPR Certification Eca | ||
Conductor Material Copper | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Series 6491B | ||
Insulation Wall Thickness 0.8mm | ||
Harmonised Code H07Z-R | ||
Size of Strands mm | ||
Number of Strands 7 | ||
Outer Sheath Material XL HFFR | ||
- COO (Country of Origin):
- TR
6491B H07Z-R Conduit Cable 100m
6491BX Conduit Cable H07Z-R can be used with power and lighting circuits and building wire.
For use in semi-flush exposed conduits and embedded conduits
Can be used in closed installation ducts
Ideal for internal appliance wiring
Class 2 stranded coper conductor
PVC insulation
Flame retardant
Can be used in closed installation ducts
Ideal for internal appliance wiring
Class 2 stranded coper conductor
PVC insulation
Flame retardant
Standards
EN 50525-3-41, Class 2 IEC 60228, EN 50363-5, IEC 60332-1, RoHS
