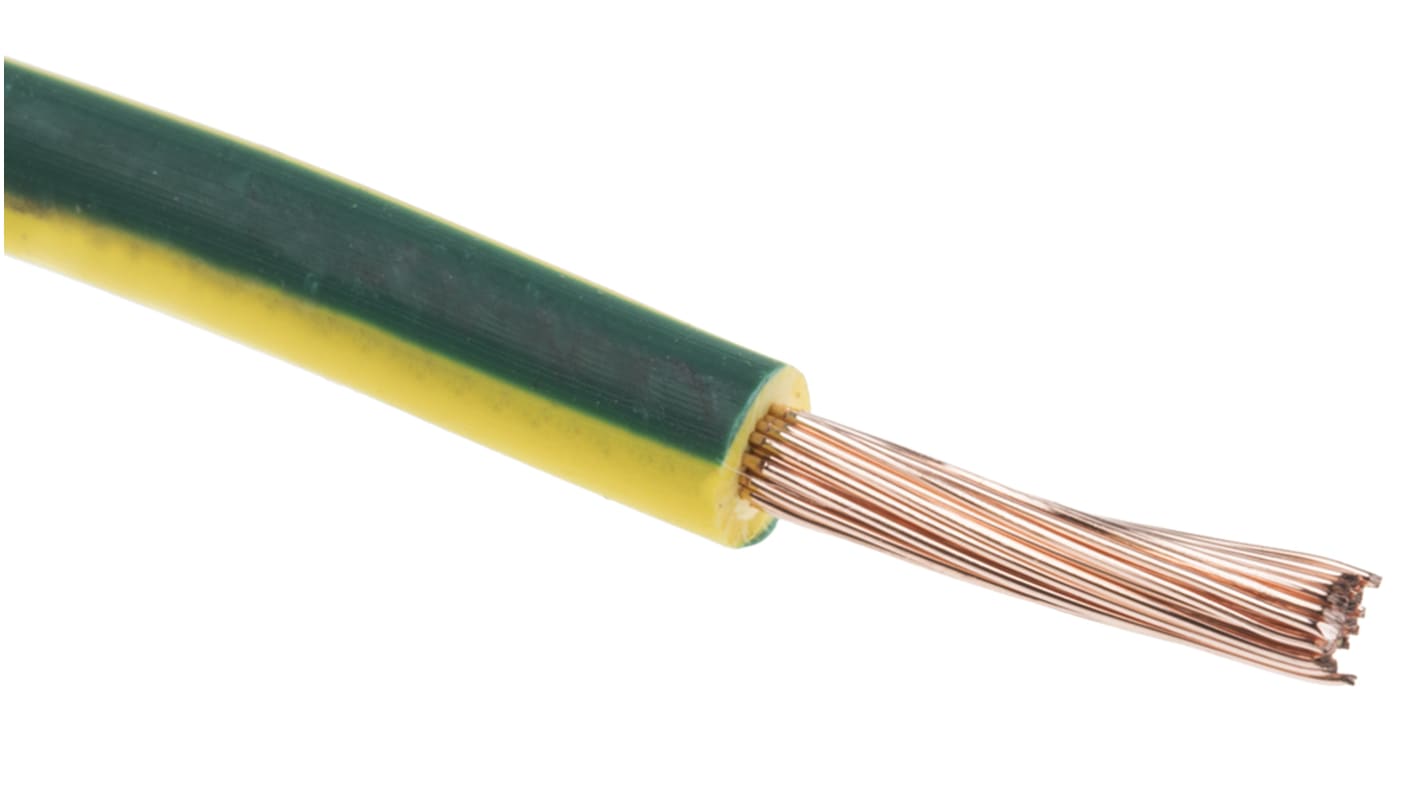

RS PRO Green/Yellow 1.5mm² Hook Up Wire, 16 AWG, 7/0.53 mm, 100m, PVC Insulation
- RS Stock No.:
- 836-0868
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£49.13
(exc. VAT)
£58.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £49.13 | £0.491 |
*price indicative
- RS Stock No.:
- 836-0868
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 1.5mm² | |
Sheath Colour | Green/Yellow | |
Cable Shape | Round | |
American Wire Gauge | 16 AWG | |
Core Strands | 7/0.53 mm | |
Length | 100m | |
Insulation Material | PVC | |
European Harmonised Code | H07V-R | |
Voltage Rating | 750 V | |
Outer Diameter | 2.7 → 3.3mm | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Conductor Material | Copper | |
Standards Met | Euroclass Eca | |
Fire Behaviour | Flame Retardant | |
Series | 6491X | |
Insulation Wall Thickness | 0.7mm | |
Harmonised Code | H07V-R | |
Size of Strands | mm | |
Number of Strands | 7 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5mm² | ||
Sheath Colour Green/Yellow | ||
Cable Shape Round | ||
American Wire Gauge 16 AWG | ||
Core Strands 7/0.53 mm | ||
Length 100m | ||
Insulation Material PVC | ||
European Harmonised Code H07V-R | ||
Voltage Rating 750 V | ||
Outer Diameter 2.7 → 3.3mm | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Series 6491X | ||
Insulation Wall Thickness 0.7mm | ||
Harmonised Code H07V-R | ||
Size of Strands mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- TR
RS PRO 6491X H07V-R Conduit Cable, 1.5 mm² CSA, 750 V, Green/Yellow
Looking for a conduit cable for use with your closed systems, control gears or light fittings? This 7-strand 1.5 mm² CSA conduit cable from RS PRO is just what you need. The 6491X H07V-R harmonised cable is designed for a wide range of applications such as power and lighting circuits, building wire and closed installation ducts.
Thanks to its speed capacity and mechanical strength, the 6491X conduit cable is ideal for the internal wiring of appliances. It's flame-retardant so won't catch alight easily and is PVC-insulated for added protection.
This RS PRO conduit cable meets various international safety standards including the EU's directive on the Restriction of Hazardous Substances (RoHS), meaning it contains only minimal amounts of any harmful substances. The product's International Electrochemical Commission 60228 approval means it's recognised as a safe conductor for use in insulated cables.
Thanks to its speed capacity and mechanical strength, the 6491X conduit cable is ideal for the internal wiring of appliances. It's flame-retardant so won't catch alight easily and is PVC-insulated for added protection.
This RS PRO conduit cable meets various international safety standards including the EU's directive on the Restriction of Hazardous Substances (RoHS), meaning it contains only minimal amounts of any harmful substances. The product's International Electrochemical Commission 60228 approval means it's recognised as a safe conductor for use in insulated cables.
Features and Benefits
• Three-year warranty
• Euroclass Eca standards met
• Insulation wall thickness of 0.7 mm
• Outer diameter of 2.7 mm to 3.3 mm
• Voltage rating of 750 V
• Class 2 IEC 60228 conductor
• Operating temperature range of -5°C to +70°C
• Type TI 1 to EN 50363-3 PVC insulation
• Euroclass Eca standards met
• Insulation wall thickness of 0.7 mm
• Outer diameter of 2.7 mm to 3.3 mm
• Voltage rating of 750 V
• Class 2 IEC 60228 conductor
• Operating temperature range of -5°C to +70°C
• Type TI 1 to EN 50363-3 PVC insulation
