Lapp ÖLFLEX® Series White 6 mm² Hook Up Wire, 100m, PVC Insulation
- RS Stock No.:
- 815-8429
- Mfr. Part No.:
- 4520054
- Brand:
- Lapp
16 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£264.04
(exc. VAT)
£316.85
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £264.04 | £2.64 |
| 5 - 9 | £250.84 | £2.508 |
| 10 + | £237.64 | £2.376 |
| *price indicative | ||
- RS Stock No.:
- 815-8429
- Mfr. Part No.:
- 4520054
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

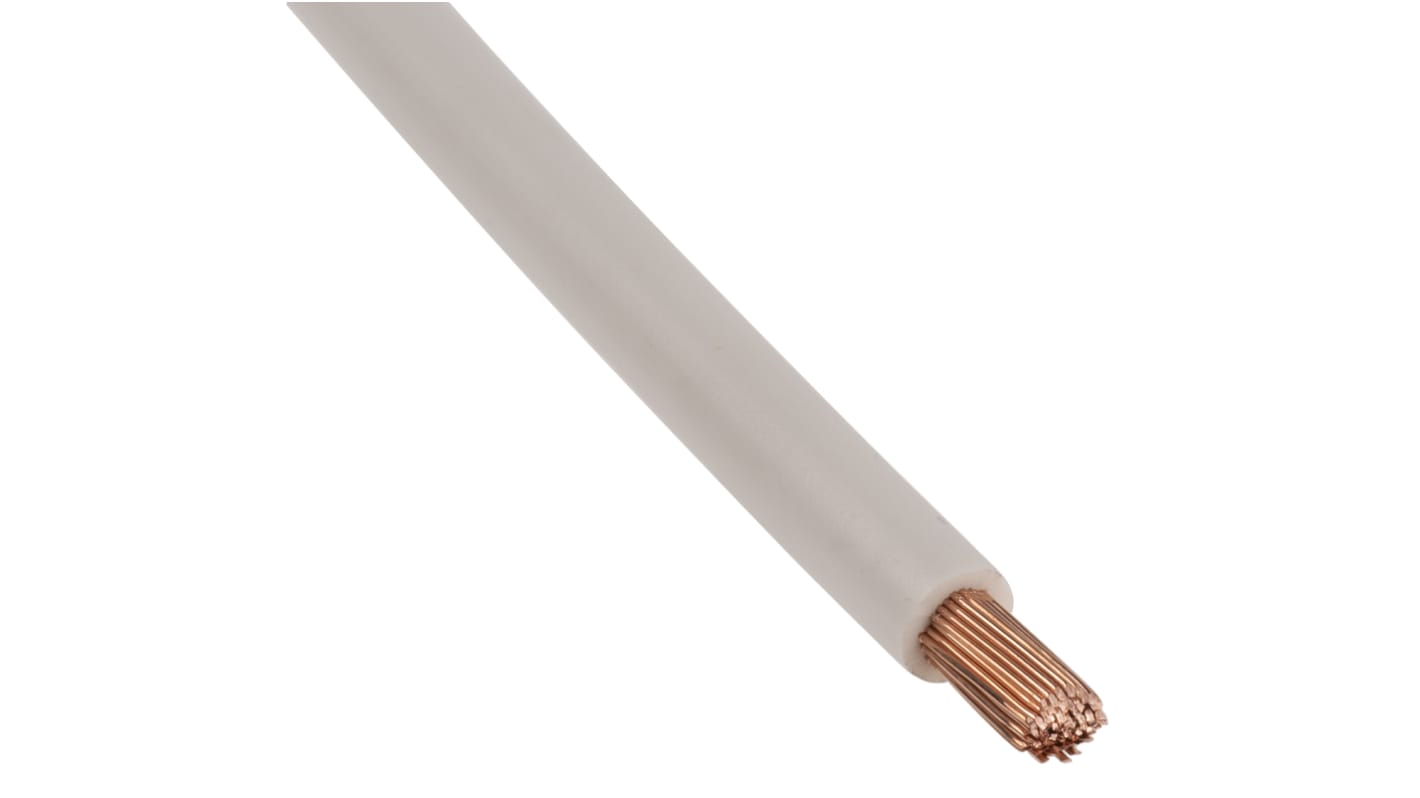

Lapp H07V-K Single Core Wire
From Lapp, this H07V-K harmonised single-core wire is ideal for power and control applications. The cable consists of a fine-wired copper conductor of bare copper strands with a flame-retardant PVC insulation.
The wire features a mark for recognized suitability when used in European equipment and machinery.
Features and Benefits
• Flexible and Versatile Hook Up Wire
• HAR certification
• Flame-retardant according IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C
• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
Applications
This flame retardant hook-up wire is ideal for wiring in devices and control cabinets, and as such is often used in a variety of applications, such as;
• Power Management
• Industrial Machinery
• Medical Equipment
The H07V-K cables are able to be used in closed installation ducts, and in pipes and tubing even when encased in plaster. These cables may not be used for direct laying on racks, troughs and tubes.
Frequently Asked Questions
Can this wire be used outdoors?
Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
The wire features a
Features and Benefits
• Flexible and Versatile Hook Up Wire
• HAR certification
• Flame-retardant according IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C
• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
Applications
This flame retardant hook-up wire is ideal for wiring in devices and control cabinets, and as such is often used in a variety of applications, such as;
• Power Management
• Industrial Machinery
• Medical Equipment
The H07V-K cables are able to be used in closed installation ducts, and in pipes and tubing even when encased in plaster. These cables may not be used for direct laying on racks, troughs and tubes.
Frequently Asked Questions
Can this wire be used outdoors?
Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
Standards
EN 50525-2-31, IEC 60332-1-2, HAR, RoHS, CE
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 6 mm² |
| Sheath Colour | White |
| Cable Shape | Single Core |
| Length | 100m |
| European Harmonised Code | H07V-K |
| Insulation Material | PVC |
| Voltage Rating | 450/750 V |
| Outer Diameter | 5.3mm |
| Minimum Operating Temperature | -30°C |
| CPR Certification | Eca |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Bare Copper |
| Series | ÖLFLEX® |
| Number of Strands | 7 |
- RS Stock No.:
- 815-8429
- Mfr. Part No.:
- 4520054
- Brand:
- Lapp
