Lapp ÖLFLEX® Series Black 4 mm² Hook Up Wire, 100m, PVC Insulation, 4520013
- RS Stock No.:
- 812-4573
- Distrelec Article No.:
- 300-49-630
- Mfr. Part No.:
- 4520013
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£167.51
(exc. VAT)
£201.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £167.51 | £1.675 |
*price indicative
- RS Stock No.:
- 812-4573
- Distrelec Article No.:
- 300-49-630
- Mfr. Part No.:
- 4520013
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 4 mm² | |
| Sheath Colour | Black | |
| Cable Shape | Single Core | |
| Length | 100m | |
| European Harmonised Code | H07V-K | |
| Insulation Material | PVC | |
| Outer Diameter | 4.8mm | |
| Voltage Rating | 450 V, 750 V | |
| Minimum Operating Temperature | -40°C | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +80°C | |
| Conductor Material | Bare Copper | |
| Standards Met | EAC | |
| Series | ÖLFLEX® | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 4 mm² | ||
Sheath Colour Black | ||
Cable Shape Single Core | ||
Length 100m | ||
European Harmonised Code H07V-K | ||
Insulation Material PVC | ||
Outer Diameter 4.8mm | ||
Voltage Rating 450 V, 750 V | ||
Minimum Operating Temperature -40°C | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Conductor Material Bare Copper | ||
Standards Met EAC | ||
Series ÖLFLEX® | ||
- COO (Country of Origin):
- DE

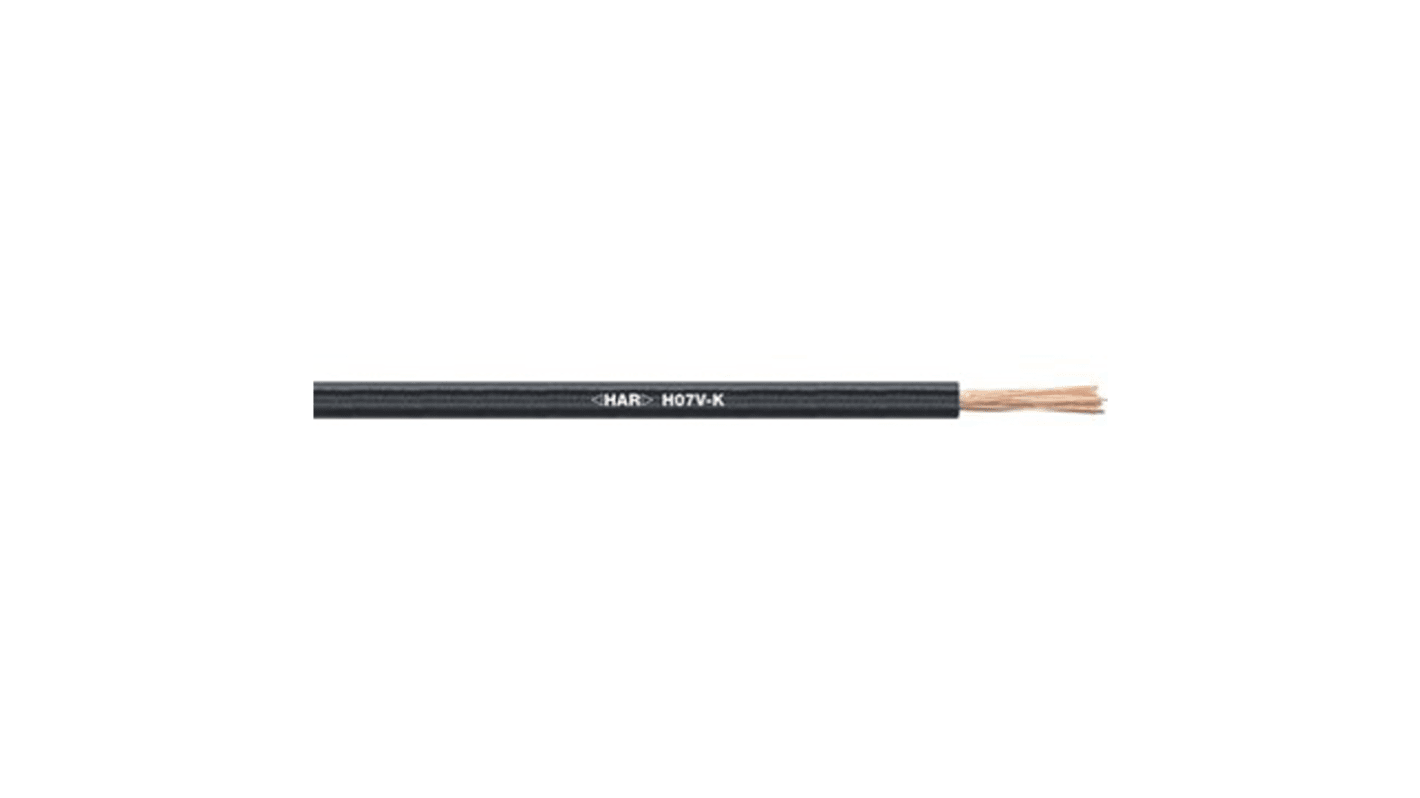

LAPP Hookup And Equipment Wire, 100m Length, 4.8mm OD - 4520013
Use this hookup wire from LAPP to connect your equipment and machinery to an electrical power supply. Its copper conductors provide a stable and reliable connection, while a PVC (polyvinyl chloride) outer sheath insulates against electric shocks. This material also withstands impact and abrasion, so you can rely on the cable for use in harsh environments. For easy handling, the wire is supplied on a reel – cut what you need for each job from its 100m length.
Features & Benefits
• Light weight of 45kg/km for easy handling
• Compact outer diameter of 4.8mm for space efficiency in small enclosures
• Wide operating temperature range of -30°C to +80°C for use in industrial and commercial environments
• Voltage rating of 450/750V for versatile use in both low-voltage and high-voltage applications
• Compact outer diameter of 4.8mm for space efficiency in small enclosures
• Wide operating temperature range of -30°C to +80°C for use in industrial and commercial environments
• Voltage rating of 450/750V for versatile use in both low-voltage and high-voltage applications
Applications
• Power management systems
• Manufacturing machinery
• Medical equipment
• Manufacturing machinery
• Medical equipment
What does H07V-K mean in relation to this cable?
H07V-K is a code to indicate this cable belongs to the harmonised reference system. The code signifies the cable is harmonised (H), has a voltage rating of 450/750V (07), a PVC outer sheath (V) and has a single-core copper conductor (K).
