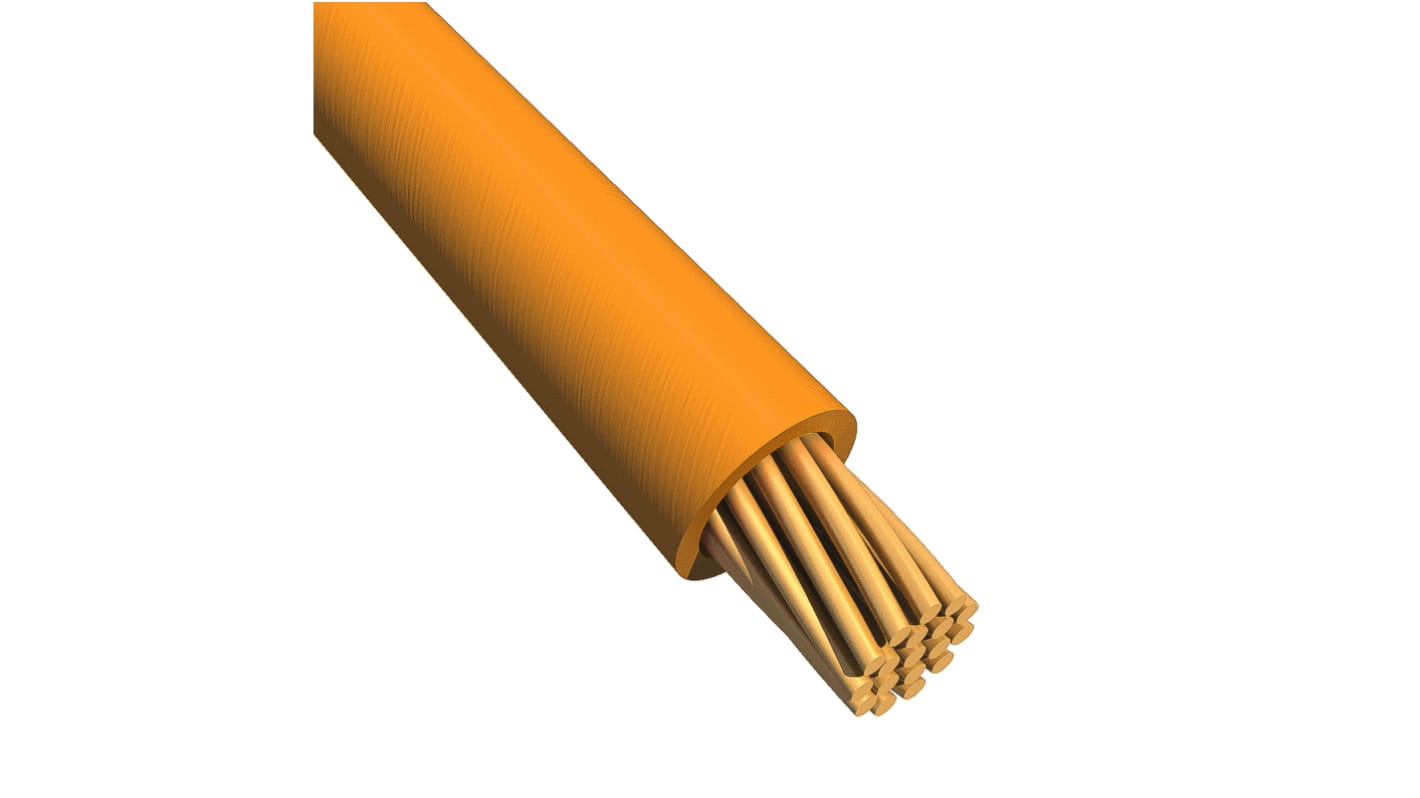

Alpha Wire Ecogen Ecowire Series Orange 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 305m, MPPE Insulation

RS Stock No.:: 741-8004
Mfr. Part No.:: 6711 OR001
Brand:: Alpha Wire

Alpha Wire Ecogen Ecowire Series Orange 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 305m, MPPE Insulation

11 In stock - FREE next working day delivery available

Price 1 Reel of 305 Metre(s)

£97.53

(exc. VAT)

£117.04

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 - 4	£97.53	£0.32
5 - 9	£93.15	£0.305
10 +	£88.76	£0.291

*price indicative

RS Stock No.:: 741-8004
Mfr. Part No.:: 6711 OR001
Brand:: Alpha Wire

Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series

EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

What is UL/CSA standard?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.

CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.

Product Application Information

Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant

EcoWire ™

Attribute	Value
Cross Sectional Area	0.13 mm²
Sheath Colour	Orange
Cable Shape	Single Core
American Wire Gauge	26 AWG
Core Strands	7/0.16 mm
Length	305m
Insulation Material	MPPE
Voltage Rating	600 V
Outer Diameter	0.97mm
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-40°C
Conductor Material	Copper
Standards Met	CE, CSA, UL
Wire Style	UL11028
Series	Ecogen Ecowire
Shield Type	Unshielded
Insulation Wall Thickness	0.3mm
Number of Strands	7
Size of Strands	0.16 mm
