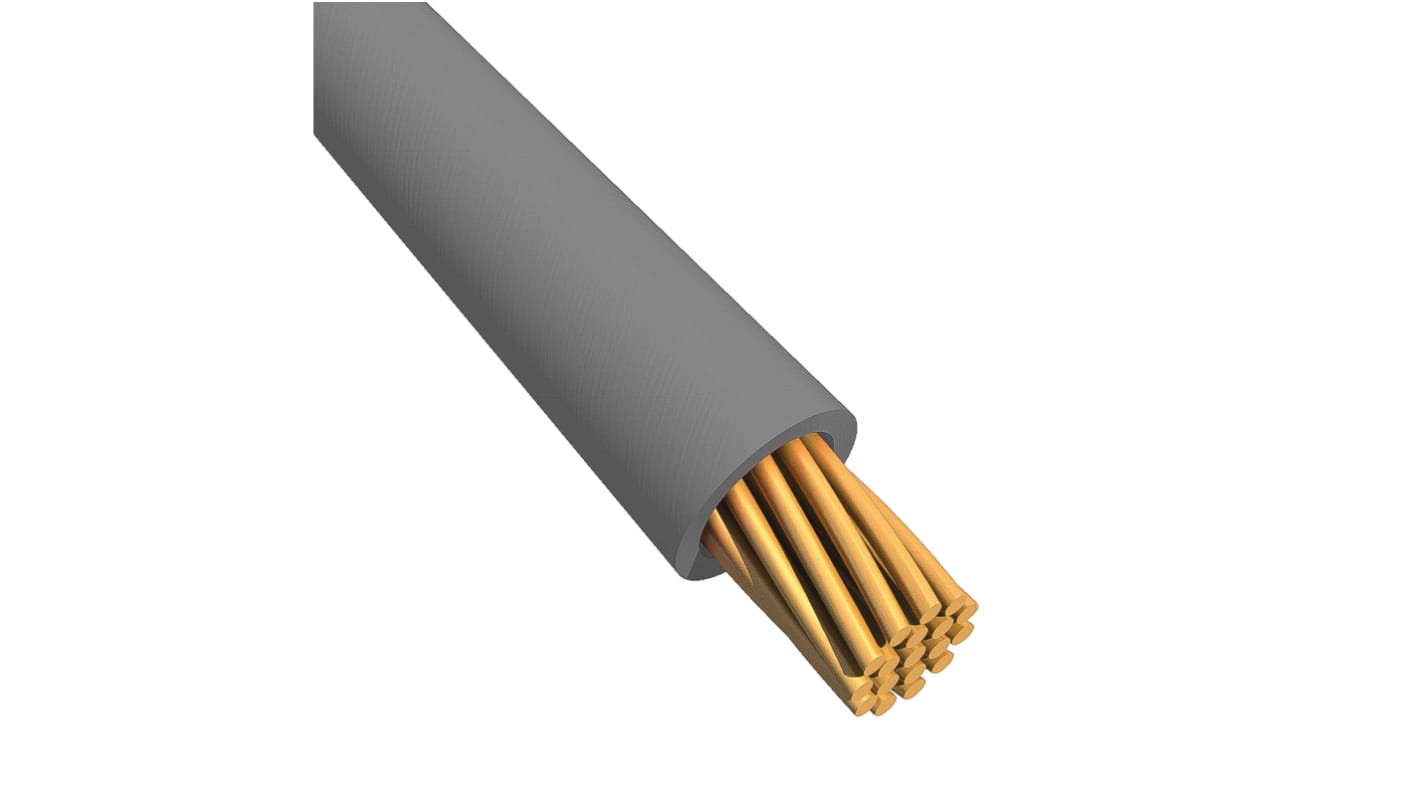

Alpha Wire Ecogen Ecowire Series Grey 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 305m, MPPE Insulation, 6711 SL001
- RS Stock No.:
- 741-7994
- Mfr. Part No.:
- 6711 SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£119.51
(exc. VAT)
£143.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £119.51 | £0.392 |
*price indicative
- RS Stock No.:
- 741-7994
- Mfr. Part No.:
- 6711 SL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Grey | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.16 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Outer Diameter | 0.97mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Series | Ecogen Ecowire | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Grey | ||
American Wire Gauge 26 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.16 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Outer Diameter 0.97mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Series Ecogen Ecowire | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 7 | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.13 mm² Cross Sectional Area, 600V Voltage Rating - 6711 SL005
This hook up wire is a high-temperature, single-core cable designed for reliable performance in both electrical and mechanical applications. With a cross-sectional area of 0.13 mm² and a sheath colour of grey, it offers excellent flexibility and usability across various environments. The wire has a length of 30m, making it suitable for medium-distance wiring tasks.
Features & Benefits
• Tinned copper ensures excellent conductivity and corrosion resistance
• MPPE insulation provides thermal stability and durability
• Rated for 600V, ideal for a range of electrical systems
• Operating temperature range of -40 °C to +105 °C enhances versatility
• Seven core strands improve flexibility during installation
• Meets UL11028 wire standards for high-quality assurance
• MPPE insulation provides thermal stability and durability
• Rated for 600V, ideal for a range of electrical systems
• Operating temperature range of -40 °C to +105 °C enhances versatility
• Seven core strands improve flexibility during installation
• Meets UL11028 wire standards for high-quality assurance
Applications
• Utilised in automation systems for secure connections
• Suitable for custom wiring in electronic devices
• Employed in control panels where high-temperature resilience is required
• Ideal for internal wiring in appliances needing effective insulation
• Suitable for custom wiring in electronic devices
• Employed in control panels where high-temperature resilience is required
• Ideal for internal wiring in appliances needing effective insulation
What makes the insulation material particularly advantageous for challenging environments?
The MPPE insulation is designed to withstand high temperatures, ensuring reliable performance even in demanding conditions from -40 °C to +105 °C, effectively preventing degradation over time.
How does the wire's construction contribute to its reliability in electrical systems?
The use of tinned copper enhances conductivity while preventing oxidation, ensuring consistent performance. Additionally, the unshielded design allows easy integration into various setups without interference.
What factors should be considered when installing this type of wire?
Installers should ensure the maximum bend radius is maintained, which should be ten times the cable diameter. Additionally, confirming the wire's compatibility with the applied voltage and operating temperatures is crucial for optimal performance.
EcoWire ™
