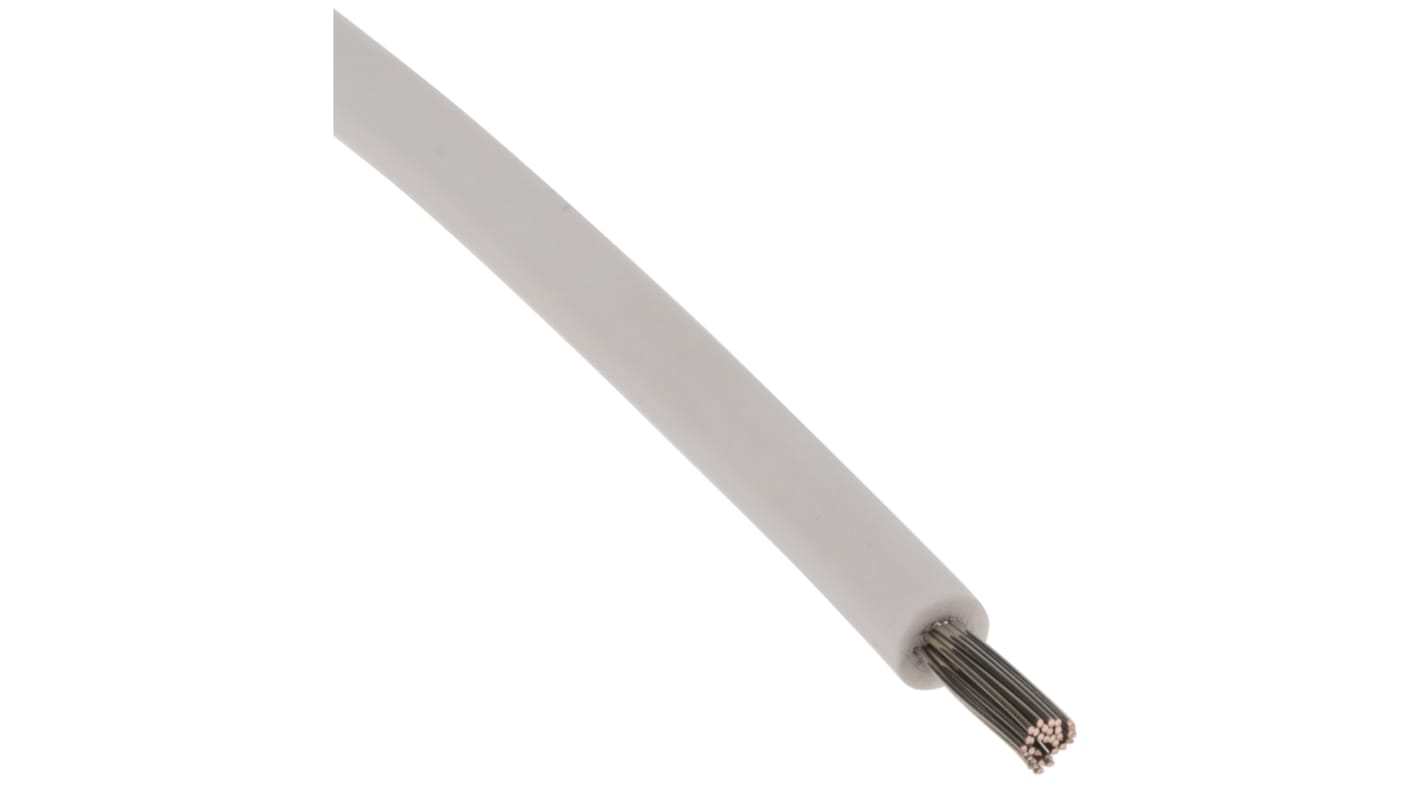

Lapp ÖLFLEX HEAT Series White 1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm, 100m, Silicone Insulation, 50105
- RS Stock No.:
- 724-4535
- Distrelec Article No.:
- 301-58-404
- Mfr. Part No.:
- 50105
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£74.26
(exc. VAT)
£89.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 16 unit(s) shipping from 23 October 2025
- Plus 4 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £74.26 | £0.743 |
*price indicative
- RS Stock No.:
- 724-4535
- Distrelec Article No.:
- 301-58-404
- Mfr. Part No.:
- 50105
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | White | |
| Cable Shape | Single Core | |
| American Wire Gauge | 17 AWG | |
| Core Strands | 19/0.25 mm | |
| Length | 100m | |
| Insulation Material | Silicone | |
| Outer Diameter | 2.5mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +180°C | |
| CPR Certification | Eca | |
| Conductor Material | Copper | |
| Cable Type | High Temperature | |
| Series | ÖLFLEX HEAT | |
| Shield Type | Unshielded | |
| Number of Strands | 1 | |
| Resistant To | Chemicals, Oils | |
| Size of Strands | 0.25 mm | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour White | ||
Cable Shape Single Core | ||
American Wire Gauge 17 AWG | ||
Core Strands 19/0.25 mm | ||
Length 100m | ||
Insulation Material Silicone | ||
Outer Diameter 2.5mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +180°C | ||
CPR Certification Eca | ||
Conductor Material Copper | ||
Cable Type High Temperature | ||
Series ÖLFLEX HEAT | ||
Shield Type Unshielded | ||
Number of Strands 1 | ||
Resistant To Chemicals, Oils | ||
Size of Strands 0.25 mm | ||
LAPP ÖLFLEX HEAT Series Hook Up Wire, 1 mm² Cross Sectional Area, 300V Voltage Rating - 50105
This hook-up wire is a versatile, single-core cable designed for high-temperature applications, offering a maximum operating temperature of +180°C. With a cross-sectional area of 1 mm², this silicone-insulated wire is particularly suitable for environments where traditional insulation may fail. The wire's unshielded design ensures ease of installation and flexibility in various setups.
Features & Benefits
• High temperature resistance up to +180°C ensures durability
• Flame retardant properties enhance safety in installations
• Halogen-free design mitigates toxic emissions during combustion
• Chemical resistance enables usage in harsh environments
• Copper conductor provides excellent conductivity and strength
• Lightweight and flexible for easy routing through tight spaces
• Flame retardant properties enhance safety in installations
• Halogen-free design mitigates toxic emissions during combustion
• Chemical resistance enables usage in harsh environments
• Copper conductor provides excellent conductivity and strength
• Lightweight and flexible for easy routing through tight spaces
Applications
• Perfect for control cabinet manufacturing and appliance engineering
• Used in the electric motor industry and sauna construction
• Ideal for air conditioning and lighting technology
• Suitable for thermal elements and generator manufacturing
• Used in the electric motor industry and sauna construction
• Ideal for air conditioning and lighting technology
• Suitable for thermal elements and generator manufacturing
How does the silicone insulation impact performance in extreme temperatures?
The silicone insulation retains its integrity at high temperatures, ensuring continued performance in environments that would compromise standard insulation materials. This capability allows for uninterrupted operation, even in conditions reaching +180°C.
What advantages does the wire's chemical resistance provide?
The chemical resistance ensures that the wire can withstand exposure to various substances, including oils and fats, making it ideal for use in industrial applications where such conditions are prevalent without degrading the wire's performance.
Can this hook-up wire be bent or shaped without affecting its function?
Yes, this wire's flexible nature allows it to be bent and routed around obstacles without compromising its electrical integrity, provided the minimum bending radius guidelines are followed.
What installation considerations should be taken into account?
Adequate ventilation is important when operating at higher temperatures, as silicone cables may lose mechanical properties in environments lacking air circulation. It's essential to adhere to these guidelines for optimal performance.
