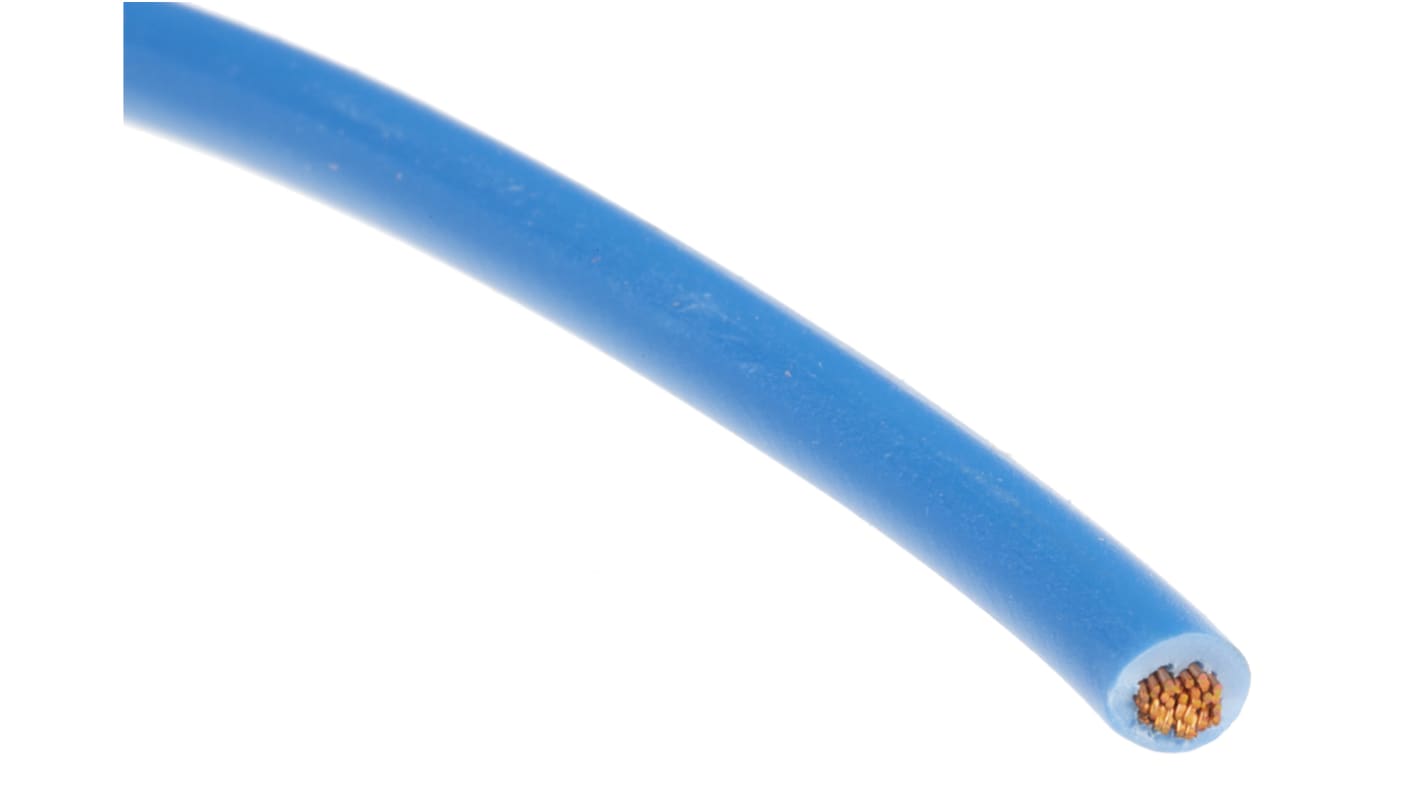

Lapp ÖLFLEX HEAT Series Blue 0.5 mm² Hook Up Wire, 20 AWG, 19/0.25 mm, 100m, Silicone Insulation, 48002
- RS Stock No.:
- 724-4471
- Distrelec Article No.:
- 301-58-379
- Mfr. Part No.:
- 48002
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£45.63
(exc. VAT)
£54.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £45.63 | £0.456 |
*price indicative
- RS Stock No.:
- 724-4471
- Distrelec Article No.:
- 301-58-379
- Mfr. Part No.:
- 48002
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 0.5 mm² | |
| Sheath Colour | Blue | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 19/0.25 mm | |
| Length | 100m | |
| Insulation Material | Silicone | |
| Voltage Rating | 300 V | |
| Outer Diameter | 2.1mm | |
| CPR Certification | Eca | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +180°C | |
| Conductor Material | Copper | |
| Cable Type | High Temperature | |
| Series | ÖLFLEX HEAT | |
| Shield Type | Unshielded | |
| Resistant To | Chemicals, Oils | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 1 | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 0.5 mm² | ||
Sheath Colour Blue | ||
American Wire Gauge 20 AWG | ||
Cable Shape Single Core | ||
Core Strands 19/0.25 mm | ||
Length 100m | ||
Insulation Material Silicone | ||
Voltage Rating 300 V | ||
Outer Diameter 2.1mm | ||
CPR Certification Eca | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +180°C | ||
Conductor Material Copper | ||
Cable Type High Temperature | ||
Series ÖLFLEX HEAT | ||
Shield Type Unshielded | ||
Resistant To Chemicals, Oils | ||
Size of Strands 0.25 mm | ||
Number of Strands 1 | ||
- COO (Country of Origin):
- IT
Olflex Heat 180 SiF
From Lapp, the OLFLEX HEAT is a single core cable with excellent temperature resistance. It features a silicone based insulation that makes it ideal for use in high temperature environments where conventional core insulation will brittle.
The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.
Features and Benefits
• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications
Applications
The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;
• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.
Features and Benefits
• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications
Applications
The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;
• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
Note
These are supplied coiled and shrink wrapped NOT on a reel.
