Helukabel SiF Series Black 1.5 mm² Hook Up Wire, 15 AWG, 100 m, Polyvinyl Chloride, 29129
- RS Stock No.:
- 288-1837
- Distrelec Article No.:
- 300-09-515
- Mfr. Part No.:
- 29129
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£47.40
(exc. VAT)
£56.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,300 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 + | £0.474 | £47.40 |
*price indicative
- RS Stock No.:
- 288-1837
- Distrelec Article No.:
- 300-09-515
- Mfr. Part No.:
- 29129
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Cross Sectional Area | 1.5 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Black | |
| American Wire Gauge | 15AWG | |
| Cable Length | 100m | |
| Voltage | 2000 V | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Tinned Copper | |
| Minimum Operating Temperature | -60°C | |
| Cable Type | Stranded | |
| Sub Type | Hookup Wire | |
| Standards/Approvals | DIN VDE 0250, IEC 60228, RoHS, 2006/95/EG, EC | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant | |
| Series | SiF | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Cross Sectional Area 1.5 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Black | ||
American Wire Gauge 15AWG | ||
Cable Length 100m | ||
Voltage 2000 V | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Tinned Copper | ||
Minimum Operating Temperature -60°C | ||
Cable Type Stranded | ||
Sub Type Hookup Wire | ||
Standards/Approvals DIN VDE 0250, IEC 60228, RoHS, 2006/95/EG, EC | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant | ||
Series SiF | ||
- COO (Country of Origin):
- DE

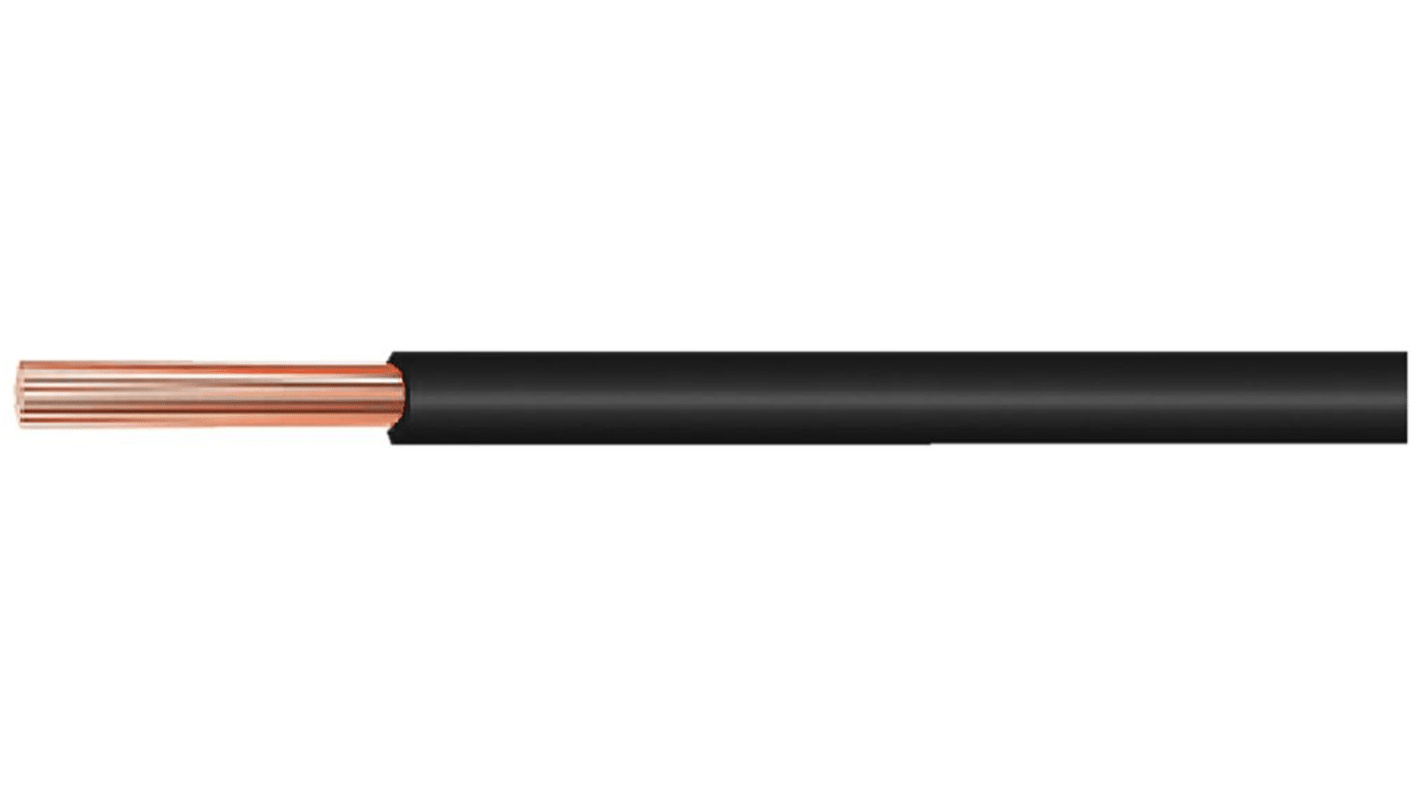

The stranded wire cable is designed for various electrical applications. It features PVC single cores with fine wire stranded construction, making it suitable for use in tubes, under and surface mounting of plasters, and closed installation conduits.
PVC single cores with fine wire stranded construction
Temperature range flexibility of -30°C to +80°C for fixed installation and -5°C to +70°C for flexing
High nominal voltage of U/U 450/750 V
Suitable for various electrical applications
Conforms with
