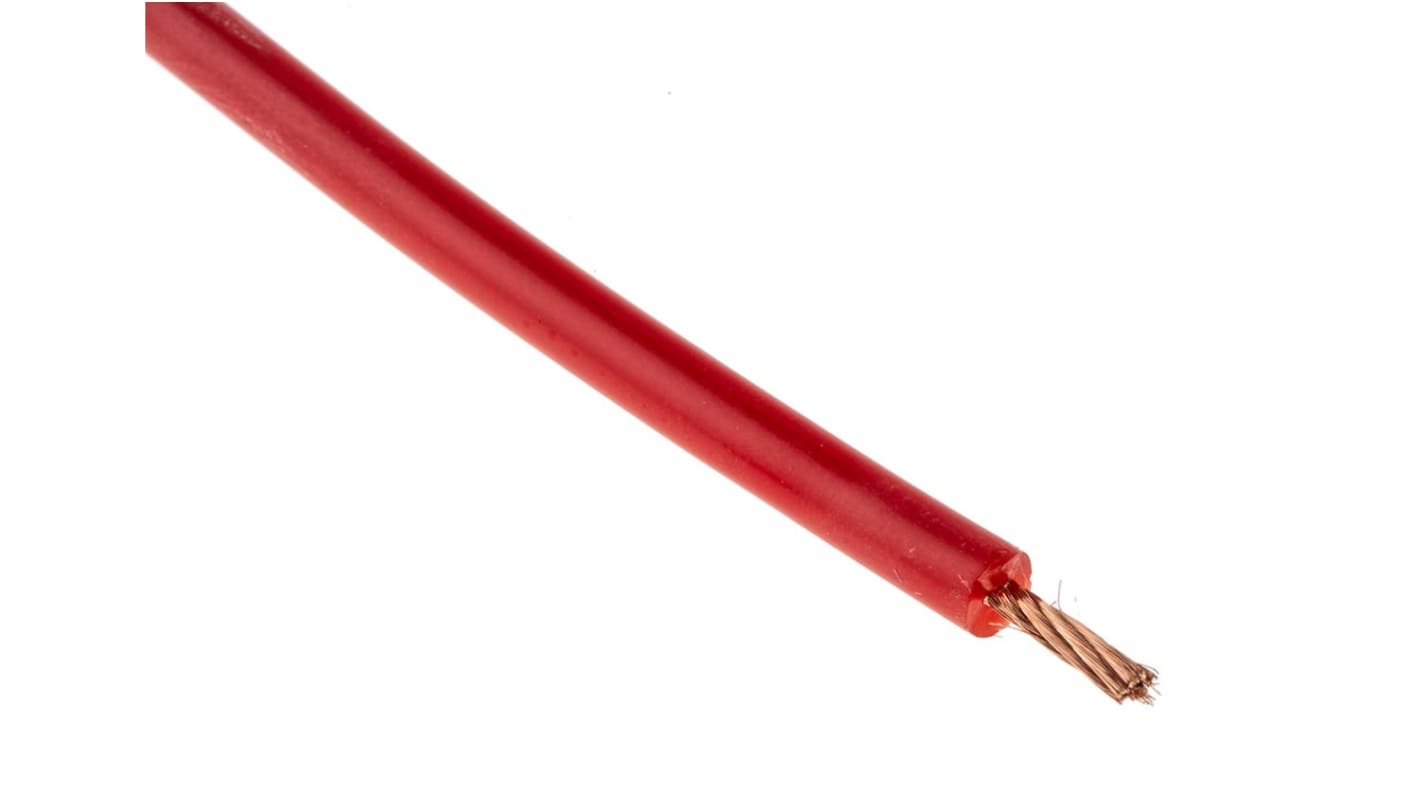

Hew Heinz Eilentropp SIFF Series Red 1.1 mm² Hook Up Wire, 17 AWG, 516, 100 m, 13433-03-100
- RS Stock No.:
- 222-5510
- Mfr. Part No.:
- 13433-03-100
- Brand:
- Hew Heinz Eilentropp
Subtotal (1 reel of 100 metres)*
£444.47
(exc. VAT)
£533.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £444.47 | £4.445 |
*price indicative
- RS Stock No.:
- 222-5510
- Mfr. Part No.:
- 13433-03-100
- Brand:
- Hew Heinz Eilentropp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hew Heinz Eilentropp | |
| Cross Sectional Area | 1.1 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 17AWG | |
| Core Strands | 516 | |
| Cable Length | 100m | |
| Voltage | 1.5 kV | |
| Outside Diameter | 3.7 mm | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -50°C | |
| Standards/Approvals | IEC60332-1-2, BASEC, BS4109, BS4808, BS EN13062, CENELEC HD21.5, CSA TEW, DEF STAN 61-12 Part29/1, DEF STAN 61-12 Part 6, HAR, IEC 60227-5, IEC 60228 Css 5, IEC60332-1, ISO9001, Mil Spec, REACH, RoHS, TS 9760 HD 21.5.S3, UL1007, UL1015, UL1213, UL1581 VW-1, VD0281-5, VD2050 | |
| Fire Behaviour | CPR, Fire Resistant, Flame Retardant, Low Smoke Halogen Free | |
| Series | SIFF | |
| Select all | ||
|---|---|---|
Brand Hew Heinz Eilentropp | ||
Cross Sectional Area 1.1 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 17AWG | ||
Core Strands 516 | ||
Cable Length 100m | ||
Voltage 1.5 kV | ||
Outside Diameter 3.7 mm | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Copper | ||
Minimum Operating Temperature -50°C | ||
Standards/Approvals IEC60332-1-2, BASEC, BS4109, BS4808, BS EN13062, CENELEC HD21.5, CSA TEW, DEF STAN 61-12 Part29/1, DEF STAN 61-12 Part 6, HAR, IEC 60227-5, IEC 60228 Css 5, IEC60332-1, ISO9001, Mil Spec, REACH, RoHS, TS 9760 HD 21.5.S3, UL1007, UL1015, UL1213, UL1581 VW-1, VD0281-5, VD2050 | ||
Fire Behaviour CPR, Fire Resistant, Flame Retardant, Low Smoke Halogen Free | ||
Series SIFF | ||
- COO (Country of Origin):
- DE
SIFF silicon conductor strand, 1 mm²
Silicon-insulated stranded cables
Notch-resistant insulation
Highly twisted copper stranded conductors
Particularly well-suited to test leads
High flexibility, maintained within a temperature range of -50°C → +180°C
Highly resistant to contact with soldering irons
