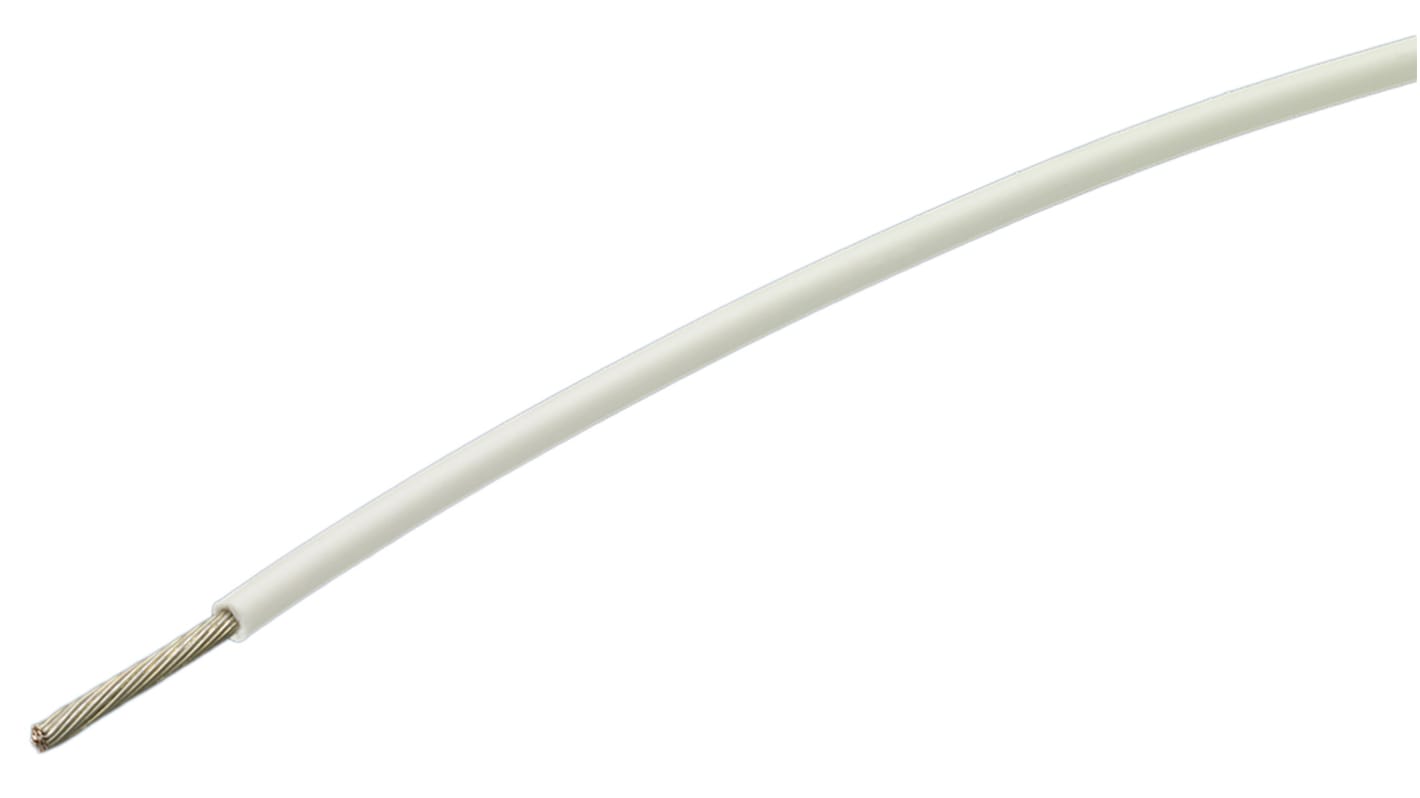

TE Connectivity FlexLite Series White 1 mm² Equipment Wire, 17 AWG, 19/0.25 mm, 100m, Polyolefin Insulation
- RS Stock No.:
- 208-5766
- Mfr. Part No.:
- FLT0111-1.00-9
- Brand:
- TE Connectivity
10 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£106.66
(exc. VAT)
£127.99
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £106.66 | £1.067 |
| 5 - 9 | £101.32 | £1.013 |
| 10 + | £95.99 | £0.96 |
| *price indicative | ||
- RS Stock No.:
- 208-5766
- Mfr. Part No.:
- FLT0111-1.00-9
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
FlexLite UL Wire
Flexible, double insulated high performance wire that can be used for industrial and commercial applications. These include control panels, electrical appliances, electric motors and robotics.
Features & Benefits
• Flexible with non-melting insulation
• Enables bundles to be routed through areas where conventional wires cannot be used
• UL style 1385
• CSA Class 5851
• Dual wall insulation (Class 2 equipment)
• Meets requirements of VW-1 Flammability
• Excellent fluid and chemical resistance
• 150°C spec WCD645
• 600 V rated
• Lightweight and small size
• Flexible with non-melting insulation
• Enables bundles to be routed through areas where conventional wires cannot be used
• UL style 1385
• CSA Class 5851
• Dual wall insulation (Class 2 equipment)
• Meets requirements of VW-1 Flammability
• Excellent fluid and chemical resistance
• 150°C spec WCD645
• 600 V rated
• Lightweight and small size
Standards
UL1385
Standards
UL 1385; CAS Class 5851
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1 mm² |
| Sheath Colour | White |
| Cable Shape | Single Core |
| American Wire Gauge | 17 AWG |
| Core Strands | 19/0.25 mm |
| Length | 100m |
| Insulation Material | Polyolefin |
| Voltage Rating | 600 V |
| Outer Diameter | 1.7mm |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -65°C |
| Conductor Material | Tinned Copper |
| Standards Met | UL Listed |
| Fire Behaviour | Flame Retardant, Low Smoke Density, Self-extinguishing |
| Series | FlexLite |
| Number of Strands | 19 |
| Size of Strands | 0.25 mm |
