- RS Stock No.:
- 201-0618
- Mfr. Part No.:
- KY3003O
- Brand:
- AXINDUS
5 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 200 Metre(s)
£59.02
(exc. VAT)
£70.82
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £59.02 | £0.295 |
*price indicative |
- RS Stock No.:
- 201-0618
- Mfr. Part No.:
- KY3003O
- Brand:
- AXINDUS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details

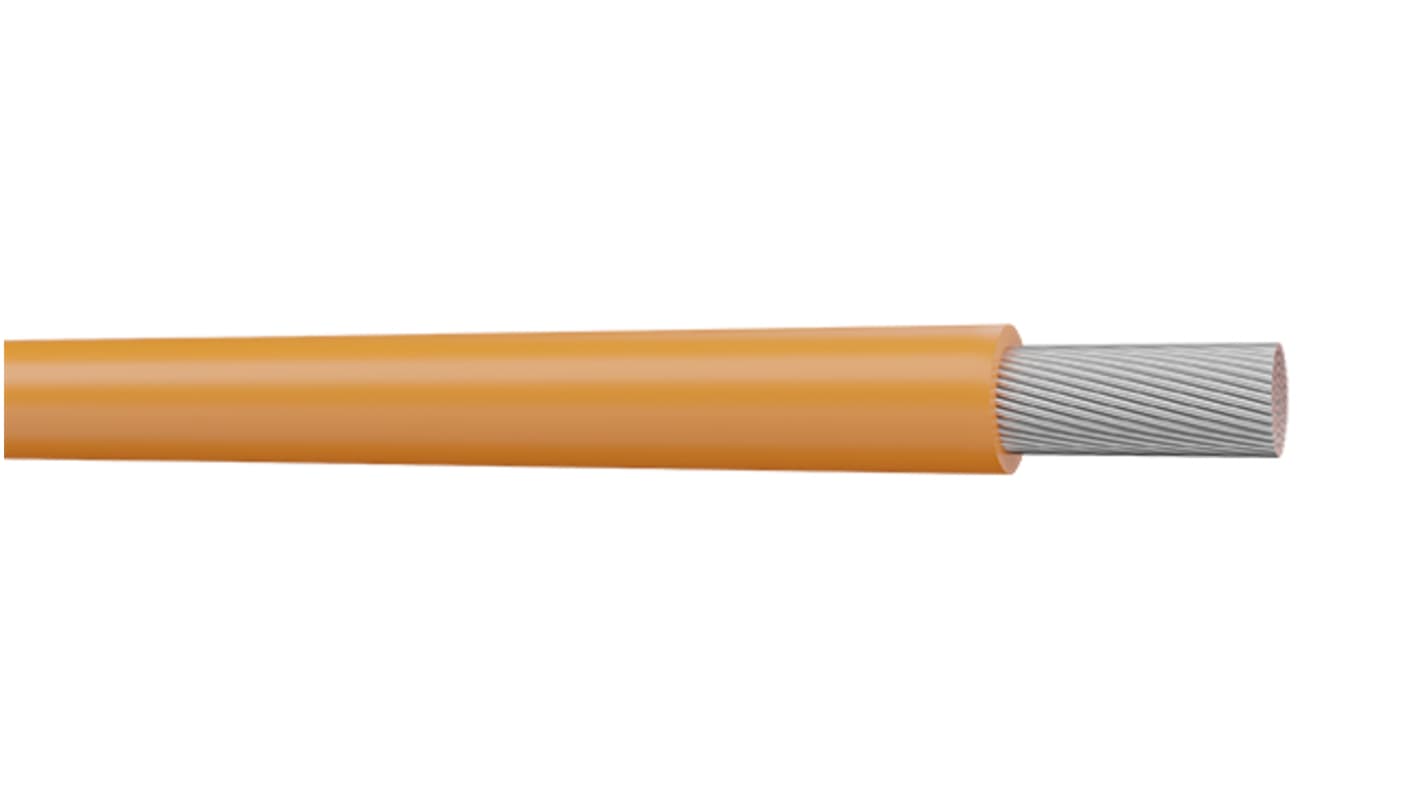

The CAE Multimedia Connect KY cabling wires is used in used in the electronics and electrical engineering sectors for wiring small and medium sized appliances.
Conductor material- Copper strand tinned
Flexible multi-wire conductor class
PVC 105°C core insulation
Operating temperature is -40°C to +105°C
Flexible multi-wire conductor class
PVC 105°C core insulation
Operating temperature is -40°C to +105°C
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.12 mm² |
Sheath Colour | Orange |
Cable Shape | Single Core |
American Wire Gauge | 26 AWG |
Core Strands | 7 x 0, 15 |
Length | 200m |
Insulation Material | PVC |
Voltage Rating | 250 V |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -40°C |
Conductor Material | Tinned Copper |
Standards Met | IEC 60332-17, NF C 32-070/C2, NFC 32070/C1, NFC 93521 |
Fire Behaviour | Flame Retardant |
Series | KY30 |
Shield Type | Unshielded |
Number of Strands | 7 |
Size of Strands | 0.12 mm |
