Arcol Ohmite HSC500 Series Red Hook Up Wire, 12 AWG, 19 x 0.45 mm, 0.45 mm core strands, 500 mm,
- RS Stock No.:
- 187-9356
- Mfr. Part No.:
- HSC500-6-RED
- Brand:
- Arcol Ohmite
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.34
(exc. VAT)
£11.21
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 3 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.34 |
| 10 - 24 | £8.83 |
| 25 - 49 | £8.13 |
| 50 + | £7.67 |
*price indicative
- RS Stock No.:
- 187-9356
- Mfr. Part No.:
- HSC500-6-RED
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 12AWG | |
| Core Strands | 19 x 0.45mm | |
| Cable Length | 500mm | |
| Outside Diameter | 2.3mm | |
| Voltage | 600V ac | |
| Maximum Operating Temperature | 190°C | |
| Conductor Material | Copper | |
| Cable Type | Stranded | |
| Minimum Operating Temperature | -75°C | |
| Jacket Material | Polytetrafluoroethylene | |
| Standards/Approvals | UL | |
| Fire Behaviour | UL 94HB | |
| Series | HSC500 | |
| Size of Strands | 0.45mm | |
| Number of Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 12AWG | ||
Core Strands 19 x 0.45mm | ||
Cable Length 500mm | ||
Outside Diameter 2.3mm | ||
Voltage 600V ac | ||
Maximum Operating Temperature 190°C | ||
Conductor Material Copper | ||
Cable Type Stranded | ||
Minimum Operating Temperature -75°C | ||
Jacket Material Polytetrafluoroethylene | ||
Standards/Approvals UL | ||
Fire Behaviour UL 94HB | ||
Series HSC500 | ||
Size of Strands 0.45mm | ||
Number of Strands 19 | ||
- COO (Country of Origin):
- DE

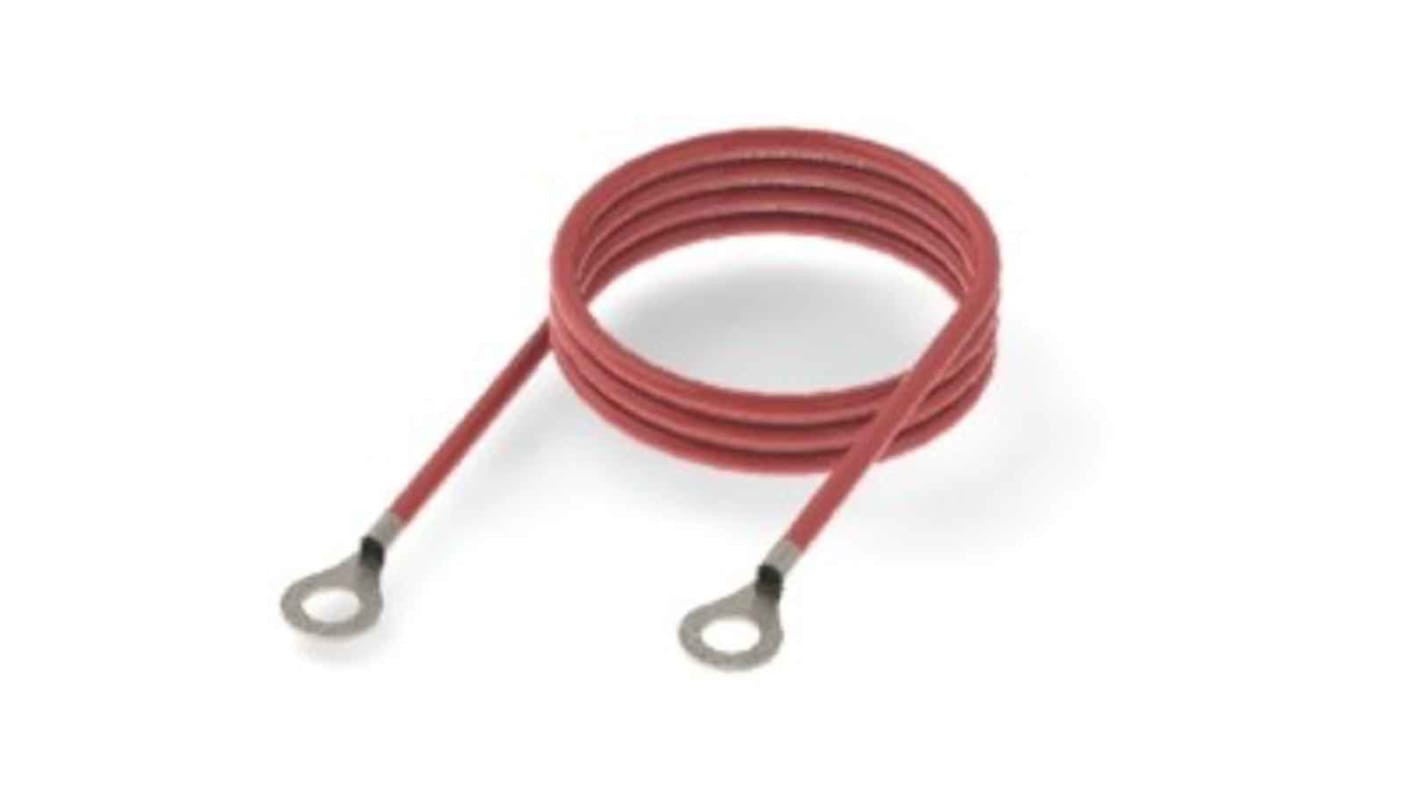

A highly flexible and non-flammable PTFE equipment wire for wiring electrical and electronic equipment. These 500mm lengths are fitted with a 6mm ring terminal on either end. For use in high performance Aerospace applications and applications requiring high levels of chemical and thermal resistance. Extremely resistant to solvents, acids, alkalis, lubricants, Hydraulic fluid, fuel and oils including both aircraft and rocket fuel. This 12 AWG, 35 Amp cable is available in both red (187-9356) and black (187-9355).
The 6mm ring terminal allows it to be easily connected to the Arcol HS200 and HS300 series of resistor.
