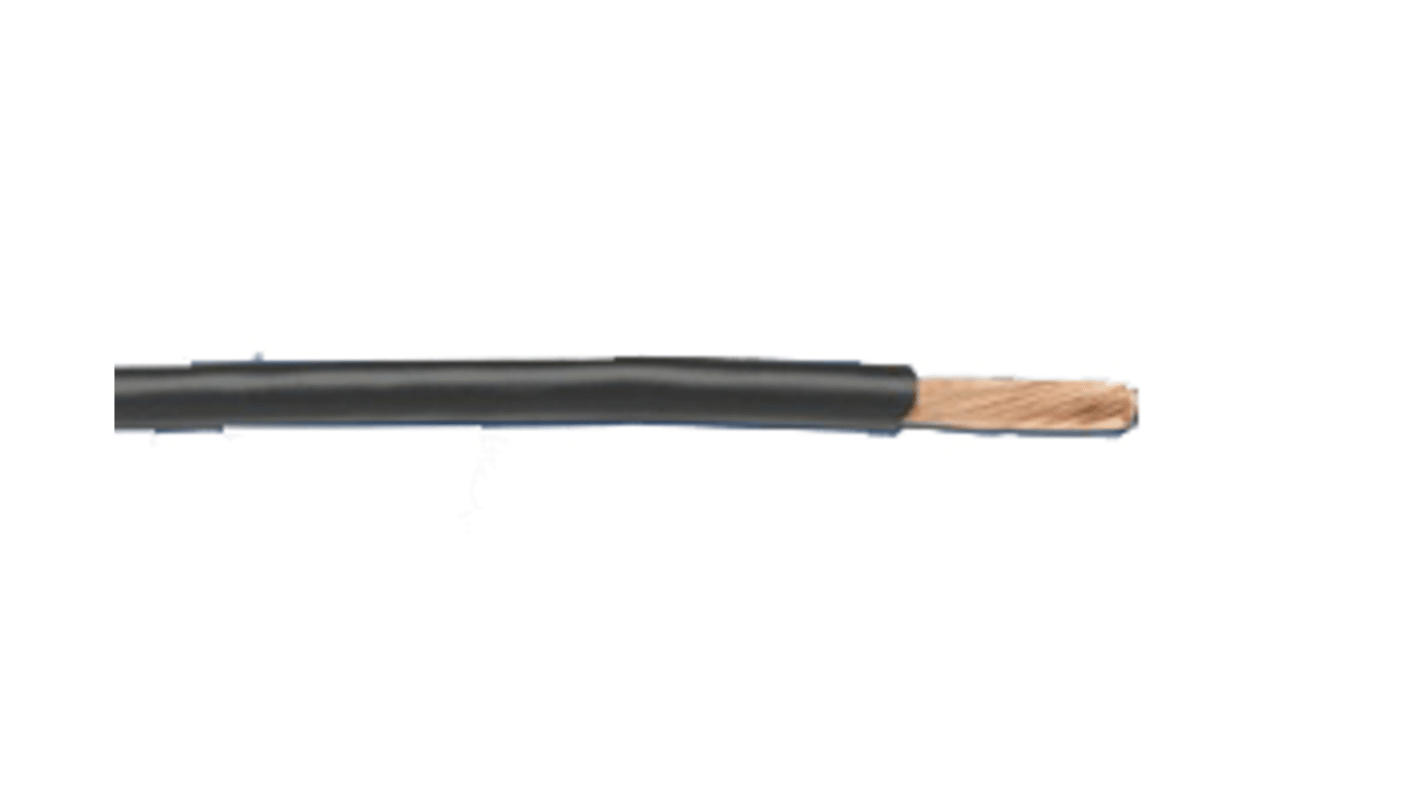

Alpha Wire Hookup Wire TEFLON Series Black 0.06 mm² Hook Up Wire, 30 AWG, 7, 305 m, Polytetrafluoroethylene, 5851 BK001
- RS Stock No.:
- 180-7525
- Mfr. Part No.:
- 5851 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£204.94
(exc. VAT)
£245.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £204.94 | £0.672 |
*price indicative
- RS Stock No.:
- 180-7525
- Mfr. Part No.:
- 5851 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.06 mm² | |
| Jacket Colour | Black | |
| American Wire Gauge | 30AWG | |
| Core Strands | 7 | |
| Cable Length | 305m | |
| Voltage | 600 V | |
| Outside Diameter | 0.81 mm | |
| Conductor Material | Silver Plated Copper | |
| Standards/Approvals | UL AWM/STYLE 1213, NEMA HP3-EXBBB, MIL-W-16878/4 (Type E) | |
| Sub Type | PTFE Wire | |
| Jacket Material | Polytetrafluoroethylene | |
| Fire Behaviour | Flame Retardant | |
| Series | Hookup Wire TEFLON | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.06 mm² | ||
Jacket Colour Black | ||
American Wire Gauge 30AWG | ||
Core Strands 7 | ||
Cable Length 305m | ||
Voltage 600 V | ||
Outside Diameter 0.81 mm | ||
Conductor Material Silver Plated Copper | ||
Standards/Approvals UL AWM/STYLE 1213, NEMA HP3-EXBBB, MIL-W-16878/4 (Type E) | ||
Sub Type PTFE Wire | ||
Jacket Material Polytetrafluoroethylene | ||
Fire Behaviour Flame Retardant | ||
Series Hookup Wire TEFLON | ||
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
