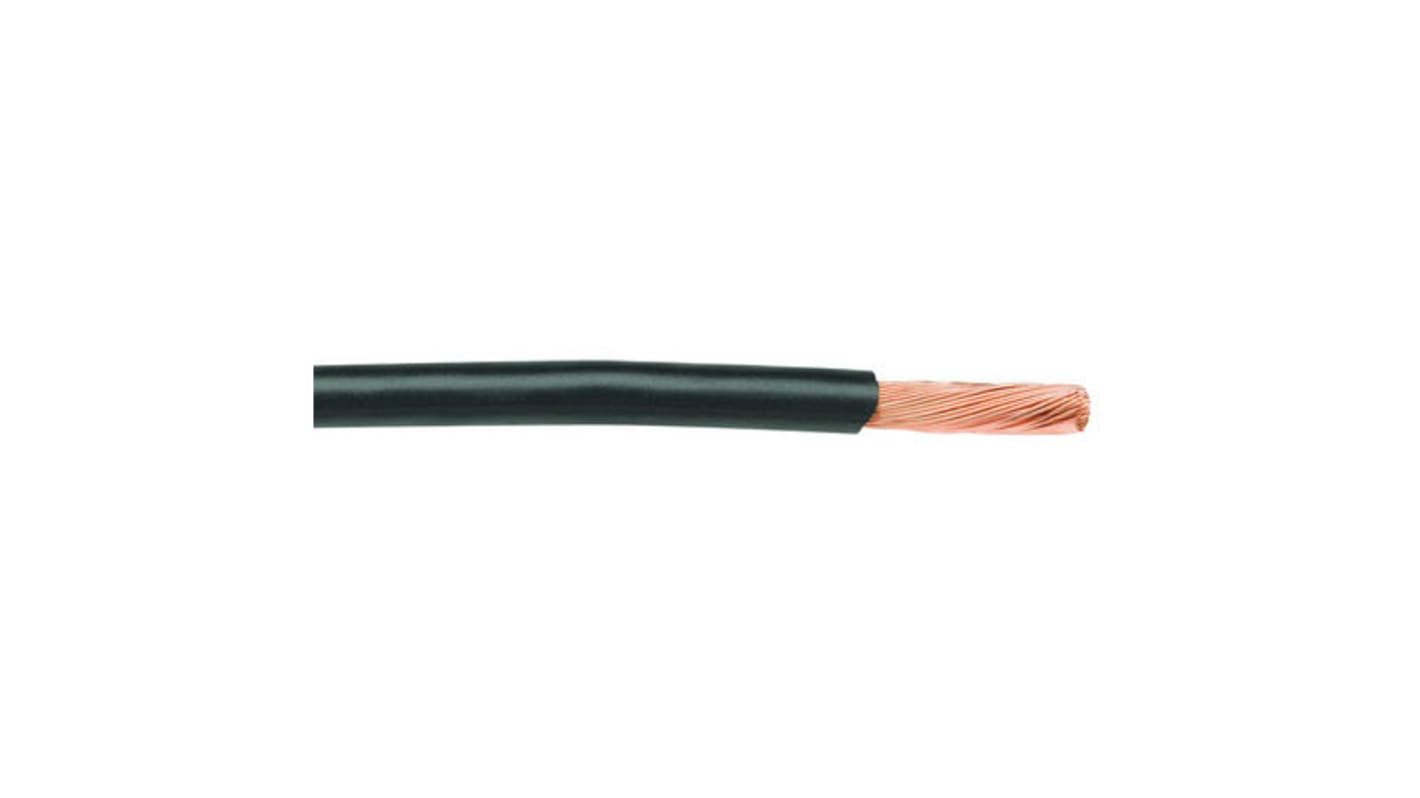

    Alpha Wire Black 0.06 mm² PTFE Equipment Wire, 30 AWG, 7/0.10 mm, 30m, PTFE Insulation

    RS Stock No.:
    177-0621
    Mfr. Part No.:
    5851 BK005
    Brand:
    Alpha Wire
    Alpha Wire
    View all Hook Up Wire
    121 In stock - FREE next working day delivery available
    9 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Reel(s)

    Added

    Price 1 Reel of 30 Metre(s)

    £26.74

    (exc. VAT)

    £32.09

    (inc. VAT)

    Reel(s)Per ReelPer Metre*
    1 - 4£26.74£0.891
    5 - 9£25.95£0.865
    10 +£25.21£0.84
    *price indicative
    RS Stock No.:
    177-0621
    Mfr. Part No.:
    5851 BK005
    Brand:
    Alpha Wire

    Technical Reference


    Legislation and Compliance


    Product Details

    Alpha Wire 600 V PTFE Hook Up Wire


    When every application is critical and wire failure is not an option, choose Alpha Wire PTFE hook up wire as your solution. PTFE hook up wire benefits from high temperature resistance, chemical and solvent resistance, and excellent electrical properties. This 600 V PTFE hook up wire can be used in temperatures ranging from -60°C to +200°C depending on the application.


    Features and Benefits


    Stranded or solid silver-plated copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

    Colour-coded insulation for easy circuit identification

    Easy to handle, strip and terminate

    PTFE insulation

    Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)


    Product Applications


    Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
    Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.


    Standards

    MIL-DTL-16878/4 (Type E) (600 V), UL AWM 1213, NEMA HP3


    Specifications

    AttributeValue
    Cross Sectional Area0.06 mm²
    Sheath ColourBlack
    American Wire Gauge30 AWG
    Core Strands7/0.10 mm
    Length30m
    Insulation MaterialPTFE
    Outer Diameter0.81mm
    Voltage Rating600 V
    Minimum Operating Temperature-60°C
    Maximum Operating Temperature+200°C
    Conductor MaterialSilver Plated Copper
    Standards MetMIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
    Wire StyleUL1213
    Insulation Wall Thickness0.3mm
