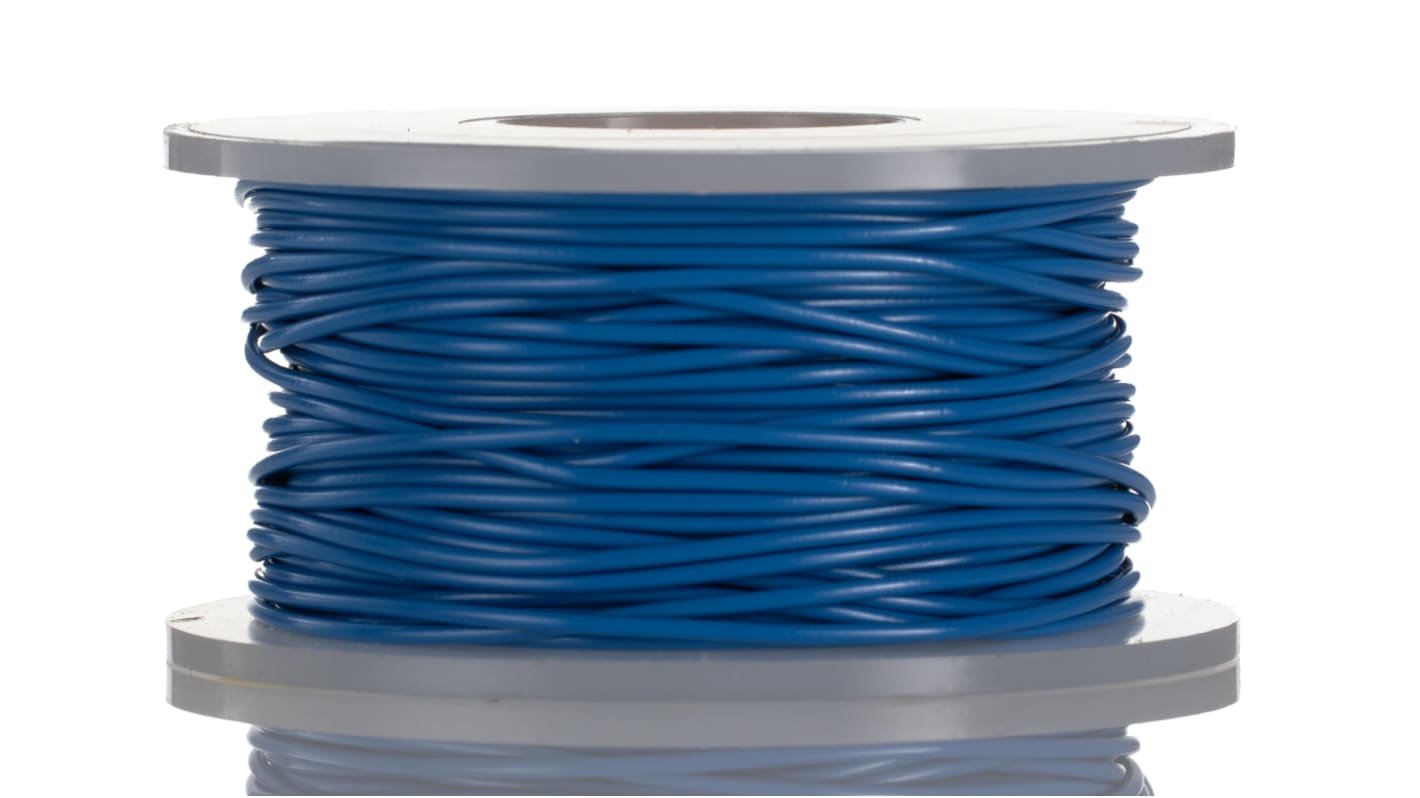

Alpha Wire 3049 Series Blue 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 30m, PVC Insulation, 3049 BL005
- RS Stock No.:
- 121-4264
- Distrelec Article No.:
- 303-02-217
- Mfr. Part No.:
- 3049 BL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£16.20
(exc. VAT)
£19.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £16.20 | £0.54 |
*price indicative
- RS Stock No.:
- 121-4264
- Distrelec Article No.:
- 303-02-217
- Mfr. Part No.:
- 3049 BL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 26 AWG | |
| Core Strands | 7/0.16 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.3mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Standards Met | CA Prop 65, CSA Certified, CSA TR-64 FT1, RoHS Compliant, UL AWM 1007/1569 VW-1, UL Recognised | |
| Wire Style | UL1007 | |
| Series | 3049 | |
| Insulation Wall Thickness | 0.4mm | |
| Number of Strands | 7 | |
| Outer Sheath Material | PVC | |
| Size of Strands | 0.16 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Blue | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 26 AWG | ||
Core Strands 7/0.16 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.3mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Standards Met CA Prop 65, CSA Certified, CSA TR-64 FT1, RoHS Compliant, UL AWM 1007/1569 VW-1, UL Recognised | ||
Wire Style UL1007 | ||
Series 3049 | ||
Insulation Wall Thickness 0.4mm | ||
Number of Strands 7 | ||
Outer Sheath Material PVC | ||
Size of Strands 0.16 mm | ||
Alpha Wire 300 V PVC Hook Up Wire
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.
Features and Benefits
Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Product Applications
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Alpha Wire Hook Up Wire, Copper Conductor Material, 30m Length - 3049 BL005
This Alpha Wire hook up wire is a reliable 26 AWG wire with a copper conductor, ensuring high quality performance. With a 300V voltage rating, this wire is designed to meet all your electrical needs with precision and efficiency.
Features & Benefits
• The wire features a copper conductor, guaranteeing excellent conductivity and durability
• With PVC insulation, this wire offers reliable protection against external elements, ensuring long-term functionality
• The UL1007 rating certifies the wire's compliance with industry standards, providing peace of mind for all applications
• Operating from -40°C to +105°C, this wire is suitable for a wide range of temperature environments
• The single core structure of the wire ensures easy installation and maintenance.
• With PVC insulation, this wire offers reliable protection against external elements, ensuring long-term functionality
• The UL1007 rating certifies the wire's compliance with industry standards, providing peace of mind for all applications
• Operating from -40°C to +105°C, this wire is suitable for a wide range of temperature environments
• The single core structure of the wire ensures easy installation and maintenance.
Applications
• Ideal for use in electrical and mechanical industries
• Can be used for automation and electronics applications requiring precise wiring solutions
• Can be used for automation and electronics applications requiring precise wiring solutions
Can it withstand high temperatures?
It is designed to operate effectively in temperatures ranging from -40°C to +105°C.
Will it provide reliable performance in demanding environments?
Yes, the wire is CSA certified and RoHS compliant for safe and efficient use.
Is it suitable for single core applications?
Yes, the wire features a single core design, making it reliable for a wide range of installations.
