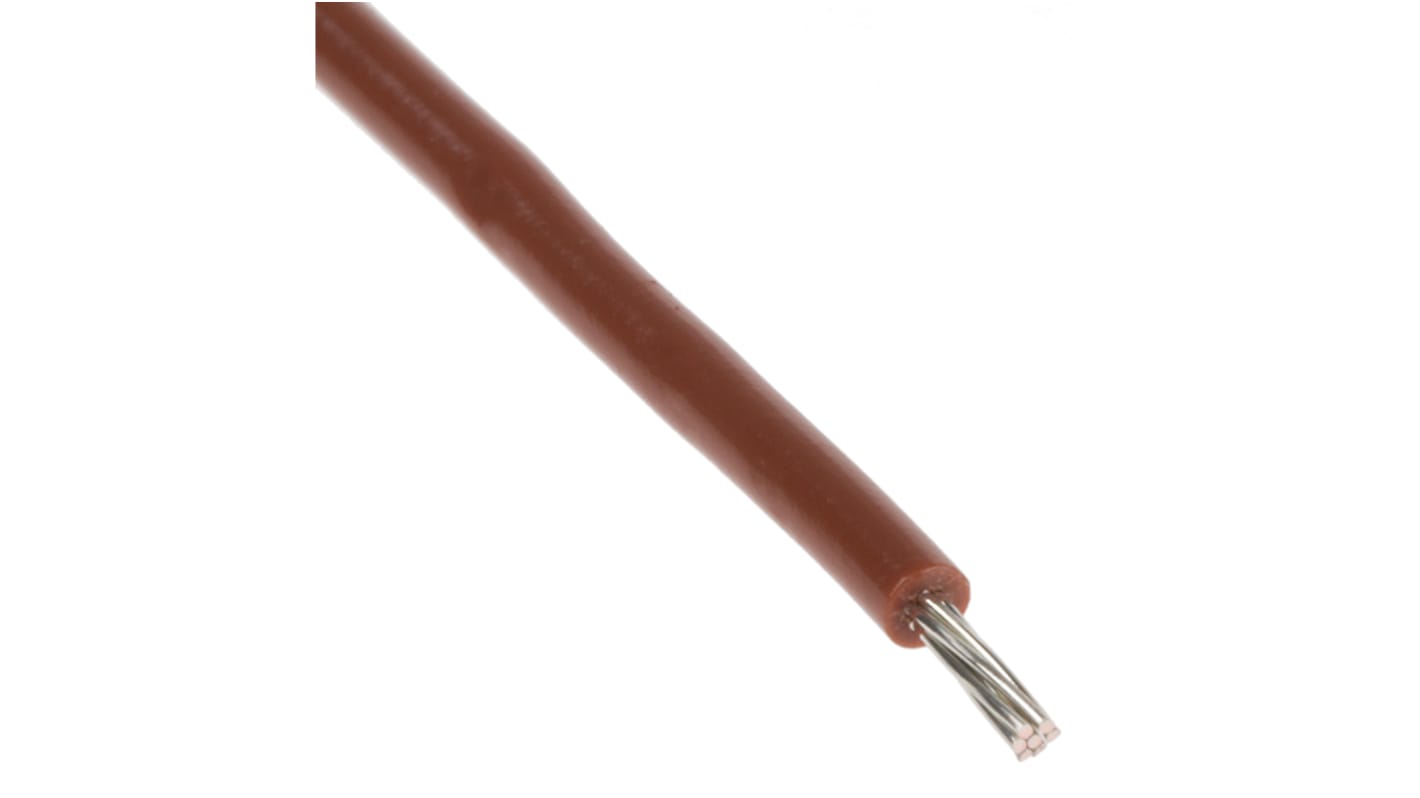

Alpha Wire Hook-up Wire PVC Series Brown 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30m, PVC Insulation, 3051 BR005
- RS Stock No.:
- 111-8708
- Distrelec Article No.:
- 303-02-239
- Mfr. Part No.:
- 3051 BR005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 units)*
£15.23
(exc. VAT)
£18.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 21 unit(s) shipping from 29 December 2025
- Plus 25 unit(s) shipping from 29 December 2025
- Plus 22 unit(s) shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £15.23 | £0.508 |
*price indicative
- RS Stock No.:
- 111-8708
- Distrelec Article No.:
- 303-02-239
- Mfr. Part No.:
- 3051 BR005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.35 mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.57mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Cable Type | Harsh Environment | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Tri-rated | No | |
| Series | Hook-up Wire PVC | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.41mm | |
| Hook Up Wire Type | High Temperature | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 7 | |
| Resistant To | Chemicals, Oils, Solvents | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.35 mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 22 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.57mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Cable Type Harsh Environment | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Tri-rated No | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.41mm | ||
Hook Up Wire Type High Temperature | ||
Size of Strands 0.25 mm | ||
Number of Strands 7 | ||
Resistant To Chemicals, Oils, Solvents | ||
Belden Hook-up Wire PVC Series Hook Up Wire, 0.35mm² Cross Sectional Area, Brown Sheath - 3051 BR001
This hook-up wire is designed for use in harsh environments, featuring a tinned copper core for enhanced conductivity. With a nominal cross-sectional area of 0.35mm², it adheres to UL1007 and AWM Style 1569 standards. The brown PVC insulation provides durable protection, while the cable boasts an outer diameter of 1.57mm. This wire is suitable for a wide range of applications from automation to electrical and mechanical sectors.
Features & Benefits
• Constructed from flame-retardant PVC for added safety
• Operates effectively between -40°C and +105°C
• Rated at 300V, suitable for high-voltage applications
• Tinned copper wire ensures excellent conductivity and corrosion resistance
• Complies with stringent standards for quality assurance
• High flexibility due to its 7 strands of 0.25mm wire
• Operates effectively between -40°C and +105°C
• Rated at 300V, suitable for high-voltage applications
• Tinned copper wire ensures excellent conductivity and corrosion resistance
• Complies with stringent standards for quality assurance
• High flexibility due to its 7 strands of 0.25mm wire
Applications
• Utilised in electrical panels and control systems
• Employed in automation equipment and robotics
• Suitable for wiring in industrial machinery and devices
• Integrated within electrical devices requiring reliable performance
• Used in demanding durability in challenging conditions
• Employed in automation equipment and robotics
• Suitable for wiring in industrial machinery and devices
• Integrated within electrical devices requiring reliable performance
• Used in demanding durability in challenging conditions
What temperature range can this wire withstand during operation?
The wire can function effectively within a broad temperature range, specifically from -40°C to +105°C, ensuring reliability in diverse environments.
How does the tinned copper composition improve performance?
The tinned copper core enhances conductivity while providing resistance to corrosion, which is beneficial for long-lasting performance, especially in harsh conditions.
What are the specific standards this wire meets for safety and quality?
This wire complies with several crucial standards, including UL AWM/Style 1007 and AWM/Style 1569, ensuring it meets rigorous safety requirements.
Is this wire suitable for use in outdoor environments?
Yes, its robust design makes it suitable for outdoor applications, particularly where exposure to challenging weather conditions is anticipated.
What is the significance of the wire being flame-retardant?
Flame-retardant properties minimise fire risk, making it a safer choice for electrical installations where higher temperature control is essential.
