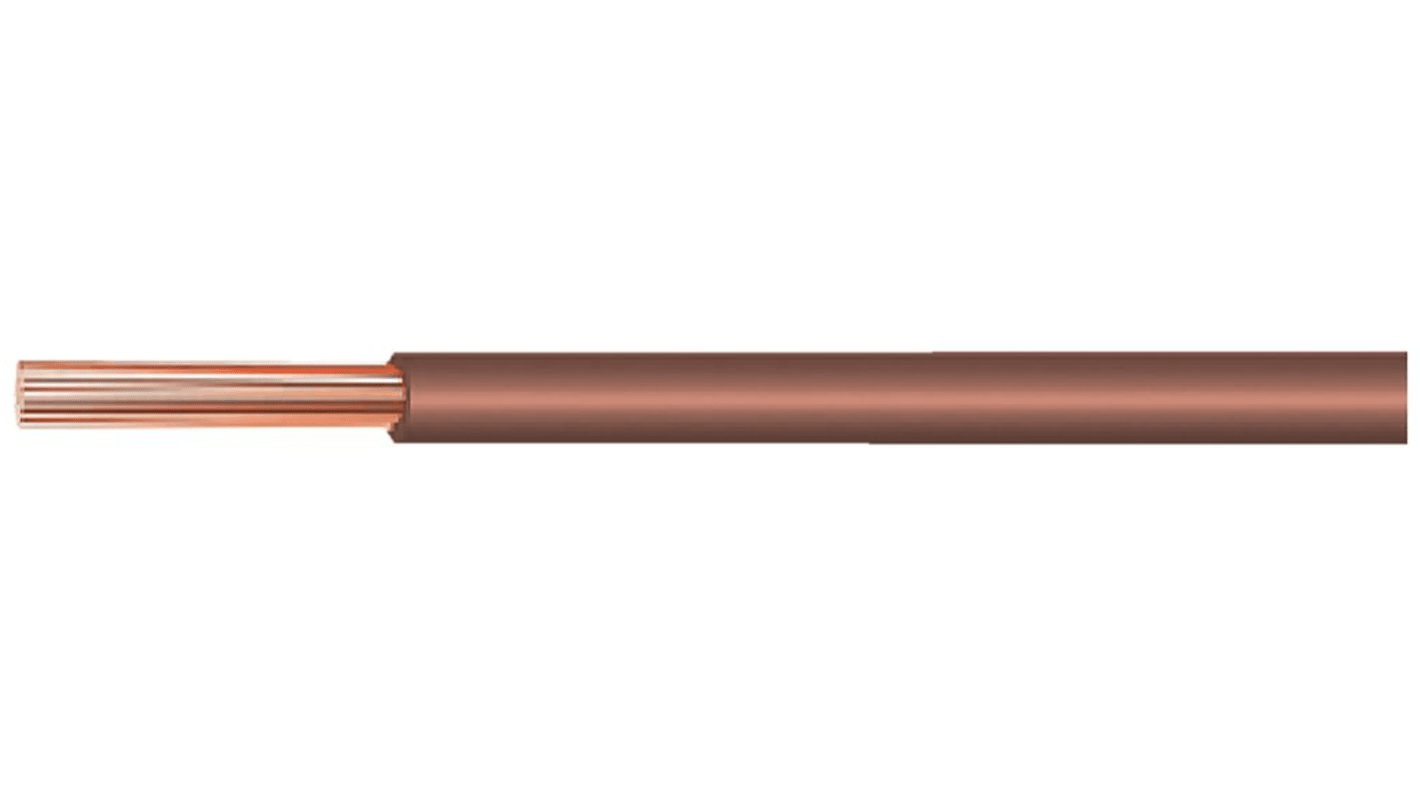

Helukabel H05V-K Series Brown 1 mm² Hook Up Wire, 18 AWG, 100 m, Polyvinyl Chloride, 29116
- RS Stock No.:
- 361-912
- Mfr. Part No.:
- 29116
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£17.25
(exc. VAT)
£20.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £17.25 | £0.173 |
*price indicative
- RS Stock No.:
- 361-912
- Mfr. Part No.:
- 29116
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 1 mm² | |
| Jacket Colour | Brown | |
| American Wire Gauge | 18AWG | |
| Cable Length | 100m | |
| Voltage | 500V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Sub Type | Fine Wire Stranded | |
| Minimum Operating Temperature | 30°C | |
| Cable Type | Round | |
| Standards/Approvals | DIN EN 50363-3, BS 6360 cl.5, DIN EN 50525-2-31, DIN EN 60332-1-2, DIN VD0207-363-3, DIN VD0285-525-2-31, DIN VD0295 cl.5, DIN VD0472 part 804 test method B, DIN VD0482-332-1-2, EC Low-Voltag2006/95/EC, IEC 60227-3, IEC 60228 cl.5, IEC 60332-1 | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant, Self-Extinguishing | |
| Series | H05V-K | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 1 mm² | ||
Jacket Colour Brown | ||
American Wire Gauge 18AWG | ||
Cable Length 100m | ||
Voltage 500V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Sub Type Fine Wire Stranded | ||
Minimum Operating Temperature 30°C | ||
Cable Type Round | ||
Standards/Approvals DIN EN 50363-3, BS 6360 cl.5, DIN EN 50525-2-31, DIN EN 60332-1-2, DIN VD0207-363-3, DIN VD0285-525-2-31, DIN VD0295 cl.5, DIN VD0472 part 804 test method B, DIN VD0482-332-1-2, EC Low-Voltag2006/95/EC, IEC 60227-3, IEC 60228 cl.5, IEC 60332-1 | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant, Self-Extinguishing | ||
Series H05V-K | ||
- COO (Country of Origin):
- DE
The Helukabel PVC Single core cables are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
Radiation resistance
Insulation resistance
PVC self extinguishing and flame retardant
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
