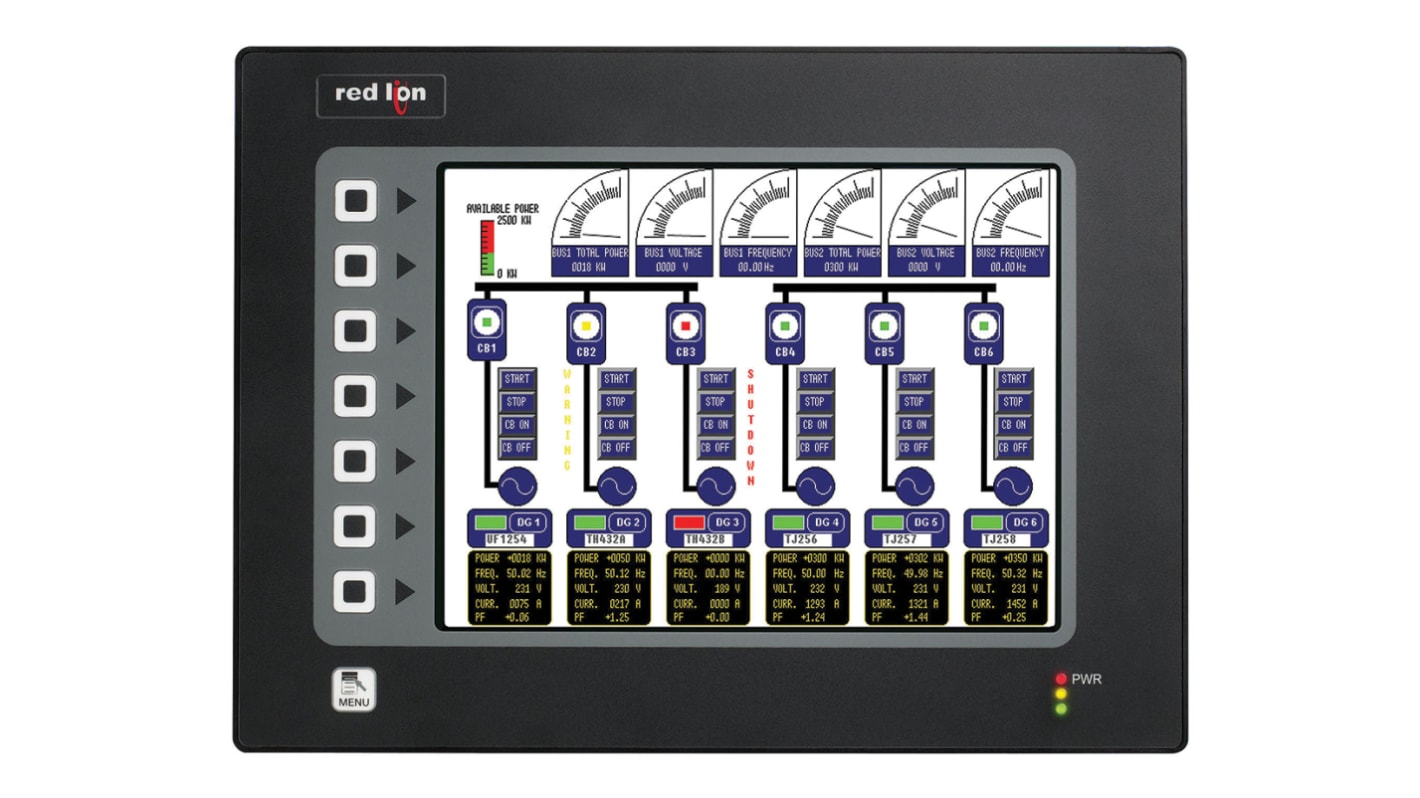

Red Lion G3 Series Touch Screen HMI - 10.4 in, TFT Display, 640 x 480
- RS Stock No.:
- 905-5579
- Mfr. Part No.:
- G310C210
- Brand:
- Red Lion
Discontinued
- RS Stock No.:
- 905-5579
- Mfr. Part No.:
- G310C210
- Brand:
- Red Lion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Manufacturer Series | G3 | |
| Display Type | TFT | |
| Manufacturer Part No. | G310C210 | |
| Display Resolution | 640 x 480 | |
| Number of Ports | 7 | |
| Port Type | 2 x USB Host, COM (RS232), COM (RS485), Ethernet (NIC), PGM (RS232), USB (Type B) | |
| Onboard Memory | 32 MB | |
| Backlighting | Yes | |
| Display Size | 10.4 in | |
| IP Rating | IP66 | |
| Supply Voltage | 24 ±20% V dc | |
| Kit Included | Yes | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 325.8 x 241.3 x 62 mm | |
| Width | 241.3mm | |
| Depth | 62mm | |
| Length | 325.8mm | |
| Display Colour | Colour | |
| Maximum Operating Temperature | +50°C | |
| Select all | ||
|---|---|---|
Brand Red Lion | ||
Manufacturer Series G3 | ||
Display Type TFT | ||
Manufacturer Part No. G310C210 | ||
Display Resolution 640 x 480 | ||
Number of Ports 7 | ||
Port Type 2 x USB Host, COM (RS232), COM (RS485), Ethernet (NIC), PGM (RS232), USB (Type B) | ||
Onboard Memory 32 MB | ||
Backlighting Yes | ||
Display Size 10.4 in | ||
IP Rating IP66 | ||
Supply Voltage 24 ±20% V dc | ||
Kit Included Yes | ||
Minimum Operating Temperature 0°C | ||
Dimensions 325.8 x 241.3 x 62 mm | ||
Width 241.3mm | ||
Depth 62mm | ||
Length 325.8mm | ||
Display Colour Colour | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- US
HMI Operator Interfaces - Series G3
Red Lion G3 HMIs provide durability and functionality beyond the industry standard with an intuitive, easy-to-use programming interface.
G3 HMIs Series with a size from 5.7” till 12”
Convert up to 13 protocols simultaneously from over 300 supported drivers
Real-time data logging provides historic visibility to support process improvements
Provide built-in data logging (CF card), web server and FTP for remote access
Send email and/or SMS notifications on alarm conditions
Web and FTP servers enable remote monitoring and control
Communication cards extend connectivity options
USB synchronization of database and log files
Offer multiple connectivity ports including serial, Ethernet and USB
UL Class 1, Division 2 Listed for hazardous locations
Crimson 3.0 software for easy drag-and-drop programming
Note
Software download: http://www.redlion.net/crimson-30
