Crouzet MTP6/50, MTP8/50 Series Programmable Terminal Touch Screen HMI - 4.3 in, TFT LCD Display, 480 x 272
- RS Stock No.:
- 786-5766
- Mfr. Part No.:
- 88970502
- Brand:
- Crouzet
Discontinued
- RS Stock No.:
- 786-5766
- Mfr. Part No.:
- 88970502
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Manufacturer Series | MTP6/50, MTP8/50 | |
| Product Range | Programmable Terminal | |
| Display Type | TFT LCD | |
| Manufacturer Part No. | 88970502 | |
| Display Resolution | 480 x 272 | |
| Number of Ports | 3 | |
| Port Type | Ethernet, RS232/RS485, USB 2.0 | |
| Processor Speed | 400MHz | |
| Onboard Memory | 128 MB | |
| Display Size | 4.3 in | |
| Backlighting | Yes | |
| IP Rating | IP65 | |
| Width | 102mm | |
| Display Colour | Colour | |
| Kit Included | Yes | |
| Length | 128mm | |
| Depth | 38mm | |
| Maximum Operating Temperature | +45°C | |
| Supply Voltage | 24 V dc | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 128 x 102 x 38 mm | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Manufacturer Series MTP6/50, MTP8/50 | ||
Product Range Programmable Terminal | ||
Display Type TFT LCD | ||
Manufacturer Part No. 88970502 | ||
Display Resolution 480 x 272 | ||
Number of Ports 3 | ||
Port Type Ethernet, RS232/RS485, USB 2.0 | ||
Processor Speed 400MHz | ||
Onboard Memory 128 MB | ||
Display Size 4.3 in | ||
Backlighting Yes | ||
IP Rating IP65 | ||
Width 102mm | ||
Display Colour Colour | ||
Kit Included Yes | ||
Length 128mm | ||
Depth 38mm | ||
Maximum Operating Temperature +45°C | ||
Supply Voltage 24 V dc | ||
Minimum Operating Temperature 0°C | ||
Dimensions 128 x 102 x 38 mm | ||
- COO (Country of Origin):
- FR
MTP - Touch Panel Accessories
Accessories for the programmable touch panel series MTP for the Millenium 3 micro-PLC.

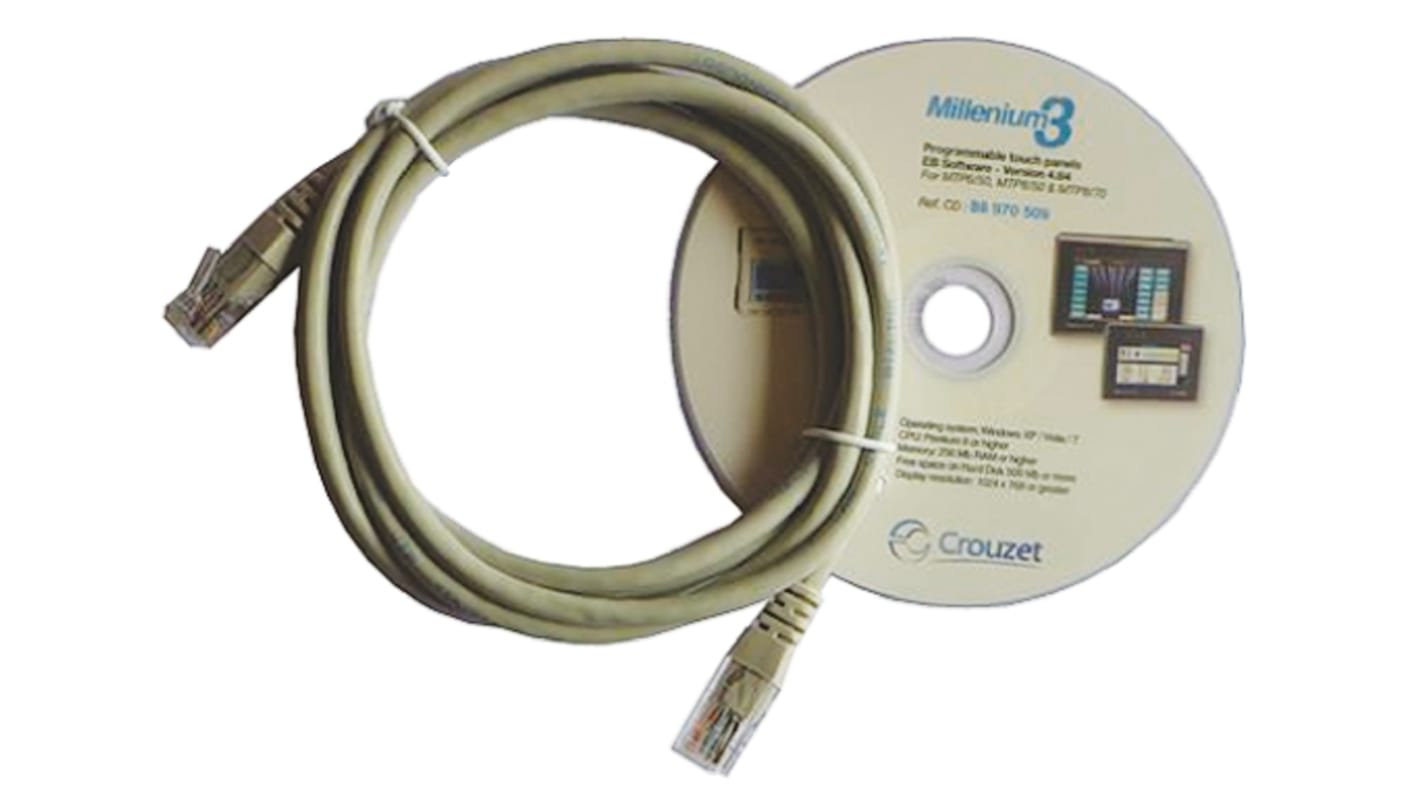

Accessories for the touch panel series MTP:
Programming kit
Modbus cable
Programming kit
Modbus cable
Crouzet Millenium 3
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10 bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bargraph functionality
Choice of ladder or function block programming
The Expandable Controller has around four times the memory size
10 bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bargraph functionality
Choice of ladder or function block programming
