All PanelView Component models have RS-232 and RS-422/RS-485 ports to communicate over serial networks to MicroLogix and SLC series controllers. The C600 and C1000 models offer an additional Ethernet port supporting Ethernet communication. The design software resides in the terminals which eliminates software installation on the PC.
Optimized for communication with MicroLogix or SLC500 controllers via DF1, DH-485 Ethernet enabled option supporting simplified MicroLogix or SLC500 connectivity Integrated mounting clips for easy panel mounting Upload and download groups of data or parameter settings with basic recipe capability Design software is on the PanelView Component operator interface so there's no need to install software on the PC
Allen Bradley HMI Terminals
PanelView HMI terminals are panel-mount graphic display devices that offer keypad or touch screen operator input choices. Display sizes range from 2-inch, 3-inch, 6-inch to 10-inch flat panels in TFT-color, STN-colour, or monochrome.Multivendor communication supported for Modbus, Modbus/TCP, and Siemens MPI devices. In addition, every PanelView Component terminal has two USB ports for transferring configuration files or updating firmware.
Attribute
Value
Manufacturer Series

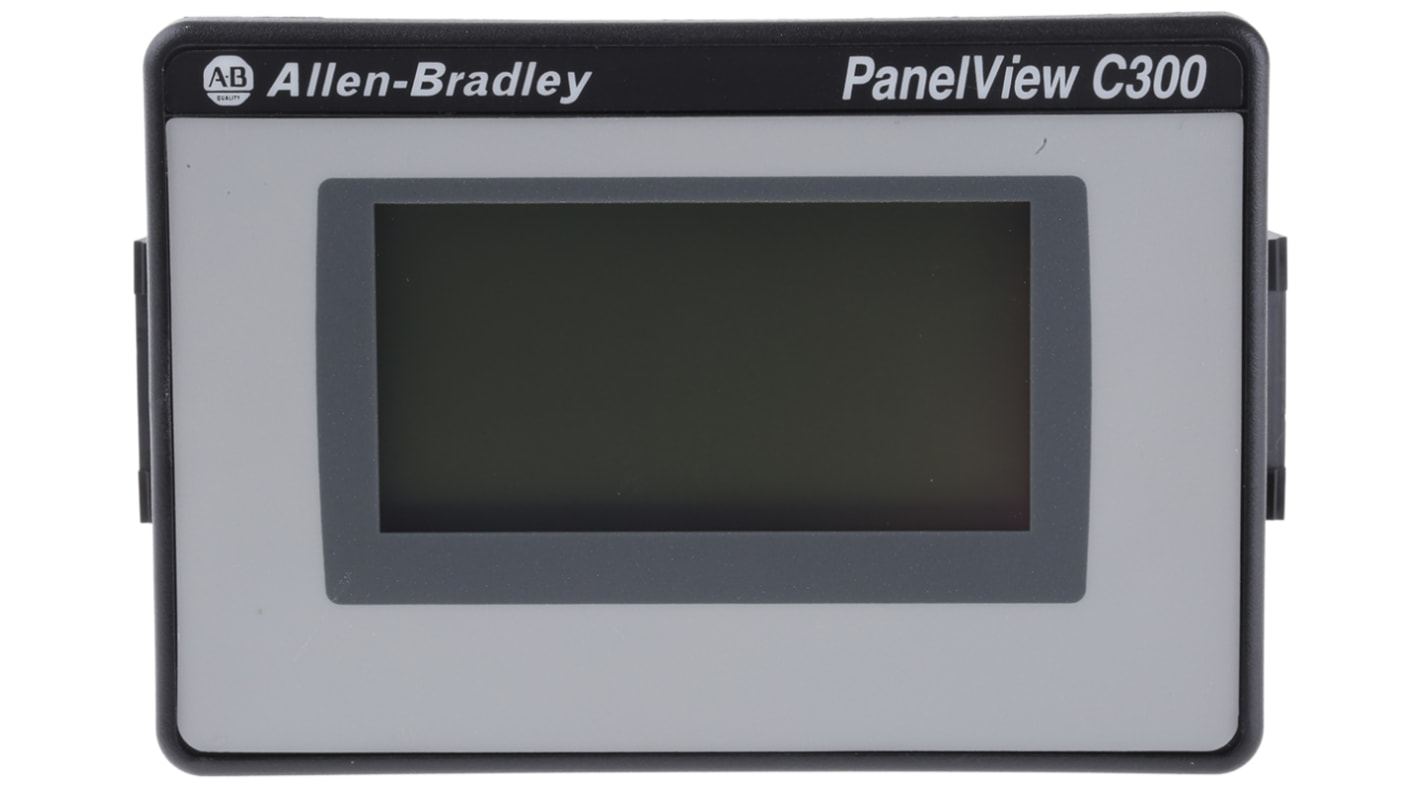

PanelView C300
Display Type
LCD
Manufacturer Part No.
2711C-T3M
Display Resolution
128 x 64pixels
Port Type
RS232, RS485/RS422, USB
Display Size
3 in
Backlighting
Yes
IP Rating
IP65
Maximum Operating Temperature
+55°C
Display Colour
Monochrome
Width
80mm
Minimum Operating Temperature
0°C
Dimensions
116 x 80 x 57 mm
Depth
57mm
Length
116mm
Supply Voltage
18 → 30 V dc
RoHS Status: Not Applicable
COO (Country of Origin):
SG
