Siemens IFP2200 V2 PRO Series Flat Panel - 21.5 in, TFT Display, 1920 x 1080 pixel
- RS Stock No.:
- 252-7296
- Mfr. Part No.:
- 6AV78634MA142NA0
- Brand:
- Siemens
Subtotal (1 unit)*
£2,354.27
(exc. VAT)
£2,825.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,354.27 |
*price indicative
- RS Stock No.:
- 252-7296
- Mfr. Part No.:
- 6AV78634MA142NA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Flat Panel | |
| Series | IFP2200 V2 PRO | |
| Display Type | TFT | |
| Display Resolution | 1920 x 1080 pixel | |
| Minimum Operating Temperature | 0°C | |
| Diagonal Display Size | 21.5in | |
| Maximum Operating Temperature | 45°C | |
| Depth | 93.7mm | |
| Standards/Approvals | RoHS | |
| Width | 527mm | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Flat Panel | ||
Series IFP2200 V2 PRO | ||
Display Type TFT | ||
Display Resolution 1920 x 1080 pixel | ||
Minimum Operating Temperature 0°C | ||
Diagonal Display Size 21.5in | ||
Maximum Operating Temperature 45°C | ||
Depth 93.7mm | ||
Standards/Approvals RoHS | ||
Width 527mm | ||
Hazardous Area Certification NO | ||

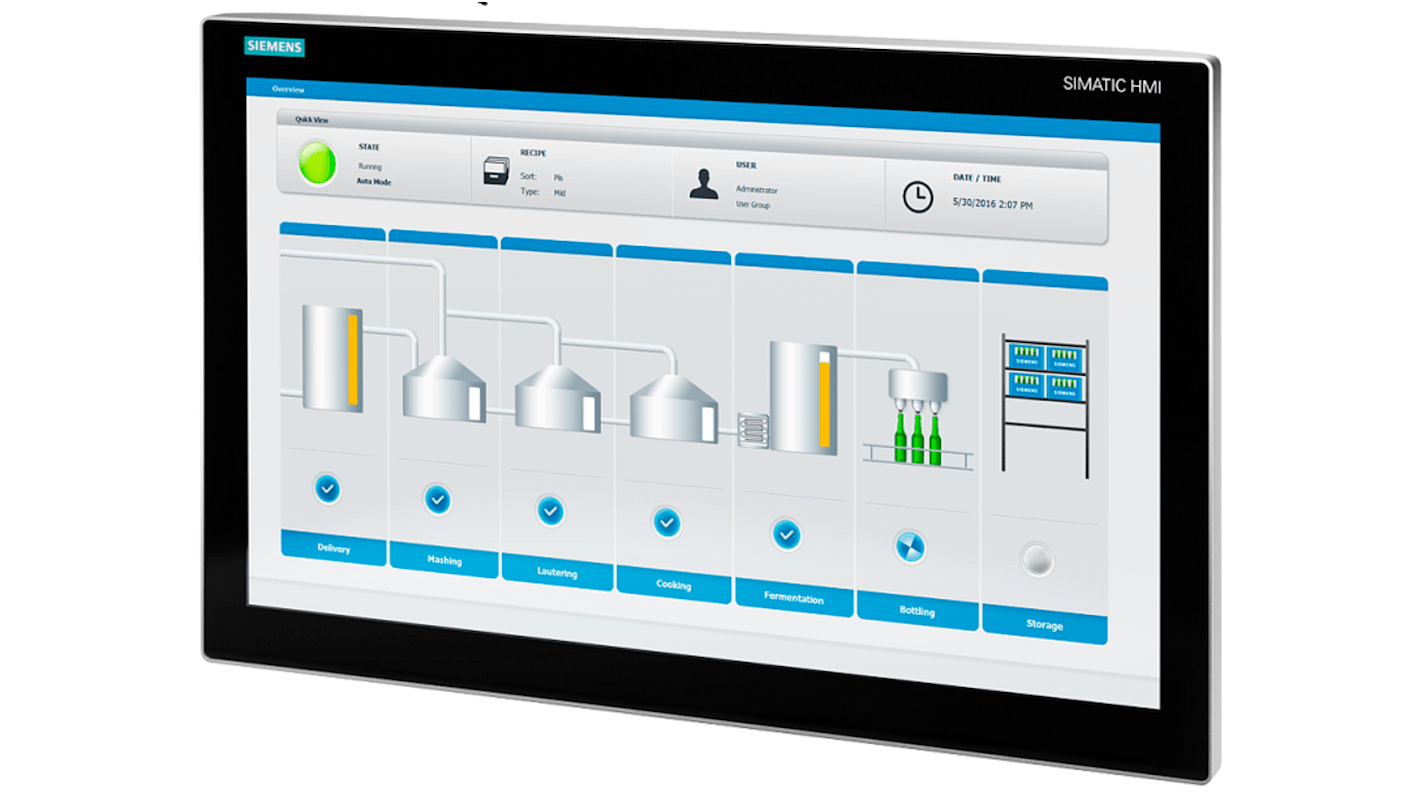

The Siemens SIMATIC IFP2200 V2 PRO flat panel 22 inch multi-touch display which having a 1920 x 1080 pixel resolution. It has TFT widescreen display with LED backlighting. The display port can be placed up to 100 m away from HD base. The supply voltage of this display is 24 V DC and the ambient temperature during operation is 0°C to +50°C. This multi-touch display having a brightness of 250 cd/m² and contrast of 1000:1.
Screen diagonal is 54.6 cm
Display width is 476.1 mm and height is 267.8 mm
Non-reflective and tempered mineral glass screen
Degree and class of protection is IP65
