Display Visions HMI Series Touch Screen HMI - 7 in, TFT Display, 1024 x 600 pixel
- RS Stock No.:
- 635-087
- Mfr. Part No.:
- EA HMI070WU-16ATCS
- Brand:
- Display Visions
Subtotal (1 unit)*
£397.61
(exc. VAT)
£477.13
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £397.61 |
*price indicative
- RS Stock No.:
- 635-087
- Mfr. Part No.:
- EA HMI070WU-16ATCS
- Brand:
- Display Visions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Display Visions | |
| Series | HMI | |
| Product Type | Touch Screen HMI | |
| Display Type | TFT | |
| Display Resolution | 1024 x 600 pixel | |
| Port Type | USB, RS485, RS232, Wi-Fi, Ethernet | |
| Minimum Operating Temperature | -20°C | |
| Diagonal Display Size | 7in | |
| Backlighting | Yes | |
| Maximum Operating Temperature | 60°C | |
| Width | 190mm | |
| Length | 175mm | |
| Depth | 18.5mm | |
| Standards/Approvals | No | |
| IP Rating | IP20 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Display Visions | ||
Series HMI | ||
Product Type Touch Screen HMI | ||
Display Type TFT | ||
Display Resolution 1024 x 600 pixel | ||
Port Type USB, RS485, RS232, Wi-Fi, Ethernet | ||
Minimum Operating Temperature -20°C | ||
Diagonal Display Size 7in | ||
Backlighting Yes | ||
Maximum Operating Temperature 60°C | ||
Width 190mm | ||
Length 175mm | ||
Depth 18.5mm | ||
Standards/Approvals No | ||
IP Rating IP20 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

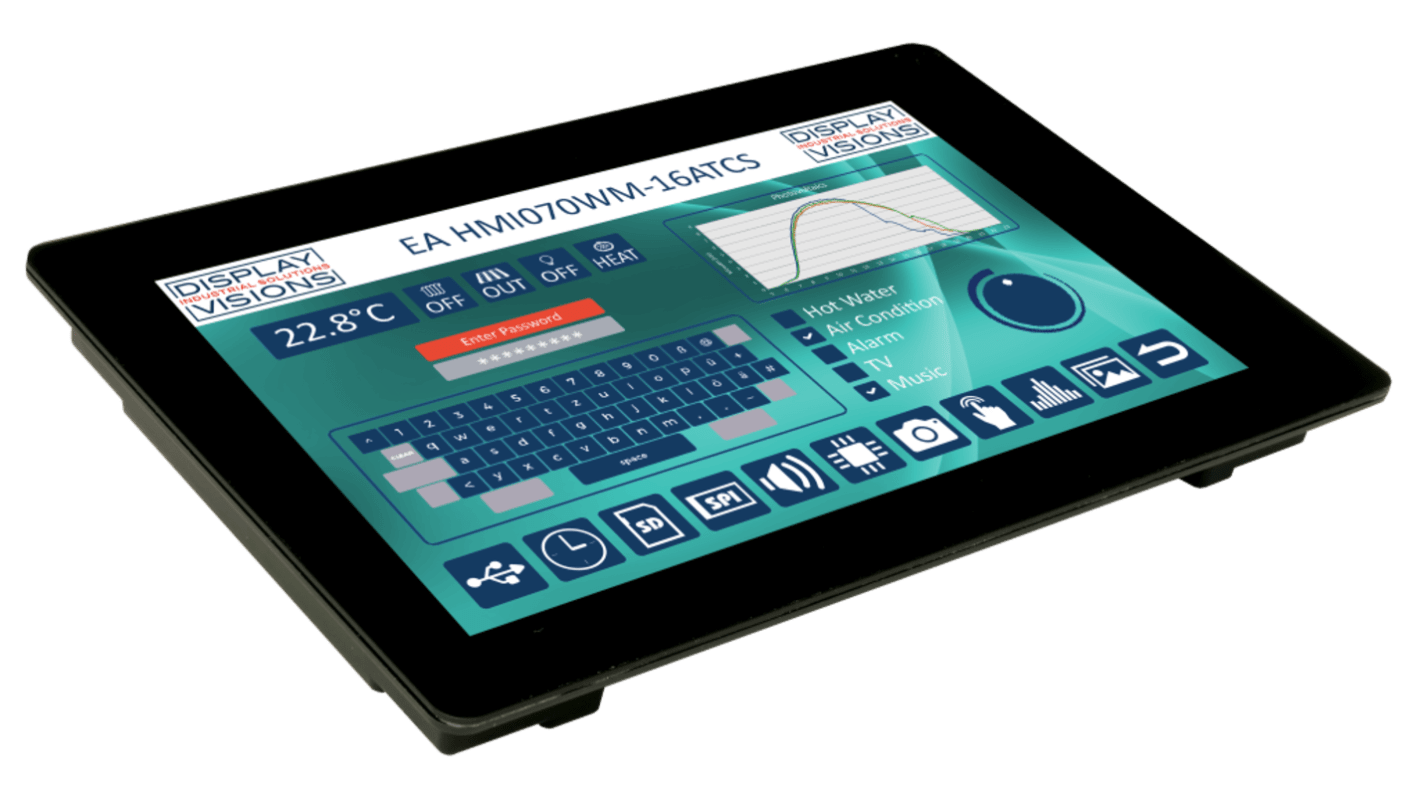

The Display Vision 7.0 inch intelligent HMI panel designed for industrial applications requiring high-performance visualization and flexible connectivity. It integrates Wi-Fi and RS-485 interfaces, making it ideal for standalone control systems. Quick and easy cable commissioning is enabled by tool-free push-in connection technology, streamlining installation in control cabinets and field environments.
IP20 protection
PCAP Touch Panel
Wall mount and Panel mount
IPS with PCAP display
