HARTING Heavy Duty Power Connector, Bulkhead Mount, Screw, 4 Way, 10A, Han 4A Male/Female, 230V, 400 V

View this category
Bulk discount available

Subtotal (1 unit)*

£47.33

(exc. VAT)

£56.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 257 unit(s) ready to ship
  • Plus 52 unit(s) ready to ship from another location
  • Plus 24 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£47.33
10 - 24£45.44
25 - 49£43.55
50 +£41.89

*price indicative

RS Stock No.:
843-6264
Distrelec Article No.:
143-47-225
Mfr. Part No.:
10200040003
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Number of Contacts

4

Product Type

Heavy Duty Power Connector

Current

10A

Series

Han 4A

Termination Type

Screw

Connector Gender

Male/Female

Mount Type

Bulkhead Mount

Voltage

230, 400V

Thread Size

M20

Pole Format

4+PE

IP Rating

IP67

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Contact Gender

Male/Female

Manufacturer Size Code

4A

Standards/Approvals

No

Orientation

Straight

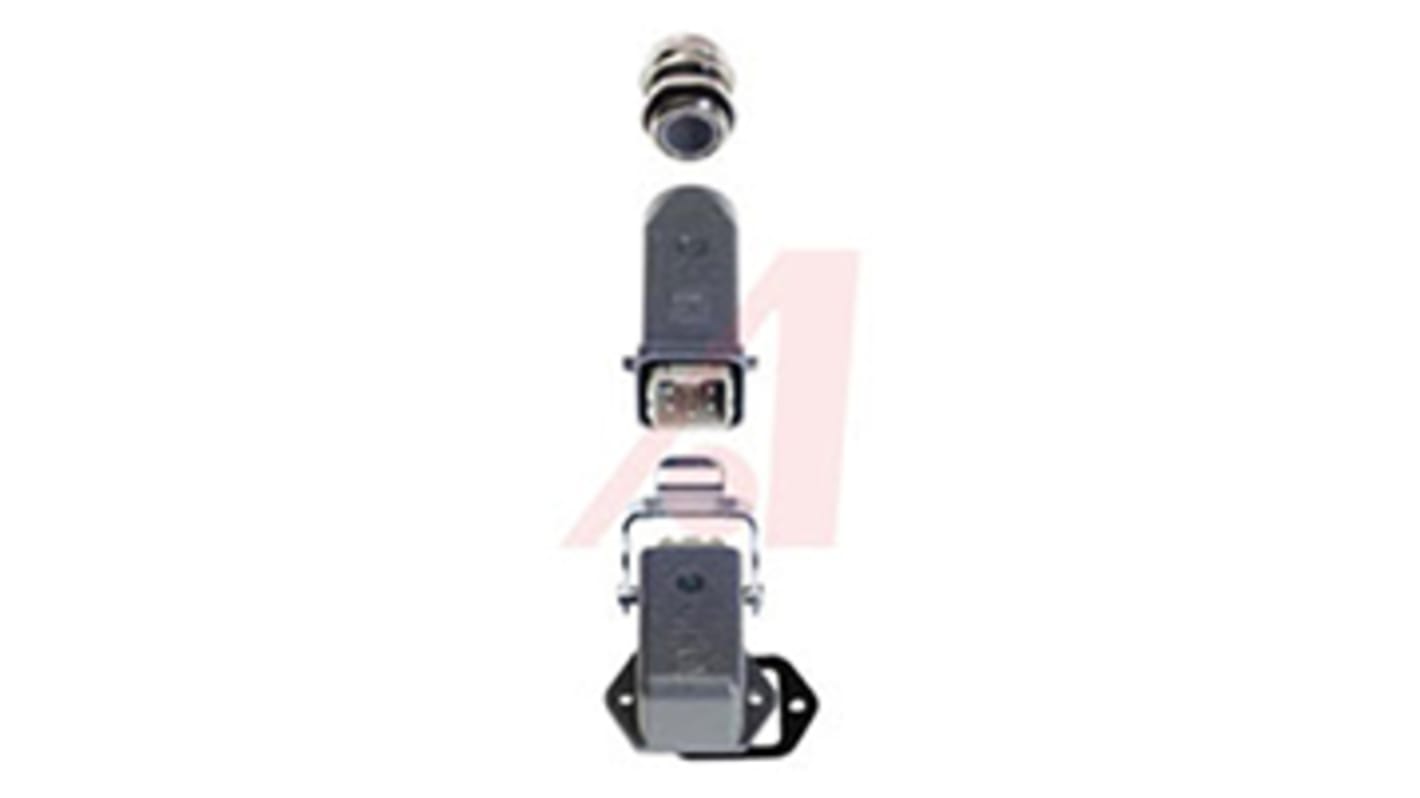

Harting Han 4A Series Heavy Duty Power Connector, 10A Current Rating - 10200040003


This heavy-duty power connector is a robust, panel-mounted solution designed for earthed industrial power distribution in automation and electrical assemblies. Constructed with a die-cast zinc-alloy housing and available in bulkhead mounting options, it provides a sealed Interface for mating power inserts and cable entries where secure, high-current connections are required.

Features & Benefits


• IP67 sealing ensures protection against dust and water ingress
• Metal M20 cable gland accepts 5–9mm or 6–12mm cables
• Screw terminals accept 1–2.5mm conductors for reliable contact
• Rated for 10 A at 230/400V to handle typical power loads
• 4 kV impulse withstand offers enhanced transient protection
• Earth contact included for safe connection to earth

**Applications**


• Suitable for industrial control panels requiring sealed power entry
• Ideal for machine tools and manufacturing equipment power feeds
• Used with mobile automation units that need secure panel mounts
• Can be used for field wiring of distribution modules in plants

What materials are used for the housing to withstand workshop conditions?


The enclosure is MADE from die-cast zinc alloy, providing mechanical robustness and a metal exterior suitable for industrial environments.

How are conductors terminated within the connector?


Conductors are secured via screw terminals sized for 1–2.5mm conductors, compatible with AWG 18–14, enabling straightforward field wiring.

What cable sizes are supported by the cable gland options?


The integrated M20 metal cable gland accommodates cable diameters of 5–9mm and 6–12mm to suit common industrial cables.

What voltage and current ratings define its electrical capability?


The device is specified for 10 A current at nominal system voltages of 230/400V with a 4 kV rated impulse voltage for conductor-to-conductor stresses.

Is the connector suitable for earthed circuit installations?


Yes, it is intended for use in earthed circuits and includes a dedicated earth contact for safe earthing.

Note

Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.

Approvals

UL, CSA, SEV
