HARTING Heavy Duty Power Connector, Panel, Screw, 4 Way, 10A, Han A Male, 230V, 400 V
- RS Stock No.:
- 492-5256
- Distrelec Article No.:
- 304-00-951
- Mfr. Part No.:
- 09200042611+19200031440
- Brand:
- HARTING
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£20.80
(exc. VAT)
£24.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 905 unit(s) ready to ship
- Plus 79 unit(s) ready to ship from another location
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £20.80 |
| 10 - 24 | £19.99 |
| 25 + | £19.18 |
*price indicative
- RS Stock No.:
- 492-5256
- Distrelec Article No.:
- 304-00-951
- Mfr. Part No.:
- 09200042611+19200031440
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 4 | |
| Product Type | Heavy Duty Power Connector | |
| Current | 10A | |
| Series | Han A | |
| Connector Gender | Male | |
| Termination Type | Screw | |
| Mount Type | Panel | |
| Voltage | 230, 400V | |
| Thread Size | M20 | |
| Pole Format | 4+PE | |
| IP Rating | IP44 | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Manufacturer Size Code | 3A | |
| Maximum Operating Temperature | 125°C | |
| Orientation | Top Entry | |
| Standards/Approvals | No | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 4 | ||
Product Type Heavy Duty Power Connector | ||
Current 10A | ||
Series Han A | ||
Connector Gender Male | ||
Termination Type Screw | ||
Mount Type Panel | ||
Voltage 230, 400V | ||
Thread Size M20 | ||
Pole Format 4+PE | ||
IP Rating IP44 | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Manufacturer Size Code 3A | ||
Maximum Operating Temperature 125°C | ||
Orientation Top Entry | ||
Standards/Approvals No | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

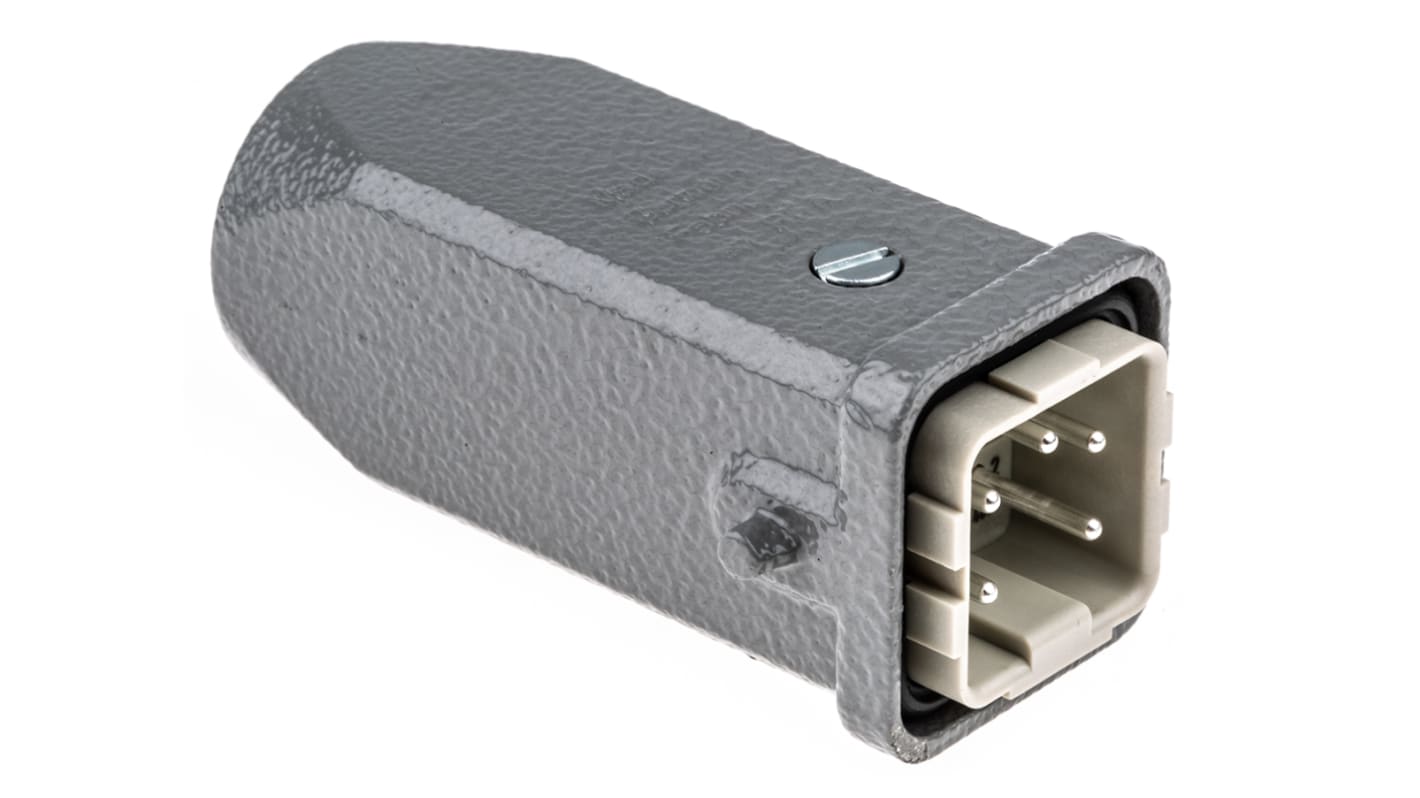

Harting HanA Series Heavy Duty Power Connector, Hood and Insert Included - 09200042611+19200031440
This heavy‑duty power connector provides a robust electrical Interface for industrial equipment, combining a protective hood with a screw‑terminated insert for secure power distribution. Designed for use in demanding automation and mechanical environments, it supports contact configurations including a protective earth and is intended for repeated mating cycles in machinery and plant installations.
Features & Benefits
• Rated for 10 A current providing dependable power delivery
• Conductor–earth voltage rating 230V enabling safe system earthing
• Screw termination with 0.75–1.5 mm² conductor range ensuring solid connections
• Silver‑plated copper contacts reducing contact resistance and wear
• Temperature tolerance −40 to +125 °C allowing use across harsh climates
• Mating durability ≥500 cycles supporting frequent connect/disconnect
• Conductor–earth voltage rating 230V enabling safe system earthing
• Screw termination with 0.75–1.5 mm² conductor range ensuring solid connections
• Silver‑plated copper contacts reducing contact resistance and wear
• Temperature tolerance −40 to +125 °C allowing use across harsh climates
• Mating durability ≥500 cycles supporting frequent connect/disconnect
**Applications**
• Suitable for power distribution to industrial control cabinets
• Ideal for connection of drive motors in production lines
• Used with field devices requiring protective earth termination
• Can be used for temporary power feeds during machine maintenance
• Suitable for integration into modular connector housings on machinery
• Ideal for connection of drive motors in production lines
• Used with field devices requiring protective earth termination
• Can be used for temporary power feeds during machine maintenance
• Suitable for integration into modular connector housings on machinery
What screwdriver sizes are recommended for secure termination?
Use slotted 0.4 x 2.5 mm, slotted 0.6 x 3.5mm or PH1 drivers to achieve the specified torque values.
How does the contact plating affect electrical performance?
The silver plating on copper‑alloy contacts lowers contact resistance and helps maintain conductivity over many mating cycles.
What environmental and flammability characteristics apply?
The insert material is polycarbonate with UL94 V‑0 flammability rating and meets limiting temperature requirements for −40 to +125 °C operation.
What insulation and impulse withstand ratings should be considered for system design?
Insulation resistance exceeds 10^10 Ω and the assembly withstands 4 kV impulse voltage for transient protection.
How are protective earth connections fastened and torqued?
The PE screw uses an M3.5 thread with 0.8 N·m tightening torque to ensure a reliable earth connection.
Note
Male and female inserts may be fitted to a hood or housing if the installation requires a reverse configuration.
Approvals
UL, CSA, SEV
