HARTING Connector Set, 6 Way, 16A, Male, Han E, 500 V

View this category
Bulk discount available

Subtotal (1 unit)*

£26.65

(exc. VAT)

£31.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 739 unit(s) ready to ship
  • Plus 181 unit(s) ready to ship from another location
  • Plus 345 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£26.65
10 - 24£25.90
25 +£25.11

*price indicative

RS Stock No.:
492-5458
Distrelec Article No.:
304-00-968
Mfr. Part No.:
09330062601+19300061540
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Number of Contacts

6

Current Rating

16A

Gender

Male

Series

Han E

Type

Connector Set

Voltage Rating

500 V

Thread Size

M20

Pole Format

6 + PE

IP Rating

IP65

Manufacturer Size Code

6 B

Body Orientation

Side Entry

Termination Method

Screw

COO (Country of Origin):
DE

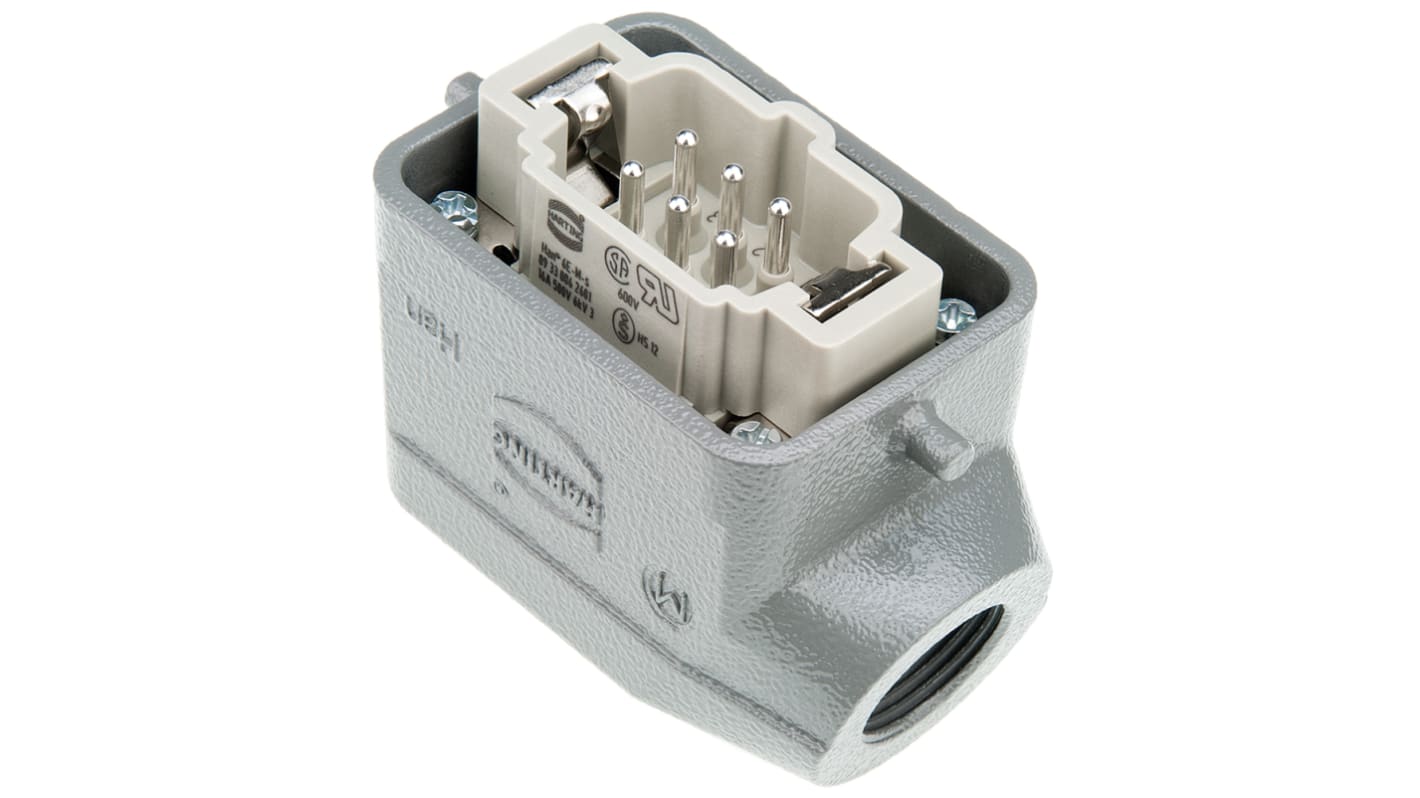

Hood Cable Plug + Male Insert


From Harting, this combination of components is part of the Han E range of Connector Assembly Packs.

Note

Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.

Approvals

UL, CSA, SEV

Connector set - Hood and Insert


This connector set includes the 09330062601 male insert screw and the 19300061540 side entry hood.

Features for the 09330062601 – Han E Male insert Screw


Screw termination from 18 AWG to 14 AWG with wire protection
6 pole male insert
Polycarbonate (PC) insert
Colour is RAL 7032 (pebble grey)
Rated to 16 A and 500 V
Mechanical working life of ≥ 500 mating cycles
Contact resistance of ≤ 1 mΩ
Size: 6 B
Conductor cross-section: 0.75 - 2.5 mm²
Material contacts - Copper alloy
Surface contacts - Silver plated
Stripping length 7.5 mm
Flammability UL 94V-0

Features for the 19300061540 – Han B Hood Side Entry


Single locking lever
Size 6 B
IP65 rating
Aluminium die cast material
Colour (hood/housing) RAL 7037 (dust grey)
Low construction

Product Application Information

Harting industrial connectors are suitable for all applications that require a safe and removable electrical connection in protected electrical areas.


Han E® Connector Assembly Packs


Two-part packs that provide towards the assembly of Harting Han E® metal-bodied cable plugs, cable coupling hoods, bulkhead/panel mounting housings, and surface mounting housing sockets. Screw terminal connection. Each pack contains a hood or housing, and male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods, and housings. All are rated at 450 – 500V, and 16A, suitable cable glands are available separately
