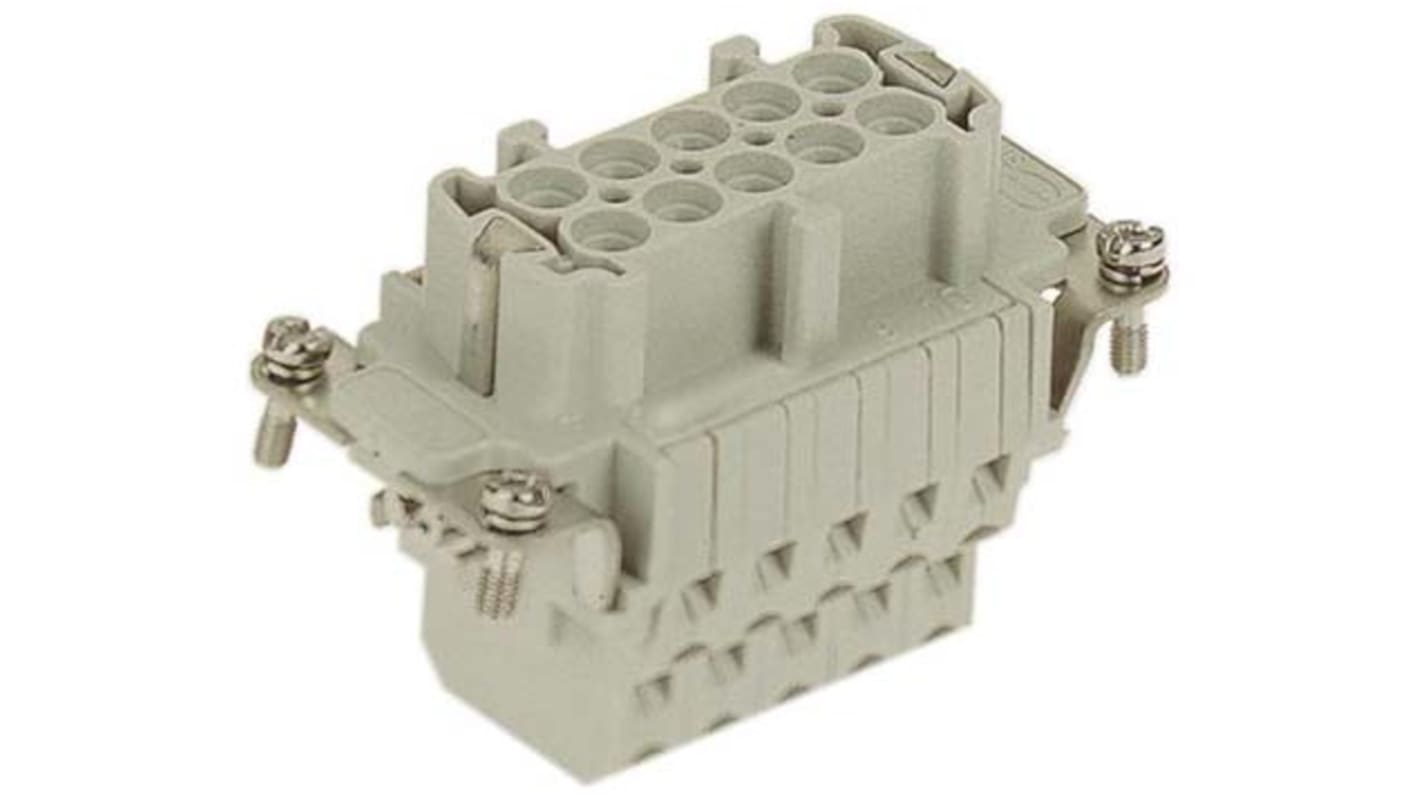

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han ESS Series, 10 Contacts

View this category
Bulk discount available

Subtotal (1 unit)*

£54.09

(exc. VAT)

£64.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 53 unit(s) ready to ship
  • Plus 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£54.09
10 - 24£51.92
25 +£49.70

*price indicative

RS Stock No.:
512-5378
Distrelec Article No.:
304-00-975
Mfr. Part No.:
09330102772
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Current Rating

16A

Gender

Female

Series

Han ESS

Type

Connector Insert

Number of Rows

2

Voltage Rating

500 V

Mounting Type

Panel Mount

IP Rating

IP65

Number of Contacts

10

Body Orientation

Straight

Han ESS double output with cage clamps


Connectors in the standard Han E series configurations but connection is made using cage clamps.
There are 2 outputs per contact allowing 2 different wires to be connected to the same point of contact on the connector (avoids adding an external terminal).
Ideal for connecting a motor, they simplify star or triangle connections.
Not for use with low profile hoods.

Approvals

  UL, CSA, SEV, BVS,
CERCHAR etc.


Han® ES 16A Cage Clamp Series


These Han® ES inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
