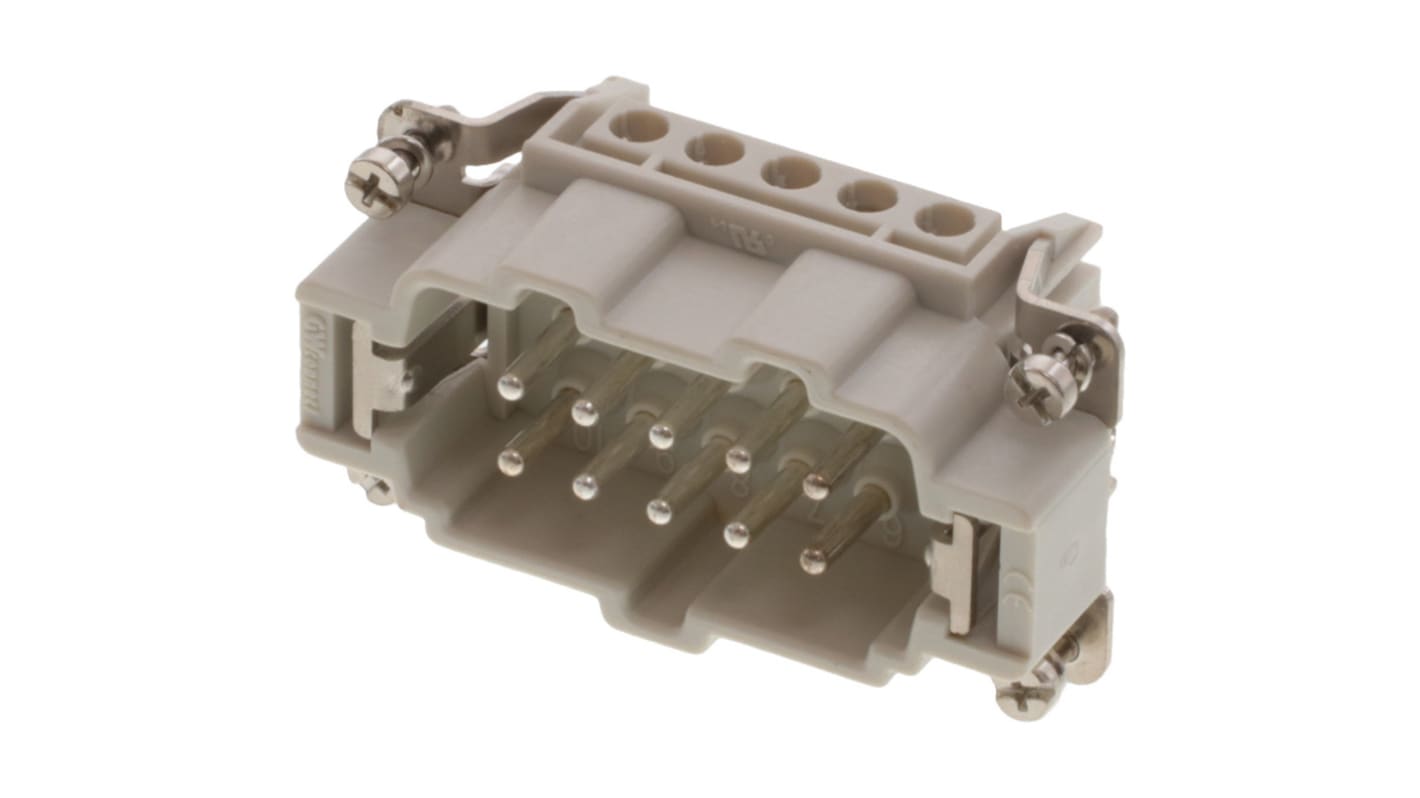

Molex Heavy Duty Power Connector Module, 16A, Male, 93601 Series, 10 Contacts
- RS Stock No.:
- 250-1944
- Mfr. Part No.:
- 936010238
- Brand:
- Molex
Subtotal (1 unit)*
£8.29
(exc. VAT)
£9.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 39 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.29 |
*price indicative
- RS Stock No.:
- 250-1944
- Mfr. Part No.:
- 936010238
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Current Rating | 16A | |
Gender | Male | |
Series | 93601 | |
Type | Screw Terminal Insert | |
For Use With | Electronic Machinery | |
Number of Contacts | 10 | |
Contact Plating | Silver | |
Contact Material | Copper Alloy | |
Select all | ||
---|---|---|
Brand Molex | ||
Current Rating 16A | ||
Gender Male | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
For Use With Electronic Machinery | ||
Number of Contacts 10 | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 500V Voltage Rating - 936010238
This heavy duty power connector Module is an essential component in industrial environments, designed for reliable electrical connections in electronic machinery. Its robust design incorporates a male screw terminal insert, facilitating a durable connection. The connector supports a current rating of 16A and operates efficiently at a voltage rating of 500V, ensuring its compatibility with a variety of applications.
Features & Benefits
• Screw terminal method ensures secure wire connections
• Accommodates wire sizes from 0.5mm² to 2.5mm²
• Silver plated contacts enhance conductivity and durability
• Designed for up to 700 mating cycles for long-term reliability
• Operates within a temperature range of -40°C to +125°C
• Compact size of 57mm x 27mm fits easily into tight spaces
• Accommodates wire sizes from 0.5mm² to 2.5mm²
• Silver plated contacts enhance conductivity and durability
• Designed for up to 700 mating cycles for long-term reliability
• Operates within a temperature range of -40°C to +125°C
• Compact size of 57mm x 27mm fits easily into tight spaces
Applications
• Used in electronic machinery requiring high current connections
• Suitable for industrial automation needing durable connectors
• Ideal for environments with fluctuating temperatures and vibrations
• Compatible with size 10B hoods and housings for secure installations
• Suitable for industrial automation needing durable connectors
• Ideal for environments with fluctuating temperatures and vibrations
• Compatible with size 10B hoods and housings for secure installations
What is the compatible wire gauge range for this connector?
The connector accommodates wire sizes ranging from 0.5mm² to 2.5mm², making it versatile for various applications.
How does the silver plating affect the performance?
Silver plating enhances the electrical conductivity of the contacts, improving performance and reducing the potential for corrosion over time.
What is the significance of the connectors operating temperature range?
The operating range of -40°C to +125°C ensures reliable performance in extreme temperature conditions, which is crucial for industrial applications.
Can this connector withstand repeated use over time?
Yes, it is designed for up to 700 mating cycles, providing durability and long-term reliability in regular use.
